| Quantity: | |
|---|---|
151F0536
Xeriwell or Others
| Type: | Hydraulic Bearingless Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | Bmss 100 | Replace: | DANFOSS OMSS |
| Shaft: | 12 Teeth Spline Shaft | Oil Port: | G1/4 |
| Drain : | G1/2 | Application: | Scissors Platform Drive Motor |
| Highlight: | No Output Shaft Danfoss Hydraulic Motor,Danfoss Hydraulic Motor 151F0536,OMSS 100 Danfoss Motor | ||

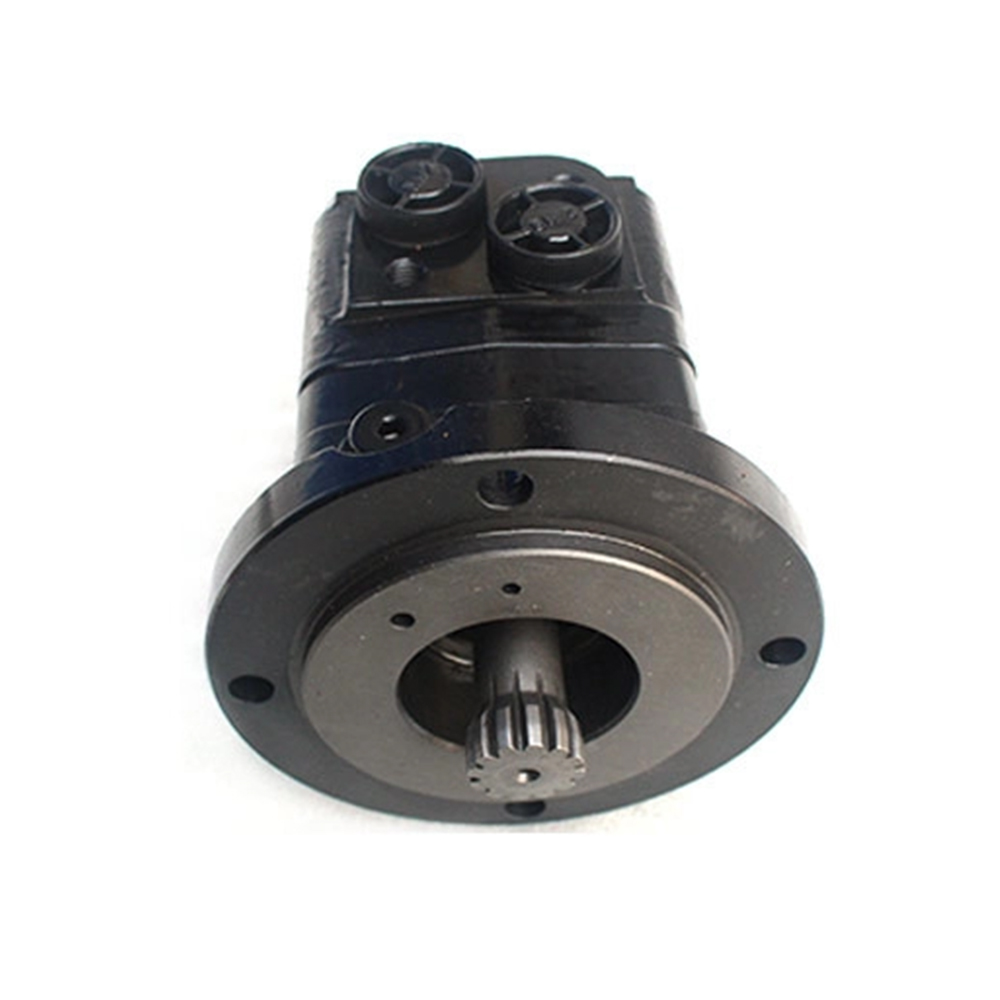

Danfoss No Output Shaft Motor 151F0536 Short Engine OMSS 100
Splined shaft 12 spline 12/24 (Ø27.6mm)
Flange 4 bolt Ø125 - centring Ø99.9mm
Lateral port 1/2 BSP -
Drain port 1/4BSP
Danfoss 151F0535
151F0536
151F5037
151F0538
151F0539
151F0540
151F0541
| Type | BMSYS 80 | BMSYS 100 | BMSYS 125 | BMSYS 160 | BMSYS 200 | BMSYS 250 | BMSYS 315 | BMSYS 400 | BMSYS 475 | ||
| Displacement (cc/rev) | 80.6 | 100.8 | 125 | 154 | 194 | 243 | 311 | 394 | 475 | ||
| Max speed rate (rpm) | cont | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 | |
| int | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | ||
| Max torque (N.m) | cont | 225 | 290 | 365 | 485 | 586 | 708 | 880 | 880 | 910 | |
| int | 250 | 320 | 400 | 540 | 645 | 806 | 960 | 960 | 960 | ||
| Max output (KW) | cont | 16 | 18 | 18 | 18.1 | 18.1 | 18 | 17 | 11 | 9 | |
| int | 20 | 22 | 23 | 24 | 24 | 23.8 | 20.2 | 12 | 11 | ||
| Max pressure Drop(Mpa) | cont | 20.5 | 20.5 | 20.5 | 21 | 21 | 20 | 20 | 16 | 14 | |
| int | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 17.5 | 15 | ||
| Max.flow (L/min) | cont | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| int | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | ||
| Weight(kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.2 | 14.3 | ||
Xeriwell profssion supply all series hydraulic motors like OMM/OMP/DH/OMR/DS/OZ/OK/OMH/OMS
/OMT/OMV hydraulic orbit motor
Parker hydraulic motor
White hydraulic motor
Eaton hydrualic motor
M+S hydraulic motor
