104-1025-006
Xeriwell or Others

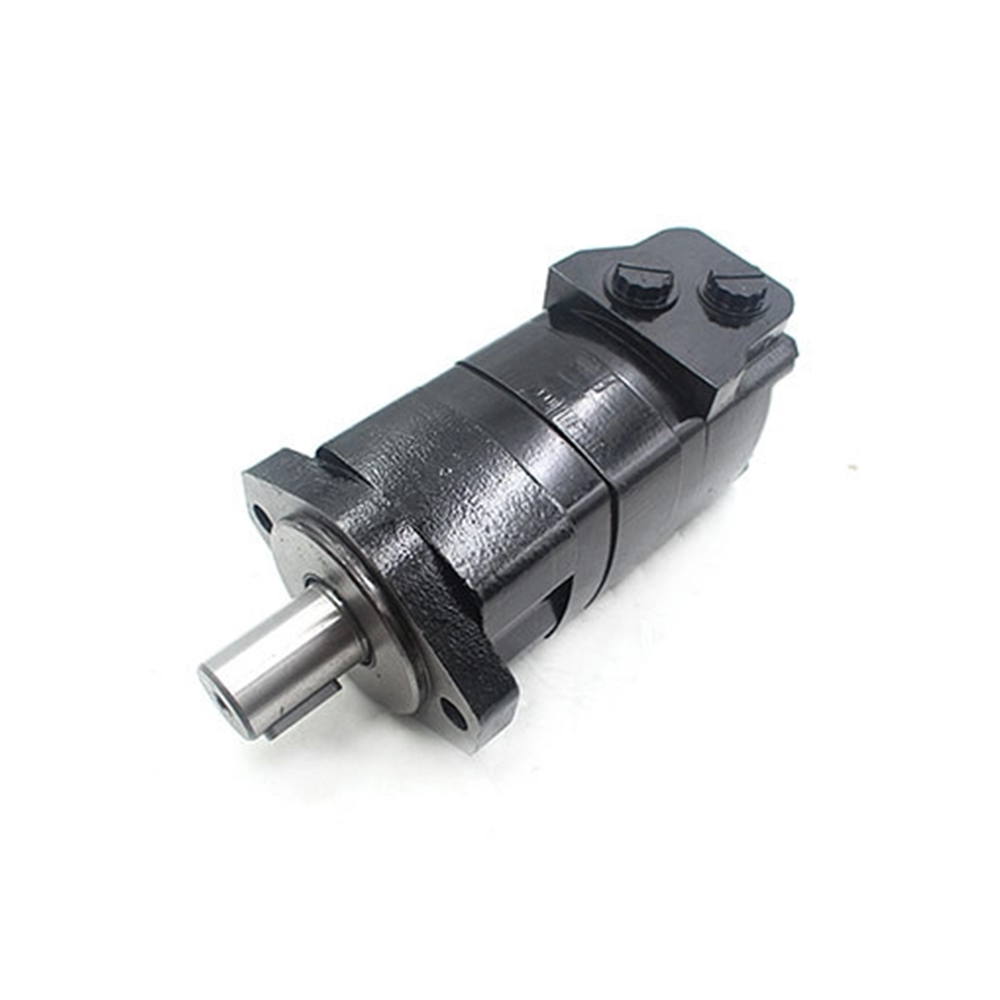

| Item: | Charlynn 2000 Motor | Model: | 104-1025-006 |
|---|---|---|---|
| Fastening: | STANDARD, 2 BOLT | Displacement: | 160 CM3/R |
| Shaft: | 31.75mm Key Shaft | Port: | 7/8-14 UNF-2B SAE O-RING PORTS |
| Highlight: | charlynn Hydraulic Motor 2000 series,charlynn Hydraulic Motor 104-1025-006,31.75mm key shaft char lynn motor | ||
| DISPLACEMENT | 160CC |
| SERIES | 2000 Series |
| PORT LOCATION | Side Port, Staggered |
| SHAFT TYPE | 31.75 [1.250] DIA. STRAIGHT SHAFT WITH .375-16UNC-2B THREAD IN END, 7.938 [.3125] SQ X 31.75 [1.250] STRAIGHT KEY |
| DRAIN | 7/16-20unf |
| MAXIMUM SPEED @ CONTINUOUS FLOW | 477 rpm/713rpm |
| FLOW RATE | 75l/min |
| RPM [MAX] | 713rpm |
| DUTY | Standard-Duty |
| GEROTER/GEROLER OPTIONS | Standard |
| MOUNTING TYPE | STANDARD, 2 BOLT; 82.6 [3.25] PILOT DIA. 13.59 [.535] DIA. HOLES ON 106.4 [4.19] DIA. BOLT CIRCLE. SAE A |
| PORT SIZE | 7/8-14 UNF-2B SAE O-RING PORTS |
| MOTOR TYPE | Disc Valve |
Applications
• Swing motor
• Brush Cutters & mowers
• Harvesting equipment
• Directional boring
• Turf equipment
• Skid Steer loaders
• Fairway mowers
• Harvesters
• Mowing
• Snow removal
• Sprayers
• Trencher
• Wood products
• Grinders and mixers
• Forestry equipment
• Irrigation reels
Xeriwell technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China
we have the most completely range of them, matching Danfoss/M+S/Charlynn/White/Parker... with fast leading time, excellent price
and best service. our aim is to make your hydraulic system is easy and affordable!
