| Quantity: | |
|---|---|
BMP/OMP Motors
Xeriwell or Others
| Features: | High Pressure Oil Seal | Displacement: | 50cc - 500cc |
|---|---|---|---|
| Max Speed: | Cont.1500-200rpm | Max Torque: | Cont.55-385N.M |
| Max Pressure Drop: | Cont.6-12.5mpa | Max Flow: | Cont.55-60l/min |
| Highlight: | 500cc hydraulic torque motor,36cc hydraulic torque motor,Mobile Hopper hydraulic torque motor | ||
mobile hopper hydraulic system hydraulic orbital motor BMP OMP hydraulic drive

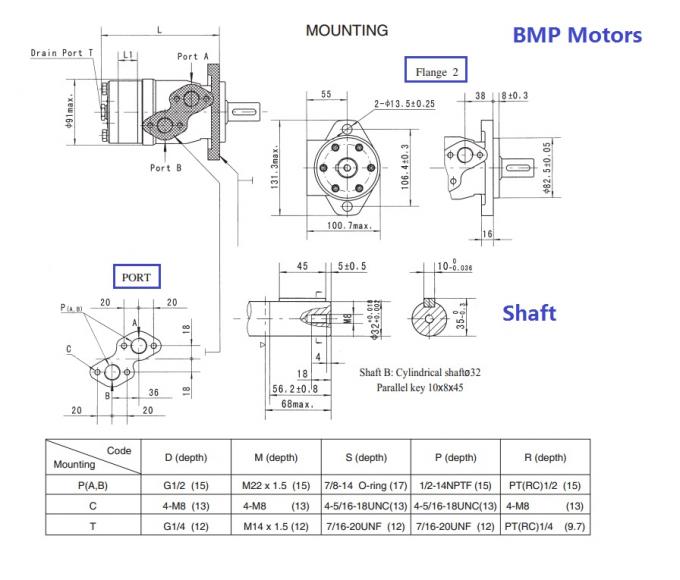

| MOUNTING DIMENSIONS OF BMP HYDRAULIC ORBIT MOTOR | |||
| Displacement | OMP36, OMP50, OMP80, OMP100, OMP125, OMP160, OMP200, OMP250, OMP315, OMP400,OMP500 | ||
| Shaft | Cylindrical Shaft Ø25, Ø25.4, Ø31.75,Ø32,SAE 6B,Splined 14-DP12/24 | ||
| Ports | G1/2 Manifold 4-M8, G1/4. 7/8-14 O-ring manifold 4x5/16-18UNC,7/16-20UNF;1/2-14NPTF manifold 4x5/16-18UNC,7/16-20UNF | ||
| Flange | 2-Ø13.5 Rhomb-flange pilot Ø82.5x8, 4-3/8-16 Square-flange, pilot Ø44.4x2.8 | ||
| Applications | harvesters,drilling rig,winch,fishing net machines,hoppers | ||
| Warranty | One year | ||
► Characteristic Features
Hydraulic Motor BMP same as OMP and M+S MP Motors
1. Low pressure of start up, provide smooth reliable operation and high efficiency.
2. Special design in the driver-linker and prolong operating life.
3. Compact volume and easy installation.
4. High pressure oil seals
5. The output shaft with the deep groove ball bearing, can bear certain axial force and radial force.
► Specification
BMP / OMP Motors
| Type | BMP 36 | BMP 50 | BMP 80 | BMP 100 | BMP 125 | BMP 160 | BMP 200 | BMP 250 | BMP 315 | BMP 400 | BMP 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
► Application
Hydraulic Motor BMP Used For Agricultural forestry and orchard equipment
1. Vineyard Sweeper
2. Pruning Sweeper
3. Agricultural and forest machinery
4. Shovels
5. Garden seeders
6. Sickles
7. Grape scissors
8. Secateurs
9. High wheel cultivators
| Features: | High Pressure Oil Seal | Displacement: | 50cc - 500cc |
|---|---|---|---|
| Max Speed: | Cont.1500-200rpm | Max Torque: | Cont.55-385N.M |
| Max Pressure Drop: | Cont.6-12.5mpa | Max Flow: | Cont.55-60l/min |
| Highlight: | 500cc hydraulic torque motor,36cc hydraulic torque motor,Mobile Hopper hydraulic torque motor | ||
mobile hopper hydraulic system hydraulic orbital motor BMP OMP hydraulic drive
| MOUNTING DIMENSIONS OF BMP HYDRAULIC ORBIT MOTOR | |||
| Displacement | OMP36, OMP50, OMP80, OMP100, OMP125, OMP160, OMP200, OMP250, OMP315, OMP400,OMP500 | ||
| Shaft | Cylindrical Shaft Ø25, Ø25.4, Ø31.75,Ø32,SAE 6B,Splined 14-DP12/24 | ||
| Ports | G1/2 Manifold 4-M8, G1/4. 7/8-14 O-ring manifold 4x5/16-18UNC,7/16-20UNF;1/2-14NPTF manifold 4x5/16-18UNC,7/16-20UNF | ||
| Flange | 2-Ø13.5 Rhomb-flange pilot Ø82.5x8, 4-3/8-16 Square-flange, pilot Ø44.4x2.8 | ||
| Applications | harvesters,drilling rig,winch,fishing net machines,hoppers | ||
| Warranty | One year | ||
► Characteristic Features
Hydraulic Motor BMP same as OMP and M+S MP Motors
1. Low pressure of start up, provide smooth reliable operation and high efficiency.
2. Special design in the driver-linker and prolong operating life.
3. Compact volume and easy installation.
4. High pressure oil seals
5. The output shaft with the deep groove ball bearing, can bear certain axial force and radial force.
► Specification
BMP / OMP Motors
| Type | BMP 36 | BMP 50 | BMP 80 | BMP 100 | BMP 125 | BMP 160 | BMP 200 | BMP 250 | BMP 315 | BMP 400 | BMP 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
► Application
Hydraulic Motor BMP Used For Agricultural forestry and orchard equipment
1. Vineyard Sweeper
2. Pruning Sweeper
3. Agricultural and forest machinery
4. Shovels
5. Garden seeders
6. Sickles
7. Grape scissors
8. Secateurs
9. High wheel cultivators
