| Quantity: | |
|---|---|
BMH
Xeriwell or Others
| Product: | Hydraulic Gertor Motor | Displacement: | 500CC |
|---|---|---|---|
| Max.Speed(rpm): | Cont.155rpm/int.160rpm | Max.Torque(N.m): | Cont.830N.m/int.1040N.m |
| Max. Pressure Drop: | Cont.12.5MPa/int.16MPa | Max.flow(L/min): | Cont.75L/min~int.90L/min |
| Highlight: | 500CC Hydraulic Gertor Motor,160rpm Hydraulic Gertor Motor | ||

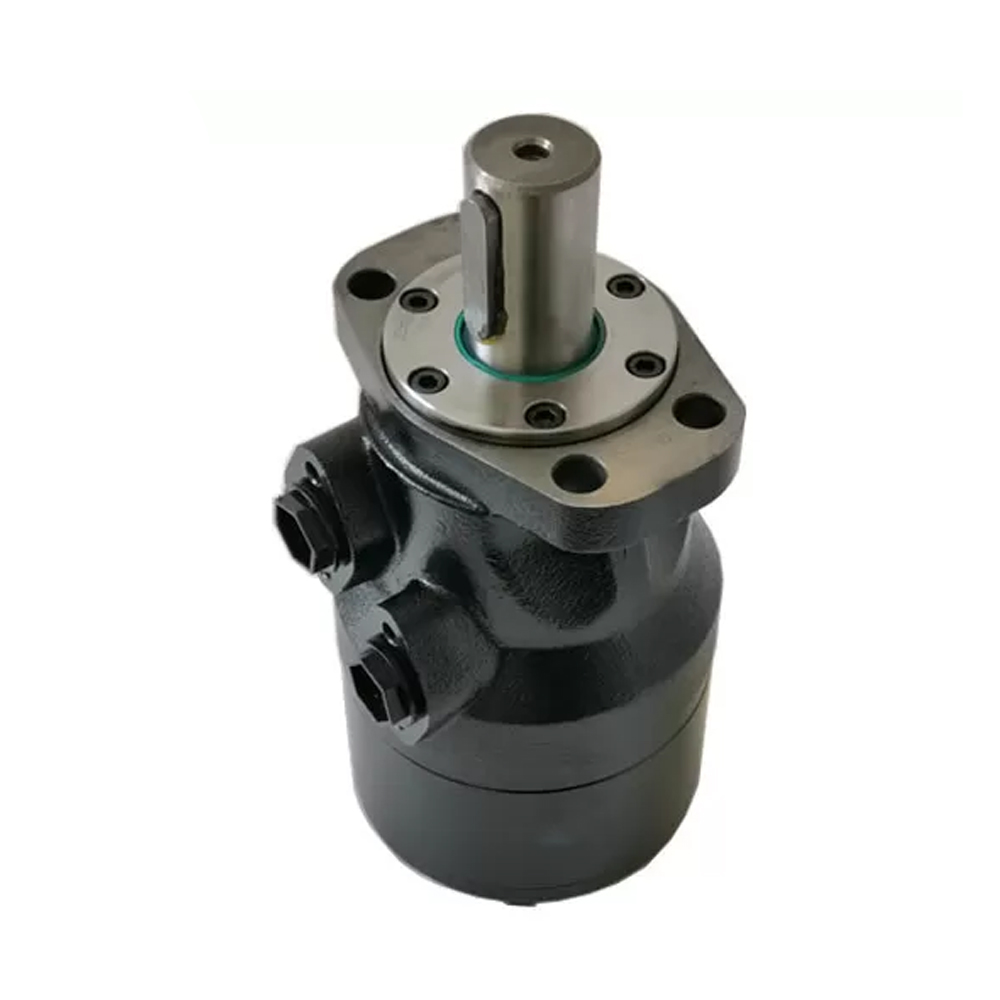

MLHH 500 SCHWING Concrete Pump Spare Parts hydraulic gerolor gear motor
MS500 HYDRAULIC ORBIT MOTOR
BMH motor have widely usages, like concrete pump, harvester, sweeper, forklift truck, etc.
BMH500 specificalized in using for concrete concrete pump,such as the following :
Cifa, Junjin, Putzmeister, Schwing, Sebhsa, Sermac, MercedesBenz, Iveco, , Scania and .
Features:
* The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
* Special design in the driver-linker and prolong operating life.
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation.
Main Specifications:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
