| Quantity: | |
|---|---|
109S
Xeriwell or Others
| Features: | Match Than ,M+S Hydraulic Steering Units | Product Name: | Tractor Hydraulic Steering Valves |
|---|---|---|---|
| Brand: | Xeriwell | Displacement: | 20cc -80cc |
| Application: | Mini Forklift,mini Tractors,agricultural Machinery | Model Number: | 109s-50 |
| Highlight: | hydraulic steering control unit,hydraulic steering pump | ||
hydraulic steering units mini tractors orbitrol steering pump OSPM 50 150L2150 Lawn mower pump

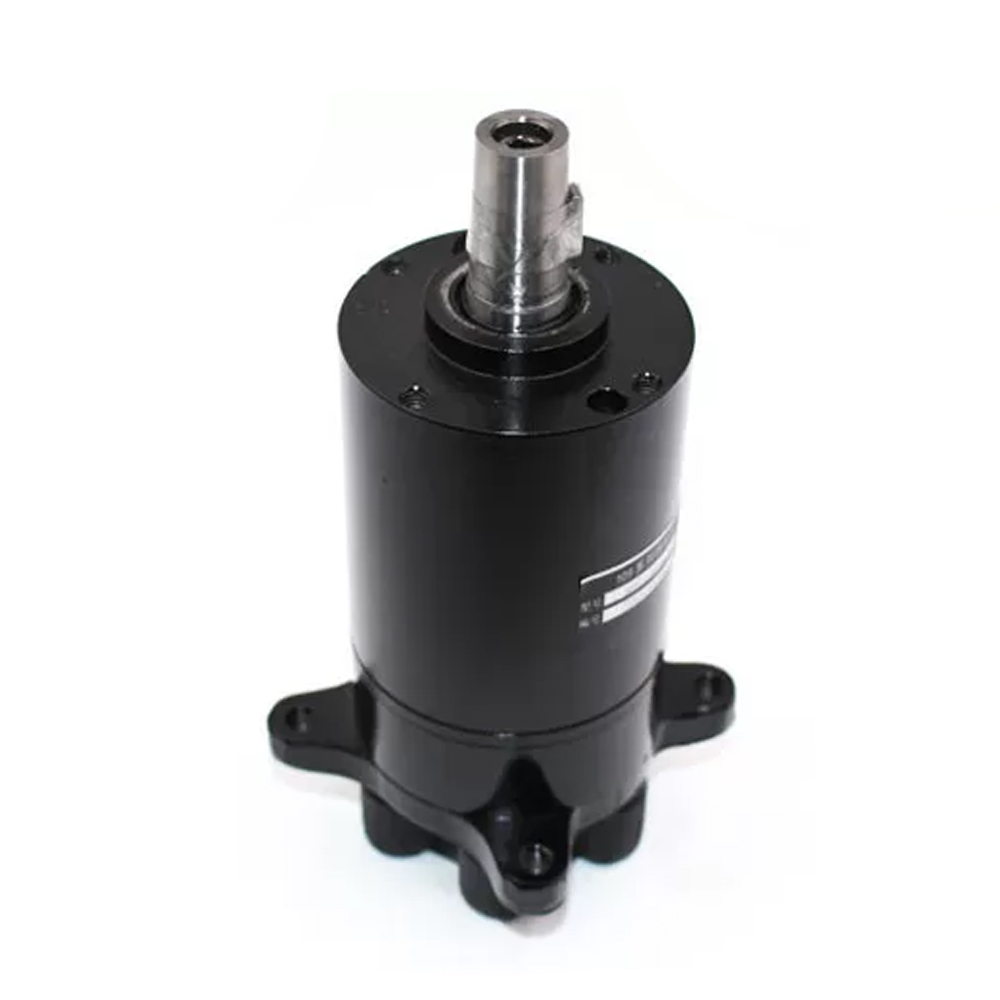

109 series hydraulic steering unit is an integrated orbital steering unit with 4/5 tooth structure.This kind of steering unit has a small and exquisite structure with integrated check valve, relief valve and shock valves and its mounting dimension conforms to international standard.This kind of steering unit is widely used in mini vehicles, such as mini forklift, mini tractor (and other agricultural machinery), mini earthmoving machinery,mini municipal vehicle, etc. It can obtain more steering output torque through input of less power, with features of easy, flexible and reliable operation.
1. Characteristic Features
1) We are professional manufacturer produce Hydraulic steering units .
2) Quality match than , M+S, Eaton.
3) Match than OEM spare parts code number.
4) Application mini tractors,small tractors,lawn mower
2. Products details
| type | 109 series |
| displacement | 50cc |
| function | open center reaction |
| iinput shaft | Tapered 1:20 key 5x6.5 |
| ports | 9/16-18UNF |
If you need other type steering units or details, please contact me and send your product details to me.
3. Specification
| Parameters | Type 109*-1-***-**-* | |||||
| Displacement(mL/r) | 20 | 32 | 40 | 50 | 63 | 80 |
| Rated flow(L/min) | 3~20 | |||||
| Rated Pressure(MPa) | 12.5 | |||||
| Relief Valve Pressure Settings(MPa) | 06,07,08,09,10 | |||||
| Shock Valves Pressure Settings(MPa) | 12,13,14,15,16 | |||||
| Steering Torque(N·m) | ≤1.8 | |||||
| Max．Cont．Preesure in Line T-PT(MPa) | 1 | |||||
| Dimension L(mm) | 87 | 92 | 96 | 100 | 105 | 113 |
