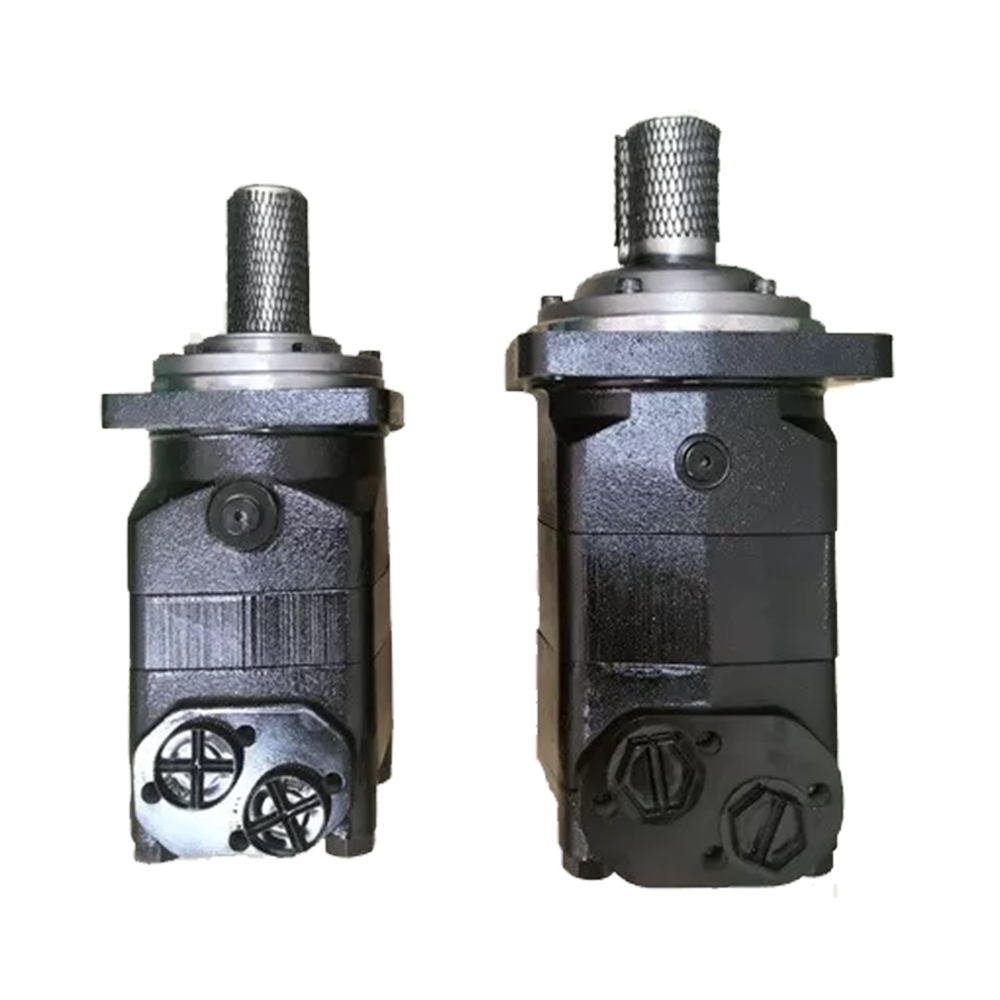

Mine Heavy Industry Hydraulic Components OMT500 , OMV800 Hydraulic Motors

Pictures are for display only, please contact us to choose the right product for you.

Features:	High Pressure Oil Seal	Product Name:	Hydraulic Orbital Motor
Brand Name:	Xeriwell	Model Number:	Xeriwell BMT, BMV Series
Displacement:	160cc--1000cc	Application:	Mine Heavy Equipment Hydraulics
Highlight:	slow speed high torque motor , omt hydraulic motor

Mine Heavy Industry Hydraulic Components OMT500 , OMV800 Hydraulic Motors

We are professional manufacturer produce Hydraulic Orbital Motors.

Xeriwell Hydraulic Motors match than ,M+S and Brevini hydraulic motors.

1. Characteristic Features

• High starting torque

• High pressure oil seals

• Low Speed High Torque

2. Specification

BMT :

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Geometric displacement (cm3 /rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N·m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

BMV :

Type		BMV 315	BMV 400	BMV 500	BMV 630	BMV 800	BMV 1000
Geometric displacement (cm3 /rev.)		333	419	518	666	801	990
Max. speed (rpm)	cont.	510	500	400	320	250	200
Max. speed (rpm)	int.	630	600	480	380	300	240
Max. torque (N·m)	cont.	920	1180	1460	1660	1880	2015
	int.	1110	1410	1760	1940	2110	2280
	peak	1290	1640	2050	2210	2470	2400
Max. output (kW)	cont.	38	47	47	40	33	28.6
Max. output (kW)	int.	46	56	56	56	44	40
Max. pressure drop (MPa)	cont.	20	20	20	18	16	14
	int.	24	24	24	21	18	16
	peak	28	28	28	24	21	18
Max. flow (L/min)	cont.	160	200	200	200	200	200
Max. flow (L/min)	int.	200	240	240	240	240	240

3. Application

• Cone Splitter

• Excavator Splitter

• Drilling Machine

• Mining Equipment

• Geological exploration

• Heavy equipment

• Forestry machinery

Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
