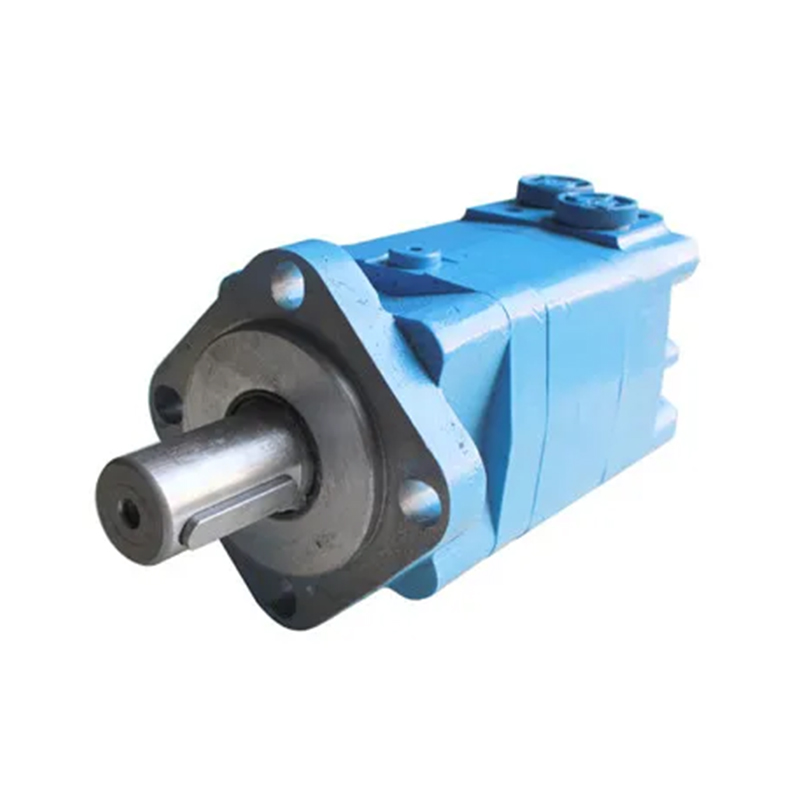

MSY 200 KP/3 Hydraulic Motor, 35mm Tapered Shaft, SAE‑A 4‑Bolt Mount, 1/2" & 1/4" BSPP Ports

You are here: Home » Products » Hydraulic Motor » Ungrouped » MSY 200 KP/3 Hydraulic Motor, 35mm Tapered Shaft, SAE‑A 4‑Bolt Mount, 1/2" & 1/4" BSPP Ports

MSY 200 KP/3 Hydraulic Motor, 35mm Tapered Shaft, SAE‑A 4‑Bolt Mount, 1/2" & 1/4" BSPP Ports

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMSY200
Brand:
Xeriwell or Others

Product Description

Features:

M+S Hydraulic Motor Interchange

Product:

Small Winch Motor

Model No.:

BMSY

Size:

200ml/rev

Highlight:

high power hydraulic motor

two speed hydraulic motor

MSY 200 KP /3, Shaft 1.1/4" Straight Keyed,Mount SAE A 4 Hole,Ports 1/2" BSPP 1/4" BSPP

MSY 200 KP /3 = BMSY 200

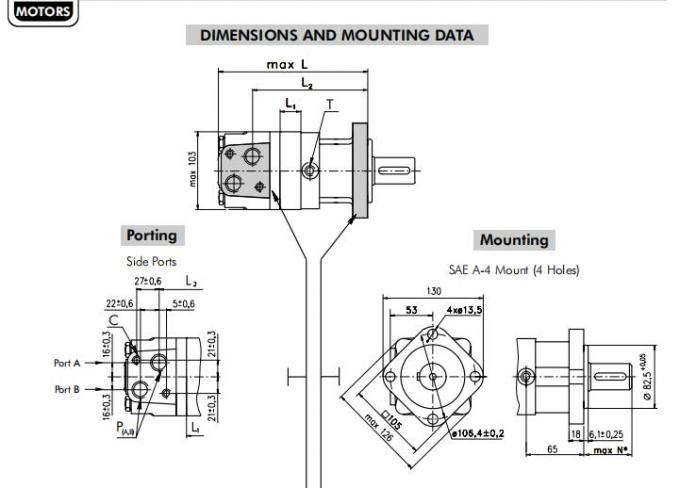

Mounting Flange: SAE A-4 mount, four holes

Port type:Side ports

Displacement:200,0 [cm /rev]

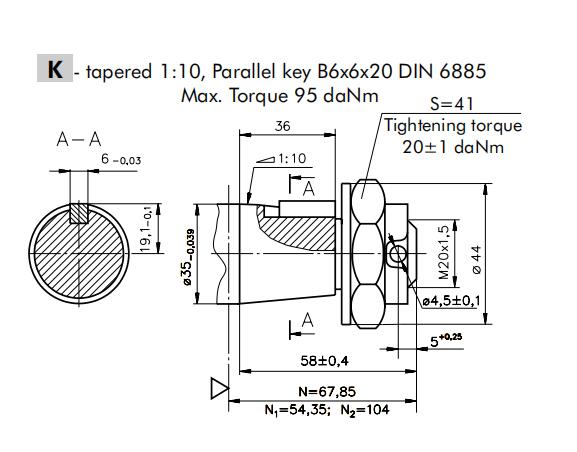

Shaft Extensions:ø35 tapered 1:10, Parallel key B6x6x20 DIN6885

Ports:1/2" BSPP

: 1/4" BSPP

Quick details:

1, BMSY is an upgraded hydraulic motor of BMS series

2, BMSY is an alternative hydraulic motor of OMS, Eaton 2k, M+S MS

3, BMSY is now the most suitable replacement motor for , Eaton, M+S with super performance, however very much more favarable price than originals or OEM parts you may found on original machines

Main Specifications:

Type		BMSY BMSYE 80	BMSY BMSYE 100	BMSY BMSYE 125	BMSY BMSYE 160	BMSY BMSYE 200	BMSY BMSYE 250	BMSY BMSYE 315	BMSY BMSYE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	185
Max. speed (rpm)	int.	988	900	720	560	450	360	280	225
Max. torque (N·m)	cont.	225	290	365	485	586	708	880	880
	int.	305	390	480	590	705	860	1000	980

Max. output (kW)	cont.	16	18	18	18.1	18.1	18	17	11
Max. output (kW)	int.	20	22	23	25	24	23.8	20.2	12
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Xeriwell is the supplier of Orbital Motors. We offer various solutions, applications and types of motors adapted to your requirements.

The displacements are variable between 8 cc/rev to 985 cc/rev. The speed range varies from 1380 rpm for the smallest motors to 300 rpm for the bigger types. The maximum operating torques are variable between 9,3daNm and 182daNm. Our motors are interchangeables with motors supplied by best known manufacturers. We offer the best price / performance ratios on the market and have short delivery supplies.

BMSY indroduction:

BMSY new series motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
