MS Hydraulic Motors HPQ400 High Speed Low Torque Motor MLHPQ400 Omh

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMPH / Char Lynn H Series
Brand:
Xeriwell or Others

Product Description

Features:	High Pressure	Product Name:	BMPH400
Flnge:	4 Flange	Shaft Size:	25.4mm/1inch
Max Speed:	Cont155/int.190 Rpm	Max Torque:	Cont.360/int.525N.m
Highlight:	MS Hydraulic Motors , BMPH400 Motor

MS Hydraulic motor HPQ400 high speed low torque motor MLHPQ hydraulic spool valve gerotor

Product details:

type	BMPH
displacement4	400cc

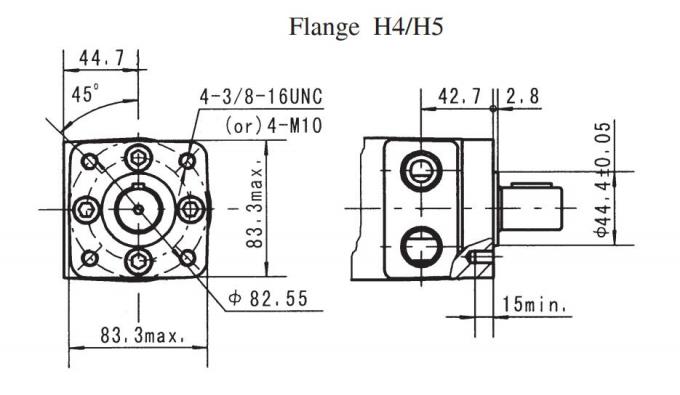

flange:	4-3/8-16 Square-flange , pilot Ø 44.4 2.8
shaft	Shaft Ø25.4, spline key
oil port	7/8-14 O-ring

Designed for medium duty applications, these motors use industry-proven spool valve technology combined with state-of-the-art gerotors. In addition, a wide variety of mounting flanges, shafts, Ports and valving options provide design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor, and equipment can be driven direct, eliminating costly mechanical components.

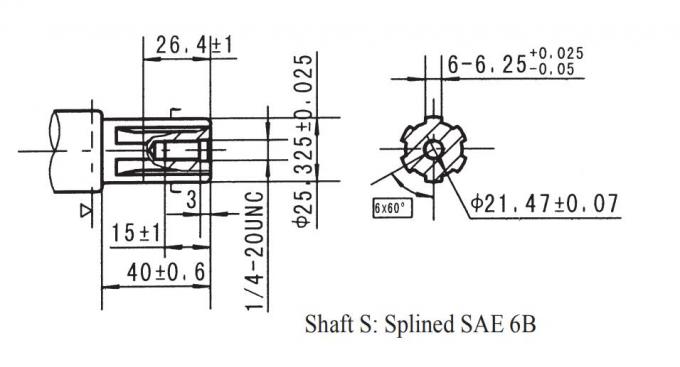

Featuring a 1"diameter SEA 6B spline shaft with dual rotation. For light and medium duty applications. Good replacement for Char-Lynn “H” series.

Specification:

Type		BMPH 36	BMPH 50	BMPH 80	BMPH 100	BMPH 125	BMPH 160	BMPH 200	BMPH 250	BMPH 315	BMPH 400	BMPH 500
Geometric displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	460	475	490	430
	int.	76	128	186	227	290	370	440	570	555	580	560
	peak	96	148	218	264	360	434	540	670	840	840	780
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	6
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	7
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	14	12	9.5	7
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	17.5	14	11.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	13
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8

We are professional manufacturer produce Hydraulic Orbital Motors, we have the most complete range of hydraulic motors.

interchangable in Char Lynn and M+S and Brevini motor series,we will supply our expert knowledge of hydraulic systems

help you to solve hydraulic problems.
