| Quantity: | |
|---|---|
BMP
Xeriwell or Others
| Type: | Orbit Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMP | Displacement: | 50ml/r - 500ml/r |
| Speed: | 150 Rpm - 1650 Rpm | Torque: | 96 N.m - 840 N.m |
| Power: | 7.0 Kw - 11.5 Kw | Flow: | 55 L/min - 75 L/min |
| Pressure Drop: | 7 MPa - 22.5 MPa | ||
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

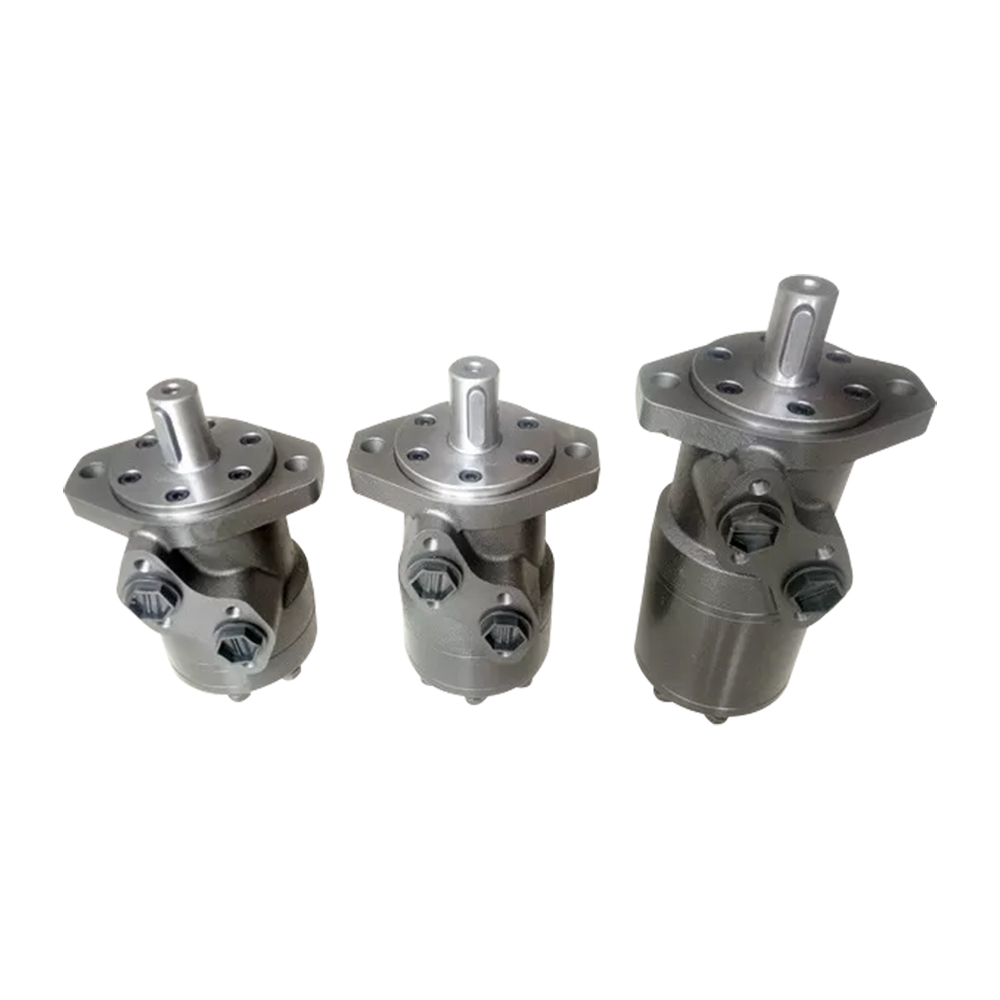

Orbital motor BMP VERION replace gerotor
This motor is one special type motor to replace VERION BMP series.
This motor is one special type motor to replace LIVENZA BMP series.
This motor is one special type motor to replace Eaton H series.
This motor is one special type motor to replace OMP series.
Motor: BMP series
Specifications:
motor BMP
displacement 50ml/r - 500ml/r
Speed 150 rpm - 1650 rpm
Torque 96 N.m - 840 N.m
Power 7.0 kw - 11.5 kw
Flow 55 l/min - 75 l/min
BMP is a basic orbit motor with China tope quality and stable performance.
Apply to all all automation and motion control applications.
Alternative with OMP, Eaton Char Lynn H series, M+S MP series, and other makes from Euro.
Advantages:
Low pressure start;
Reinforced shaft seal;
High startup torque and ability to withstand significant back pressures;
The ability to transfer axial and radial loads ;
Compact volume and easy installation.
Company introduction:
Model Crossing:
Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | BOSCH RECROTH | |
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
| Type: | Orbit Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMP | Displacement: | 50ml/r - 500ml/r |
| Speed: | 150 Rpm - 1650 Rpm | Torque: | 96 N.m - 840 N.m |
| Power: | 7.0 Kw - 11.5 Kw | Flow: | 55 L/min - 75 L/min |
| Pressure Drop: | 7 MPa - 22.5 MPa | ||
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||
Orbital motor BMP VERION replace gerotor
This motor is one special type motor to replace VERION BMP series.
This motor is one special type motor to replace LIVENZA BMP series.
This motor is one special type motor to replace Eaton H series.
This motor is one special type motor to replace OMP series.
Motor: BMP series
Specifications:
motor BMP
displacement 50ml/r - 500ml/r
Speed 150 rpm - 1650 rpm
Torque 96 N.m - 840 N.m
Power 7.0 kw - 11.5 kw
Flow 55 l/min - 75 l/min
BMP is a basic orbit motor with China tope quality and stable performance.
Apply to all all automation and motion control applications.
Alternative with OMP, Eaton Char Lynn H series, M+S MP series, and other makes from Euro.
Advantages:
Low pressure start;
Reinforced shaft seal;
High startup torque and ability to withstand significant back pressures;
The ability to transfer axial and radial loads ;
Compact volume and easy installation.
Company introduction:
Model Crossing:
Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | BOSCH RECROTH | |
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| Main Specifications: |
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
