BMER-4-375-WS-T4-FYD
Xeriwell or Others

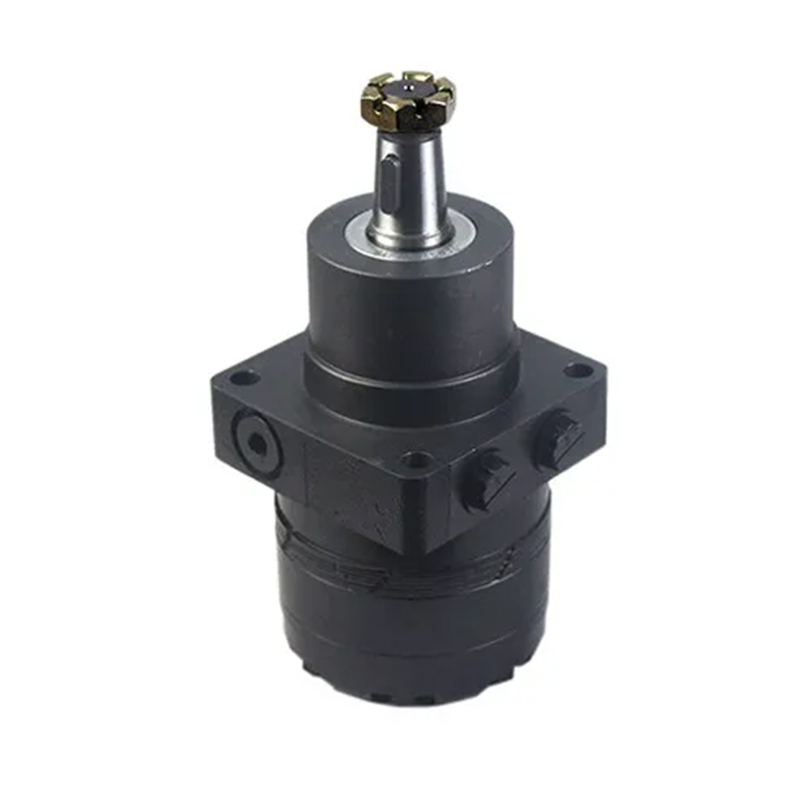

| Product: | Hydraulic Motor | Model No.: | BMER-4-375-WS-T4-FYD |
|---|---|---|---|
| Size: | 375 Ml/r | Flange: | Wheel Mount |
| Shaft: | 31.75mm | Feature: | With Valve Cavacity On Flange, No Relieve Valve Inside |
| Highlight: | parker tg hydraulic motor low rpm,iso hydraulic motor low rpm | ||
Parker TG series replacement motor with valve cavacity from China manufacturer Xeriwell
Quick review:
Xeriwell BMER = Parker TG
This BMER motor features selectable valve chamber in flange position
The valve chamber of ParkerTG motor is under the motor, while Xeriwell's design is at the flange position
Compatible with Parker TG valve chamber function in terms of performance
More compact and concise in design
Better cost control from a cost perspective
This motor is suitable for customers who pursue quality without paying too much for brand premiums.
If you are an OEM, this motor can help you obtain the necessary performance while saving unnecessary expenses.
If you are a hydraulic motor importer, this motor can complement the shortcomings of your existing products, provide your customers with another choice, demonstrate your professionalism in the field of hydraulic motors, and meet the needs of your target customer groups.
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
More BMER series to match Parker TF series
More Parker replacement motor available:
TE
TB
TC
TF
TG
TJ
TK
