| Quantity: | |
|---|---|
BMT
Xeriwell or Others
| Features: | Same As Eaton-charlynn 6000 Series | Products Name: | Hydraulic Orbital Motor |
|---|---|---|---|
| Shaft: | 40mm | Displacement: | 160cc-800cc |
| Warranty: | 12-18 Months | OEM: | Available |
| Highlight: | orbital hydraulic motor,hydraulic rotary motor | ||

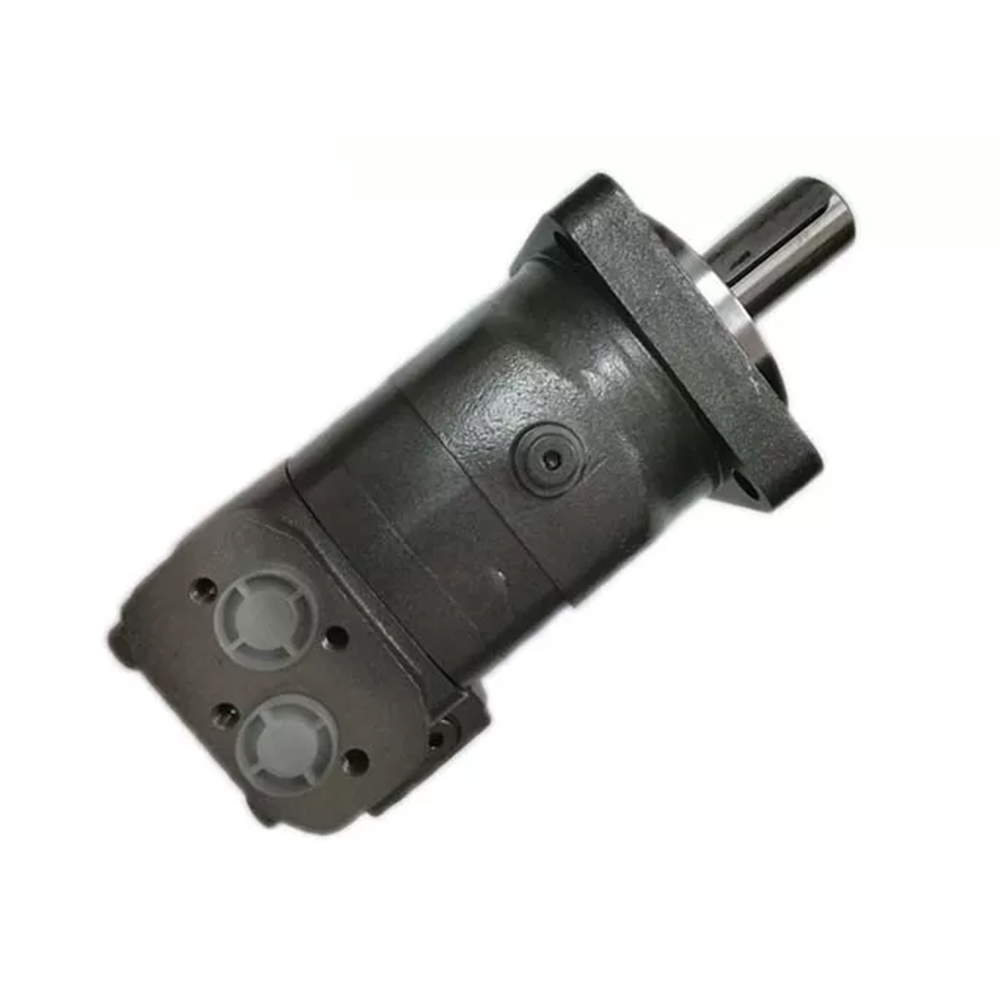

Hydraulic Factory Supply Low Speed High Torque Genuine Metaris Orbital Motor 6000 Series
Introduction:
Xeriwell disc valve motors allow higher flows and higher pressures than spool valve motors, resulting in higher torques and efficiencies. All are available in standard mount, wheel mount, or bearingless configurations with many shaft and port options and speed sensors to meet a broad range of application requirements. Eaton disc valve motors deliver unrivalled quality and are supported by manufacturing systems that ensure on time delivery.
Features:
Variety of displacements, mounts, shafts and options to meet the customer's needs
Side load up to 4000 lbs
Can be used in multiple industries
Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| BMTE230 | 238.5 | 12 | 164.5 |
| BMTE250 | 240.5 | 14 | 166.5 |
| BMTE315 | 246.5 | 20 | 172.5 |
| BMTE400 | 253.5 | 27 | 179.5 |
| BMTE500 | 261.5 | 35 | 187.5 |
| BMTE630 | 273.5 | 47 | 199.5 |
| BMTE800 | 284.5 | 58 | 210.5 |
| Note:1)The data for the port of SF (SF5 and SF6and sf7 ) 2)The data for the port of SE (SE1 and SE2) and flange WE L-70 and L2-59. 3)The thickness of the stator and rotor for disp,from 315 to 800 is the dimension of L1 adding on 7mm. | |||
| Mounting Content | Code | ||||||
| SF5(depth) | SF6 (depth) | SF7 (depth) | SF (depth) | SE (depth) | SE1 (depth) | SE2(depth) | |
| P(A,B) | 1-5/16-12UN (18) | M33 x 2 (18) | G1 (18) | 3/4" (18) | 1-1/16-12UN (18) | 1-1/16-12UN (18) | G3/4 （18） |
| T | 7/16-20UNF (12) | M14 x 1.5 (12) | G1/4 (12) | 7/16-20UNF (12) | 9/16-18UNF (12) | 7/16-20UNF (12) | G1/4 （12） |
| C | -- | -- | -- | 8 x 38-16UNC | -- | ||
