| Quantity: | |
|---|---|
TG0300UM050AAAB
Xeriwell or Others
| Item: | Torqmotor | OEM #: | TG0310UM050AAAB |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 300 Ml/r |
| Mounting Flange: | Wheel Flange Manifold Ports | Shaft Type: | 1 1/4" Spline Shaft |
| Highlight: | Hydraulic Motor TG0310 Series,14teeth Spline Shaft Hydraulic Motor,TG0310UM050AAAB | ||

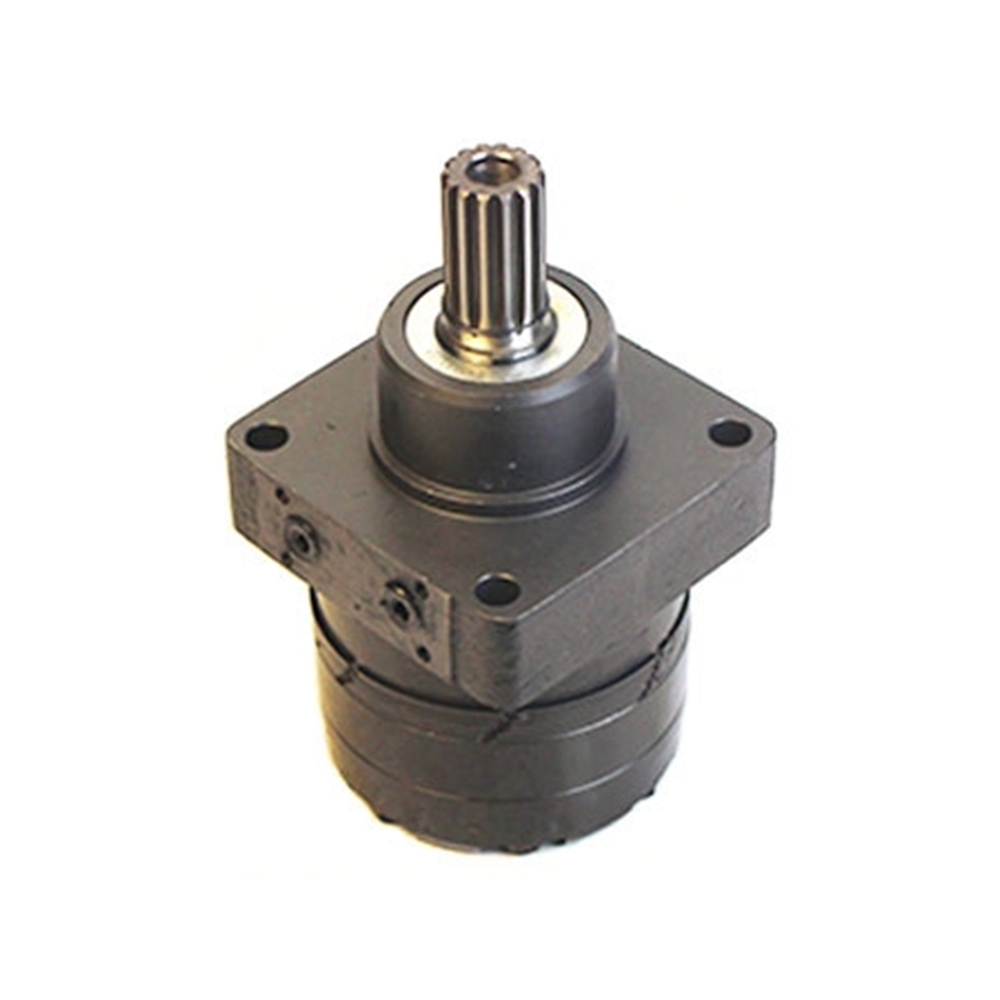

Xeriwell supply the LSHT Torqmotors BMER Series motors matching Parker TG series motors, the same function.
The heart of BMER Series powertrain, the torque link,is an extra heavy duty part that includes unique 60:40 spline
geometry. Rugged construction throughout allows the transmission of over 13,000 lb-in of torque. The entire powertrain is continually washed in cool, high fl ow fl uid to assure long life.Roller vanes and sealed commutator maintain high effi ciency and provide smooth low speed performance
Details specifications:
| Series: | TG |
| Shaft: | 1 1/4" Spline shaft,14teeth |
| Rotation: | clockwise |
| Displacement (cm3/rev): | 0310 |
| Mounting: | Wheel, Standard |
| Geometric Displacement: | 310cm3/rev (18.9 in3/rev) |
| Maximum Speed: | 303 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 76 lpm (20 gpm) / 95 lpm (25 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 307 bar (3000 PSID) / 276 bar (4000 PSID) |
| Maximum Supply Pressure: | 300 bar (4350 PSIG) |
| Maximum Torque - Continuous / Intermittent: | 824 Nm (8184 lb-in) / 1229 Nm (10817 lb-in) |
| Maximum Performance: | 31 KW (41HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 778 Nm (6882 lb-in) / 1005 Nm (8893 lb-in) |
