| Quantity: | |
|---|---|
BMR 200
Xeriwell or Others
| Type: | Hydraulic Lifting Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMR 200, Other Size From 50 Cc To 500 Cc Can Provided | Speed: | 100RPM To 2000RPM |
| Flow: | 40Lpm To 225Lpm | Application: | Farmland Irrigation Winch, Towing And Mooring Winches, Agricultural And Forestry Machinery |
| Highlight: | two speed hydraulic motor,industrial hydraulic motor | ||

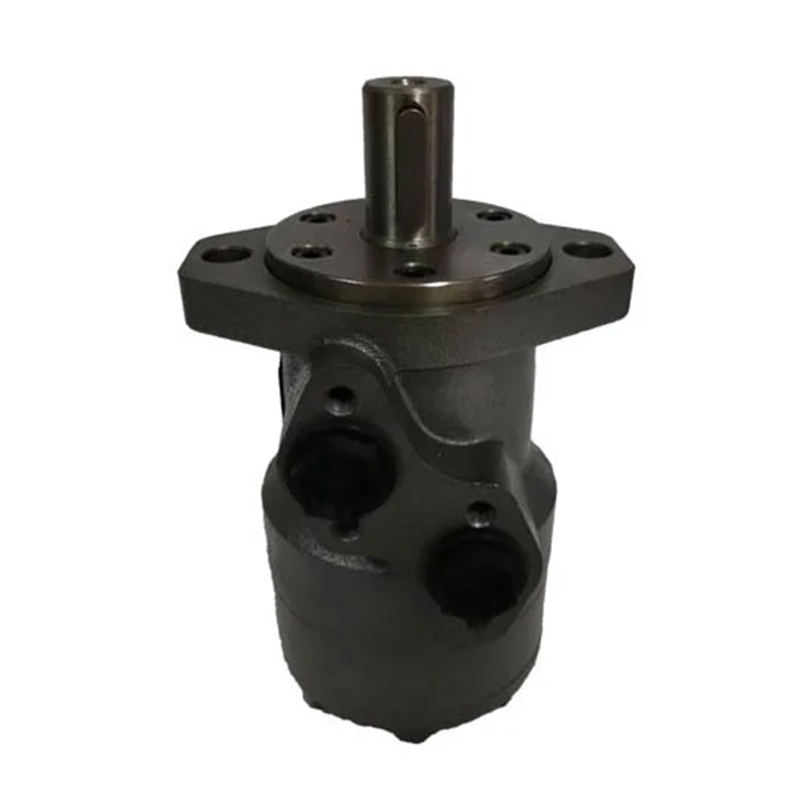

Hydraulic Winch Motor For Loading Crane, Drilling Rig, Marine Crane
BMR introduction
We produce and supply hydraulic drive motor for winches with full experienced at overshelming price.
BMR series motor replace OMR, Eaton Char Lynn S T series, M+S MR series.
FEATURES:
1. THis type motor is a Low speed high torque one, widely used for lifting, windling, load handling, delivery and many more power transmission applications.
2. From big to small, multi types, sizes, key and shaft available, small volume, light weight, save valuable space, High torque, High power transmission, long life under extreme operation conditions.
3. Displacement from 50ml/r to 1000ml/r, speed from 100RPM to 1000RPM, flow from 40Lpm to 225Lpm, working pressure from 9MPa to 30MPa, torque from 75N*M to 3000N*M.
4. Our motors interchangeable with most common brands and models of domestic and other European manufactures, simialr performance more moderate prices.
APPLICATIONS:
1. Farmland irrigation winch
2. Towing and mooring winches
3. Cable Laying winch
4. Oceanographic research winch
5. Nautical equipment and winches for fishing boats
6. Winch as an anchor
7. Capestani
8. Special systems for subsea pipelay
9. Winch Wood from deforestation
10. Wood processing and cutting machines
11. Agricultural and forestry machinery
12. Construction machinery and platform
13. Ground care and Mowing machinery, etc.
| Xeriwell HYDRALUIC | M+S | CHAR LYNN | |
| BMP/ BM1 | MP | H SERIES | OMP |
| BMR/ BM2 | MR | S,T SEREIS | OMR |
| BMH/ BM4 | MH | OMH | |
| BMS/ BM5 | MS | 2000 SERIES | OMS |
| BMT/ BM6 | MT | 6000 SERIES | OMT |
| BMV/ BM8 | MV | 1000 SERIES | OMV |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 380 | 450 | 540 | 550 | 580 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 500 | 610 | 690 | 690 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 710 | 840 | 830 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 11 | 10 | 9 | 7.5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 12 | 10 | 9 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 13.5 | 11.5 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 20 | 20 | 17.5 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
