| Quantity: | |
|---|---|
BMV400-4AD
Xeriwell or Others
| Products Name: | Hydraulic Motor | Model No.: | BMV400-4AD |
|---|---|---|---|
| Replace: | OMV 400 151B3101 | Displacement: | 400 Ml/r |
| Flange: | Standard | Dimensions –: | European Version |
| Shaft: | Cyl. 50 Mm | Oil Port: | G 1 |
| Drain : | G 1/4 | Used For: | Daewoo DOOSAN, Drilling, Mining Machines |
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||

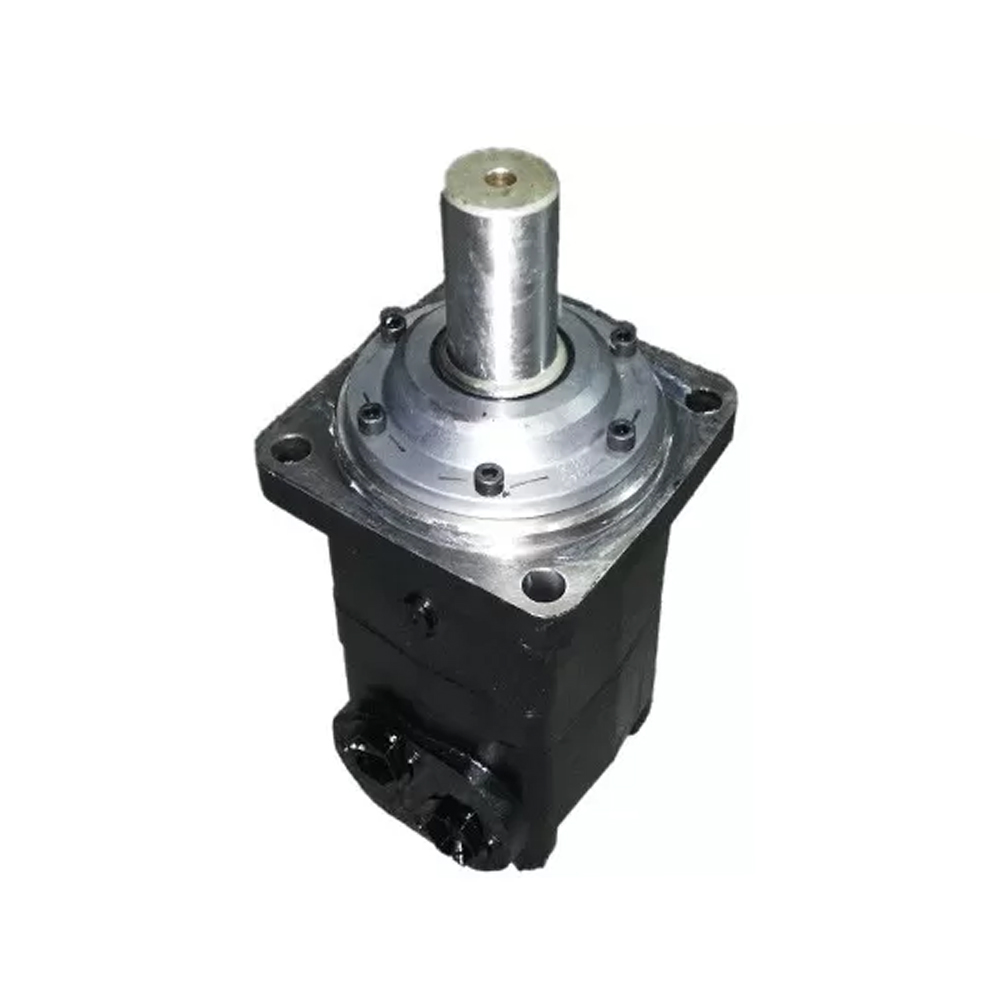

Low Speed High Torque Hydraulic Motor 151B3101 OMV 400 OMV 500 OMV 630 OMV 800
Xeriwell provide replacement hydraulic motor of 151B3101 omv 400
BMV400-4AD = 151B3101 omv 400
What benefit buyers can get?
1, This hydraulic motor is a most close to performance, however it's price is more than 50% lower.
2, It has been widely used in the Construction, Heavy Equipment, Farm & Agri, Mining, Metallurgical, Chemical, Transportation industries. If you sell $1,000,000 a year, you raise profit by 50%, $500,000.
3, Xeriwell BMV-400-4ADB = OMV 400
4, Xeriwell BMV-500-4ADB = OMV 500
5, Xeriwell BMV-630-4ADB = OMV 630
6, we have strong ability to match OEM part no. and provide you.
Applications:
Construction
Agricultural
Material handling & Lifting
Forestry
Lawn & turf equipment
Special purpose
Machine tools & stationary
Marine equipment
Specifications/ Technical Data:
Main Specifications:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

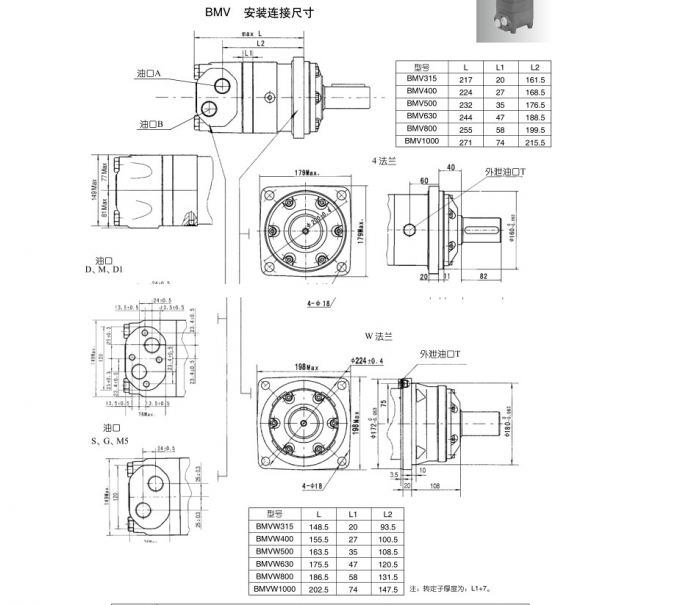

| 型号 | L | L1 | L2 |
| BMV315 | 217 | 20 | 161.5 |
| BMV400 | 224 | 27 | 168.5 |
| BMV500 | 232 | 35 | 176.5 |
| BMV630 | 244 | 47 | 188.5 |
| BMV800 | 255 | 58 | 199.5 |
| BMV1000 | 271 | 74 | 215.5 |
| 型号 | L | L1 | L2 |
| BMVW315 | 148.5 | 20 | 93.5 |
| BMVW400 | 155.5 | 27 | 100.5 |
| BMVW500 | 163.5 | 35 | 108.5 |
| BMVW630 | 175.5 | 47 | 120.5 |
| BMVW800 | 186.5 | 58 | 131.5 |
| BMVW1000 | 202.5 | 74 | 147.5 |
