BMS / MS / OMS315
Xeriwell or Others
Features: | Same As ,M+S | Product Name: | Sweeper Attachments Broom Drive Motor BMS315 |
---|---|---|---|
Displacement: | 80cc -500cc | Application: | Sweeper Attachments Broom Drive |
Model Number: | BMS 315cc | Speed: | Low Speed High Torque |
Highlight: | orbital hydraulic motor,cycloid hydraulic motor |

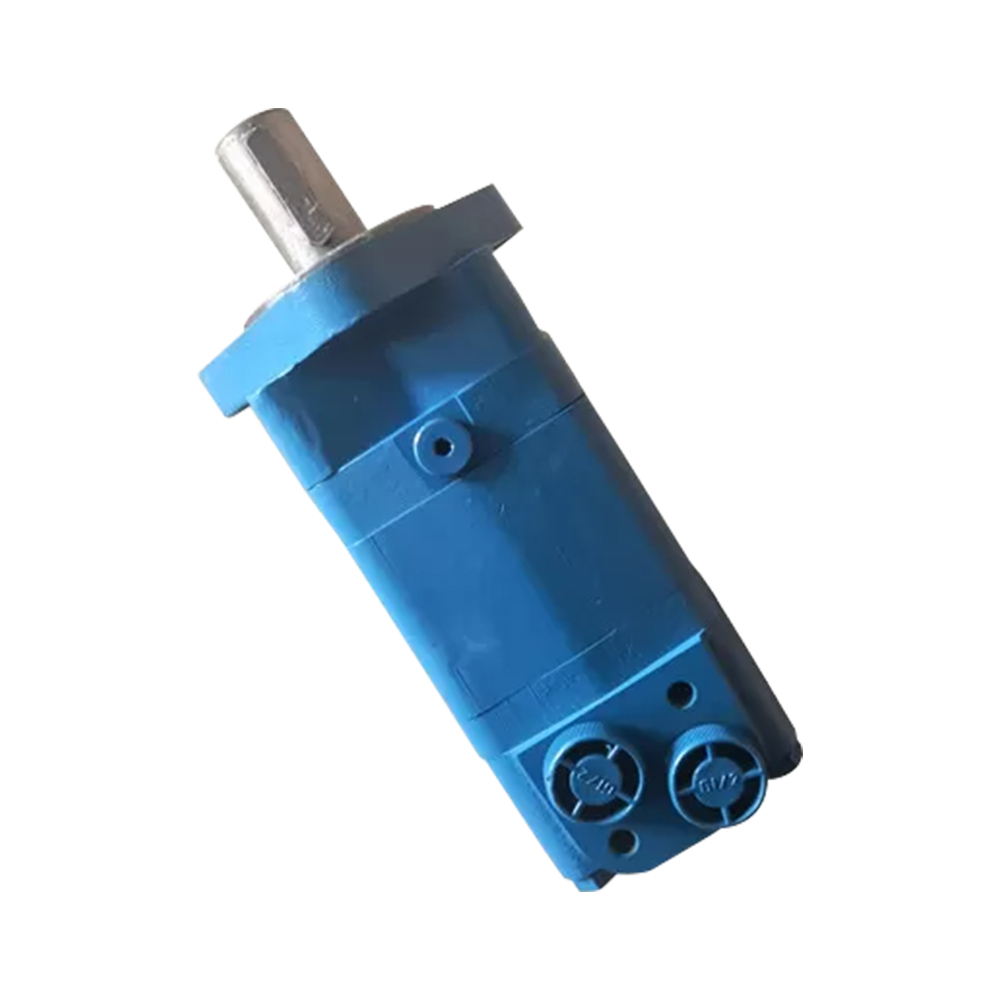

Low Speed High Torque Geroler Orbital Motor For Sweeper Attachments Broom Drive
► Characteristic Features
1. Low internal leakage
2. High torque at low speeds
3. Large displacement volume
4. Relatively small size
5. Low noise level
6. Longer life expectancy
7. Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
8. The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
9. Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
► Specification
Same than OMS, M+S MS, Eaton 2000 Series
Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 |
