Orbit Motor BMS
Xeriwell or Others
| Features: | Small Size, Compact Structure, High Torque, Clockwise & Counterclockwise, Long Life | Product Name: | Hydraulic Gear Motors |
|---|---|---|---|
| Displacement: | 50cc,80cc,100cc,125cc,160cc......500cc | Applications: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. |
| Replacement: | , Eaton , M+S | Flange: | 2 Bolt Flange , 4 Bolt Flange |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

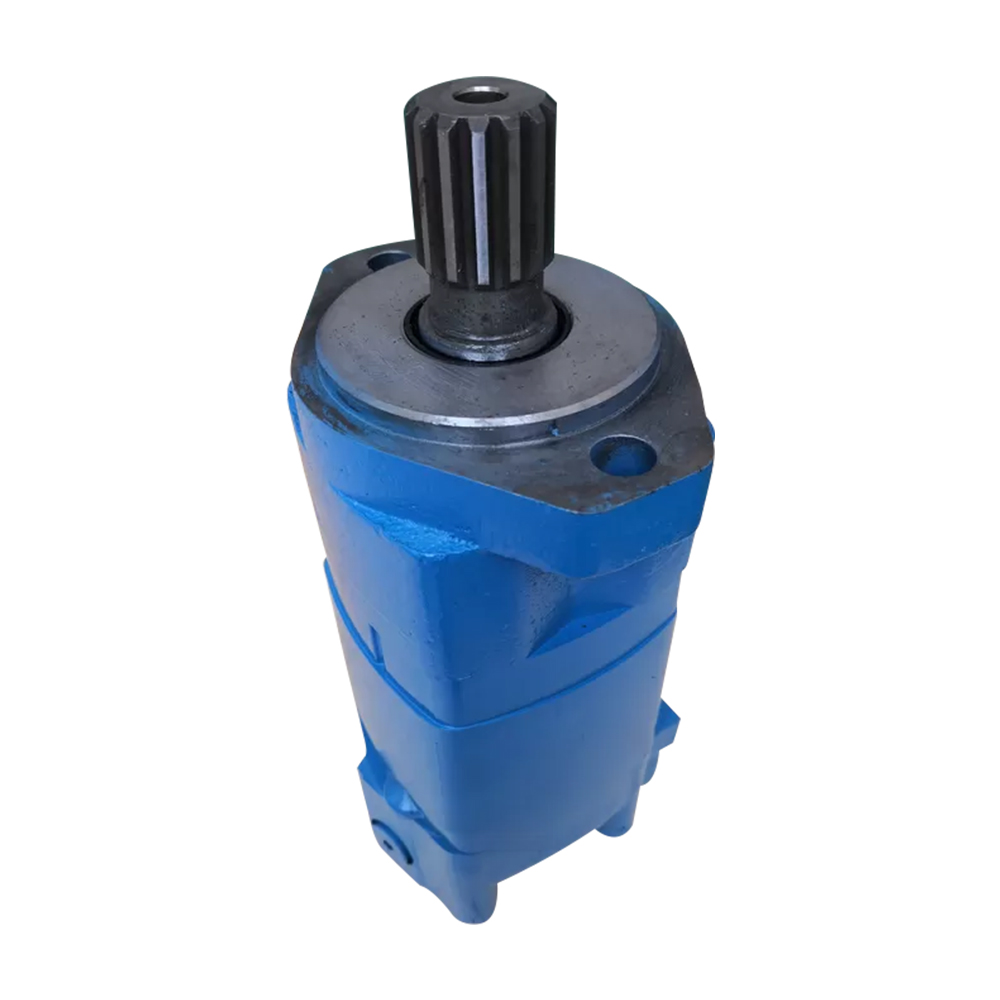

Low Speed High Torque Disc Valve Hydraulic Motor Eaton Char-Lynn 104 , 105 , 106
We specialize in the production of hydraulic products, which can replace imported brands, quality and cheap
FEATURES
Xeriwell BMP/BM1= OMP = EATON H = M+S MP
Xeriwell BMR/BM2= OMR = EATON S = M+S MR
Xeriwell BMH/BM4= OMH = M+S MH
Xeriwell BMS/BM5= OMS = EATON 2000 = M+S MS
Xeriwell BMT/BM6= OMT = EATON 6000 = M+S MT
Xeriwell BMS series hydraulic motor replaces Eaton Char-Lynn 104,105,106
► Specification
Same than OMS, M+S MS, Eaton 2000 Series
| Type | BMS 80 | BMS 100 | BMS 125 | BMS 160 | BMS 200 | BMS 250 | BMS 315 | BMS 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
| Model | L | L1 | L2 |
| BMS-80 | 167 | 13 | 123.2 |
| BMS-100 | 171 | 17 | 127.2 |
| BMS-125 | 176 | 22 | 132.2 |
| BMS-160 | 181.5 | 27.5 | 137.7 |
| BMS-200 | 189 | 35.1 | 145.2 |
| BMS-250 | 201 | 47 | 157.2 |
| BMS-315 | 213 | 59 | 169.2 |
| BMS-375 | 225 | 71 | 181.2 |
| Model | L | L1 | L2 |
| BMS-80-W | 129.4 | 13 | 86 |
| BMS-100-W | 133.4 | 17 | 90 |
| BMS-125-W | 138.4 | 22 | 95 |
| BMS-160-W | 143.9 | 27.5 | 100.5 |
| BMS-200-W | 151.4 | 35.1 | 108 |
| BMS-250-W | 163.4 | 47 | 120 |
| BMS-315-W | 175.4 | 59 | 132 |
| BMS-375-W | 187.4 | 71 | 144 |
| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) |
| P(A,B) | G1/2(18) | M22x1.5(18) | 7/8-14 O-ring (18) | 1/2-14NPTF (15) |
| T | G1/4(12) | M14x1.5(12) | 7/16-20UNF(12) | 7/16-20UNF(12) |
| C | 2-M10(13) | 2-M10 (13) | 2-3/8-16UNC (13) | 2-3/8-16UNC (13) |
