| Quantity: | |
|---|---|
Orbit Motor BMT
Xeriwell or Others
| Features: | Small Size, Compact Structure, High Torque, Clockwise & Counterclockwise, Long Life | Product Name: | Hydraulic Gear Motors |
|---|---|---|---|
| Displacement: | 50cc,80cc,100cc,125cc,160cc......500cc | Applications: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. |
| Replacement: | Eaton , M+S | Flange: | 2 Bolt Flange , 4 Bolt Flange |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

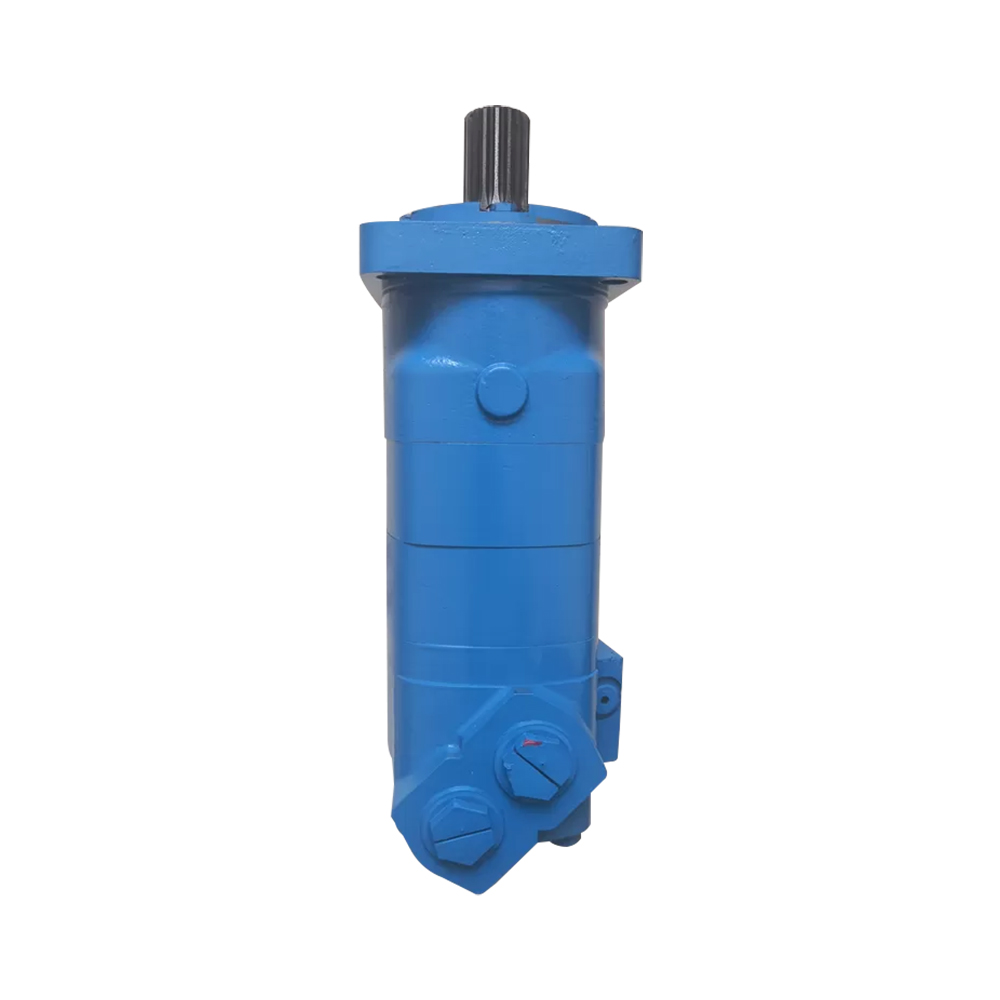

Low Speed High Torque Char-Lynn 6000 Series Hydraulic Motor Eaton 112, 113, 114
Xeriwell BMT series hydraulic motor can replace Charing 6000 series motor and Eaton 112 112 114
The BMT series motors adapt the advanced gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation.
Specifications:
Delivering premium power, these motors cover small to large, medium to heavy-duty needs.
advanced geroler gear set design
low pressure of start-up, smooth operate
high axial and radial forces
disc distribution flow, automatically compensate
Robust construction for longer life
Superior side load capacity
Smooth, extra low speed operation
High pressure shaft seal is standard
Innovative design eliminates the need for a drain
Dependability based on high quality design and manufacturing

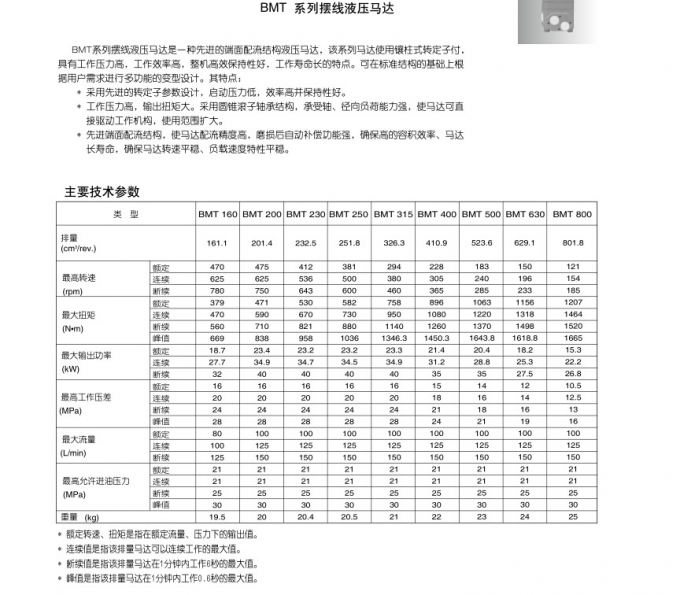

Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| Features: | Small Size, Compact Structure, High Torque, Clockwise & Counterclockwise, Long Life | Product Name: | Hydraulic Gear Motors |
|---|---|---|---|
| Displacement: | 50cc,80cc,100cc,125cc,160cc......500cc | Applications: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. |
| Replacement: | Eaton , M+S | Flange: | 2 Bolt Flange , 4 Bolt Flange |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||
Low Speed High Torque Char-Lynn 6000 Series Hydraulic Motor Eaton 112, 113, 114
Xeriwell BMT series hydraulic motor can replace Charing 6000 series motor and Eaton 112 112 114
The BMT series motors adapt the advanced gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation.
Specifications:
Delivering premium power, these motors cover small to large, medium to heavy-duty needs.
advanced geroler gear set design
low pressure of start-up, smooth operate
high axial and radial forces
disc distribution flow, automatically compensate
Robust construction for longer life
Superior side load capacity
Smooth, extra low speed operation
High pressure shaft seal is standard
Innovative design eliminates the need for a drain
Dependability based on high quality design and manufacturing
Main Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
