Orbit Motor BMS
Xeriwell or Others
| Features: | Small Size, Compact Structure, High Torque, Clockwise & Counterclockwise, Long Life | Product Name: | Hydraulic Gear Motors |
|---|---|---|---|
| Displacement: | 50cc,80cc,100cc,125cc,160cc......500cc | Applications: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. |
| Replacement: | , Eaton , M+S | Flange: | 2 Bolt Flange , 4 Bolt Flange |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

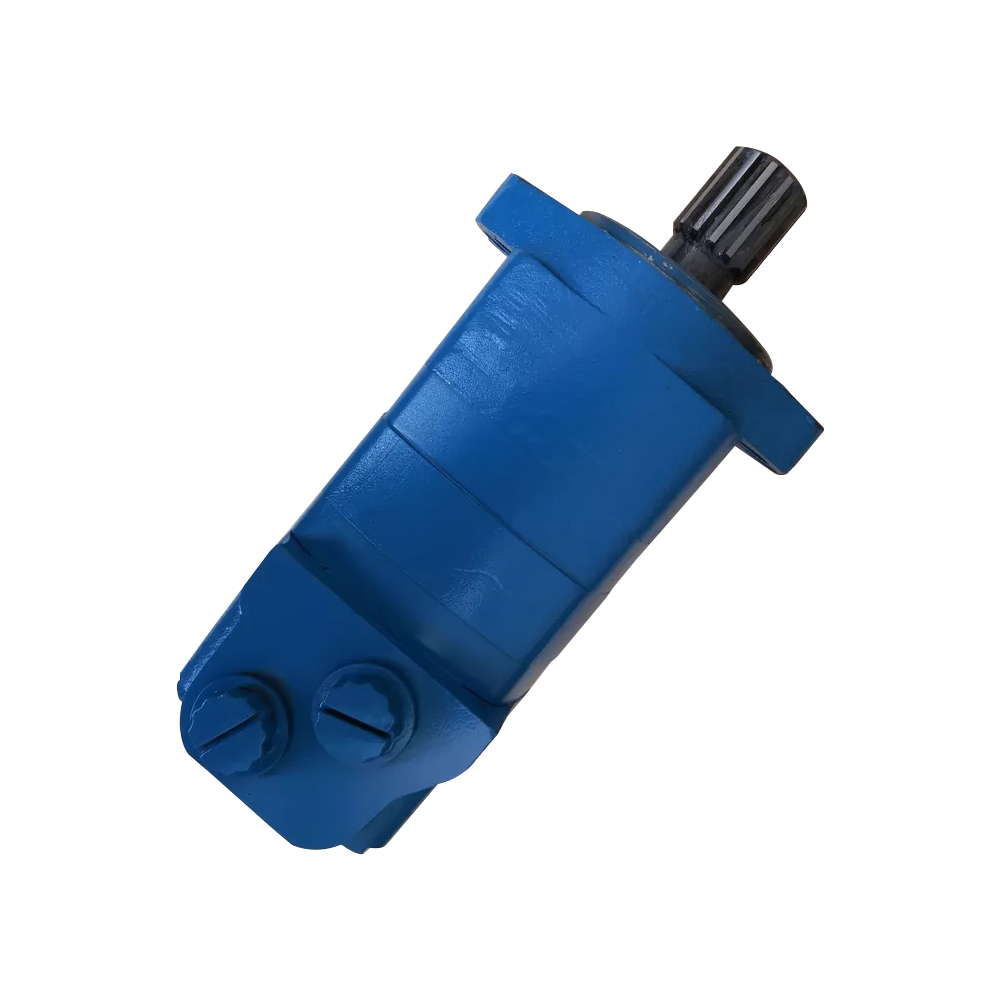

Low Speed High Torque Char-Lynn 2000 Series Hydraulic Motor
We have a professional team designed for Eaton Motors. Our BMS series can replace Char-lynn 2000 series Motor
Xeriwell BMS series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with
Requirement of applications.
1. Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
2. Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
3. The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
► The Xeriwell BMS series specifications are the same as OMS, M+S MS, and Eaton 2000 series specifications, as follows
| Type | BMS 80 | BMS 100 | BMS 125 | BMS 160 | BMS 200 | BMS 250 | BMS 315 | BMS 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
