Hydraulic Steering Unit 101S
Xeriwell or Others
| Product Name: | Hydraulic Steering Pumps | Function: | Open Center Non-reaction, Open Center Reaction, Close Center Non-reaction, Load Sensing/ON/OR/CN/LS/5T |
|---|---|---|---|
| Displacement: | 50, 80, 100, 125, 160 ......400, 500 | Applications: | Walking Mechanical Steering |
| Replacement: | OSPC, M+S HKUS | Column Mounting: | M10, M10*15 |
| Highlight: | hydraulic steering control unit,hydraulic steering pump | ||

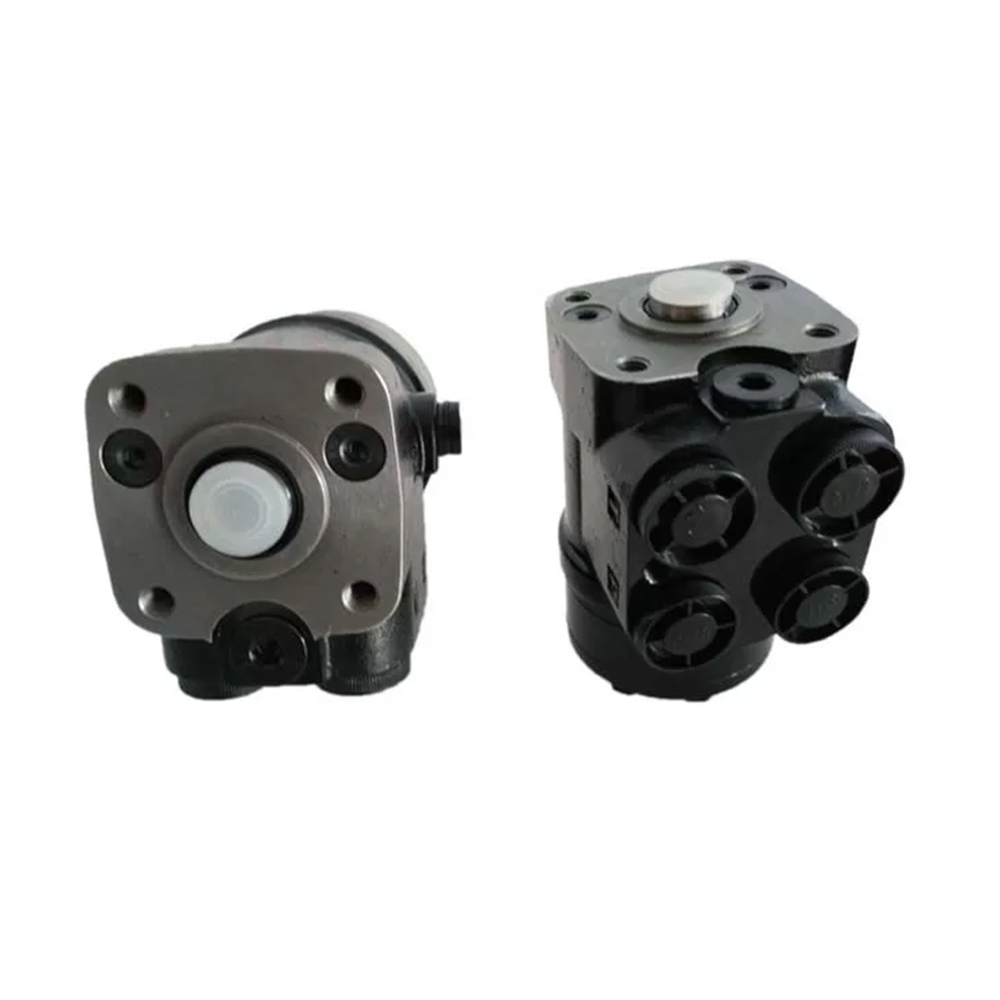

Hydraulic Steering Unit 101S 80 For Ford, ,Fiat, Long Tractors
Hydraulic Steering Unit
101S series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.
Features :
compact and convenient
low pressure drop.
Can replace OSPC , M+S HKUS .
Low hydraulic noise
Main Specifications:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| 主要技术参数 Main Specification | |||||||||||
| Parameters | Type 101-……- | ||||||||||
| Function Code | 1,2,3 | 1,3 | |||||||||
| Displacement(mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max. input pressure (MPa) | 17.5 | ||||||||||
| Max. cont. back pressure (MPa) | 2.5 | ||||||||||
| Weight (kg) | 5.7 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
| Dimension L (mm) | 130 | 132 | 133 | 136 | 139 | 144 | 149 | 155 | 160 | 165 | 175 |
| Note:L is the maximum length dimension of product. This dimension on some products may 2mm or 4mm shorter. | |||||||||||
| 油口螺纹 Ports Threads | |||||
| 代码 Code | P、T、A、B油□ Ports P,T,A,B | 连接螺纹C Column Mounting C | 连接螺纹V Column Mounting V | LS油□ Post LS | LL、EL油□ Ports LL,EL |
| A | M20×1.5 | M10 | M12 | M12×1.5 | |
| B | M20×1.5 O-ring | M12×1.5 O-ring | |||
| C | M18×1.5 | M12×1.5 | |||
| D | M18×1.5 O-ring | M12×1.5 O-ring | |||
| E | G1/2 | M10×1 | G1/4 | M10×1 | |
| U | G1/2 O-ring | G1/4 O-ring | M10×1 O-ring | ||
| M | 3/4-16UNF O-ring | M12 | 7/16-20UNF O-ring | ||
| F | 3/8-16 UNC | 3/8-24 UNF | |||
| I | M10 | M10 | |||
| N | M10×1.25 | ||||
| H | ∅18.5 | M10 | M10 | M12×1.5 | |
| 注1：油□P、T、A、B的深度15 mm，连接螺纹C、V的深度16 mm，LS、LL、EL的深度12 mm。 Note 1:Ports P,T,A,B Depth：15 mm;Column Mounting C &V Depth:16 mm,LS,LL,EL Depth:12 mm. 注2：其他油口连接方式协议确定代号。 Note 2:The code of other ports dimensions will be listed in an agreement. | |||||
Applications :
We produce the products match with the OEM number of all machines.
Orbital Steering Valve is widely used in mobile machinery forklift,,tractor,comebine harvester, loader,roadroller , etc.
If you have a control system that need steering or power steering , our 101S steering units are a good option for you .
