Hydraulic Power Steering 101S
Xeriwell or Others
| Product Name: | Hydraulic Steering Units | Function: | Open Center Non-reaction, Open Center Reaction, Close Center Non-reaction, Load Sensing/ON/OR/CN/LS/5T |
|---|---|---|---|
| Displacement: | 50, 80, 100, 125, 160 ......400, 500 | Applications: | Walking Mechanical Steering |
| Replacement: | OSPC, M+S HKUS | Valves: | Relief Valve, Shock Valves, Suction Valves And Check Valve |
| Highlight: | power steering valve,power steering control unit | ||

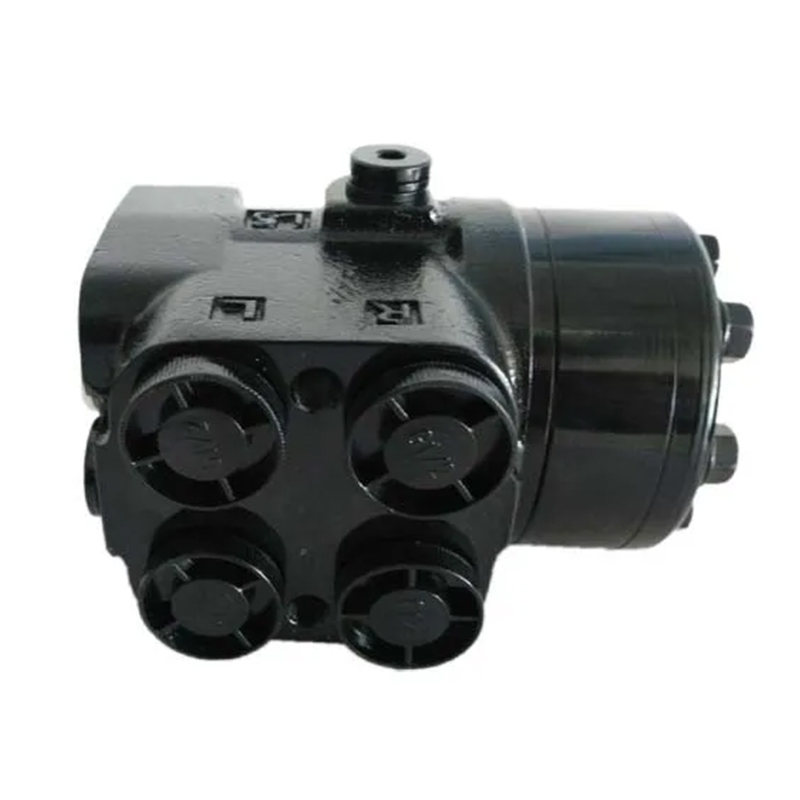

Hydraulic Power Steering 101S 315 For Steering Control System , Hydraulic System
Hydraulic Power Steering
101S series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.
Features :
compact and convenient
Low hydraulic noise
Special casting design for low pressure drop.

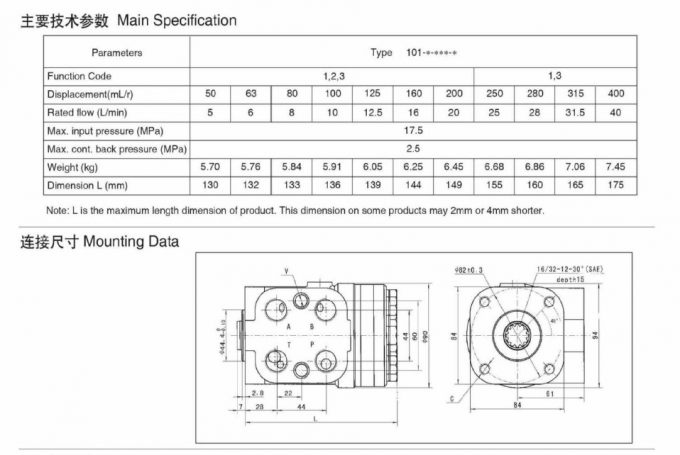

Main Specifications:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Applications :
Orbital Steering Valve is widely used in the steering control system
such as forklift,loader,roadroller,tractor,comebine harvester, etc.
We produce the products match with the OEM number of all machines.
