| Quantity: | |
|---|---|
CBT Series
Xeriwell or Others
| Product: | Hydraulic Oil Pump / Bidirectional Gear Pump | Model: | CBT-E3 |
|---|---|---|---|
| Use For: | Hydraulic System | Application: | Direct Drive |
| Material: | Aluminum, Cast Iron | Shaft: | Splined Shaft (9 Teeth 16/32 DP) |
| Highlight: | industrial hydraulic pump,small gear pump | ||

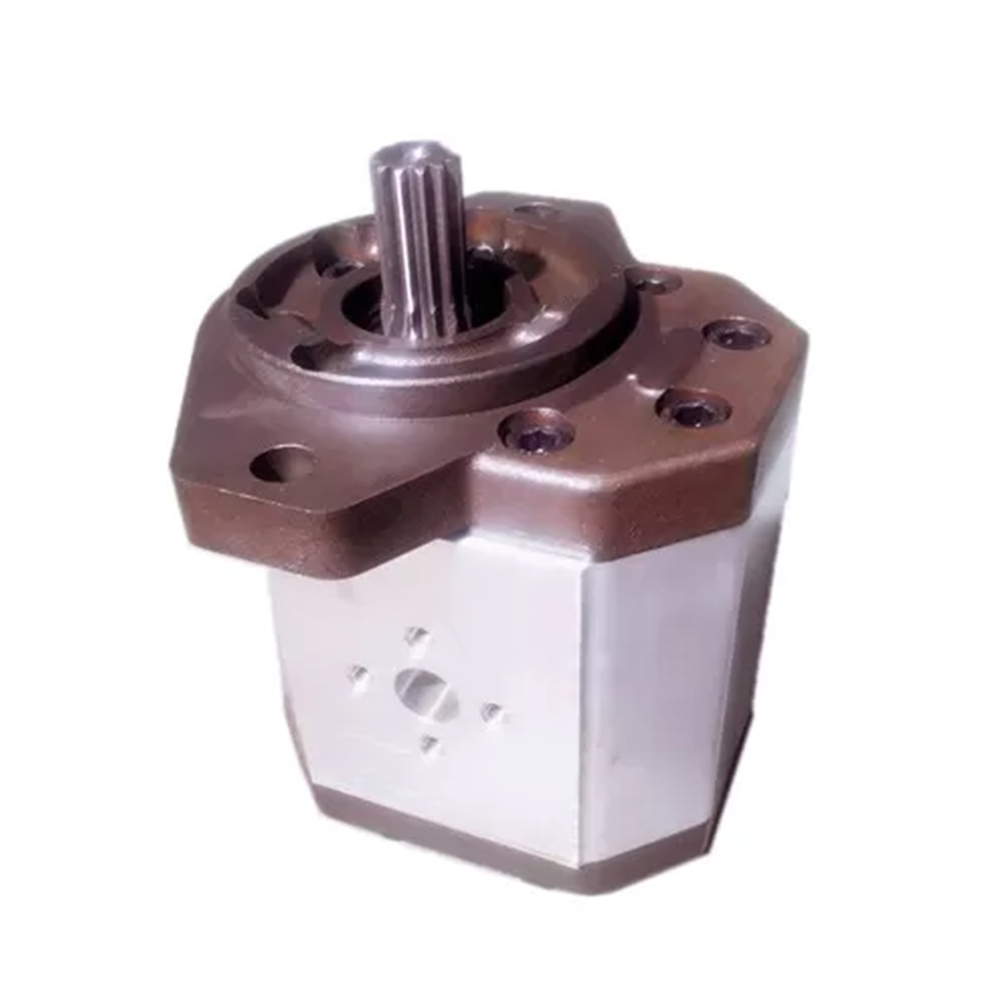

Hydraulic Gear Pump, Bi-Directional 9 teeth Spline16/32 Shaft
This single Xeriwell Hydraulic Gear Pump is a low noise gear pump allowing for either clockwise or counter-clockwise operation. The light overall weight is ideal for all applications. Material: Cast iron, Max 25 MPa, Rotations Per Minute: 2,000, Shaft Diameter: 9 teeth Spline16/32 Shaft. Type: Extended, Stage: 1, Usage: Continuous.
Cast iron construction for long life
Pump features 90% volumetric and 88% mechanical efficiency
9 teeth Spline16/32 Shaft
Excellent cycle times
High power density
Bi-rotational pressure balanced
1-1/16-12UNF SAE O-rings on side and rear inlet ports; 7/8-14UNF SAE O-rings on side and rear outlet ports; 9/16-18UNF SAE O-ring on rear drain port
Includes a pair of precision gears supported by 2 aluminum bearing blocks, housing and front and rear covers
Axial clearance can be automatically compensated by the pressure balanced bearing blocks
Continuous usage
ABOUT US
Xeriwell, leading manufacturing plant of gear pumps, gear motors, agricultural gear pumps, gear motors, construction gear pumps, gear motors, and many more.
Single pump and tandem pumps, group 1, group 2, group 3, all can be done, we also do according to customers drawings and samples.
have worked with many cudtomers from Poland, Ukraine, Germany, Bulgaria, Belarus, Russia, France, Italy, Romania, Argentina, Bulgaria, Chile, Brazil, Peru, Thailand, Vietnam, and so on.
Very nice quality can PK Bulgaria & USA quality, however you can buy same quality from us with price only 1/3 - 1/5.
Very nice pumps, meet CE, Euro & USA industrial standard.
We strive to provide the best possible service to our customers.
APPLICATIONS
Xeriwell Gear Motor/ Pumps widely used on Agricultural tractors, Harvesters, Garden Tractors, Dump Trucks, Forklifts, Combine Harvesters, Fishing, Sweepers, Water Tanks, Trailers, Crane, Truck Crane, Excavators, Loaders, Earth Movers, Machine Tool, etc.
Used on tractor of Belarus, , David Brown, Deutz, Fendt, Fiat, Ford, , Lamborgini, Massey Ferguson, , Same, etc.
PAYMENT
We accept T/T, L/C, Western Union, PayPal payment.
If you need anything regarding payment, please feel free to contact us
SHIPPING
Withn 15 work days
Warranty
We Stand behind all of our products for 12 months

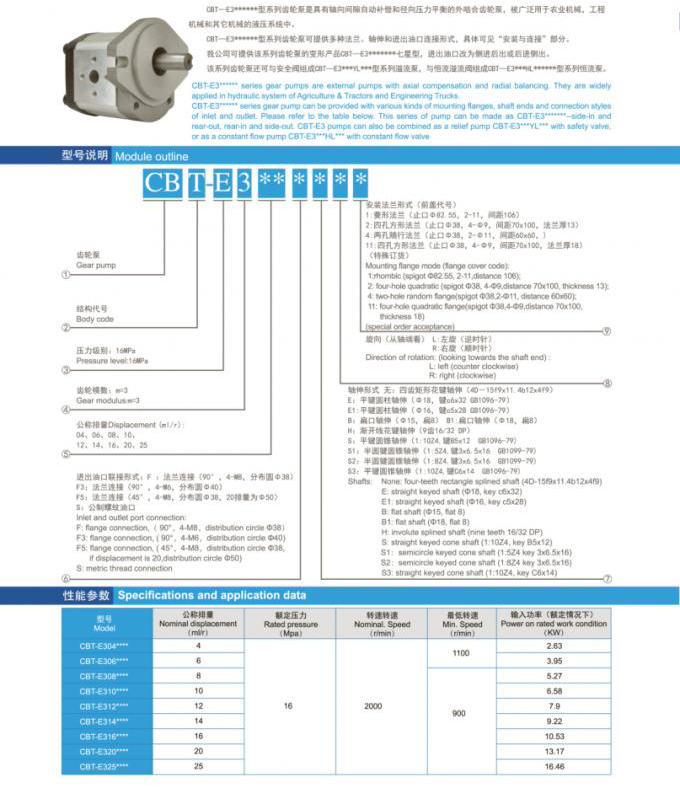

This CBT type is our best seller to global market, today i introduce motor CBT series to you:
CBT series gear motor/ pumps are external motors with axial compensation and radial balancing. They are widely applied in hydraulic system of Agricultural & Tractor and Engineering Trucks.
CBT series gear motor/ pumps can be provided with various kinds of mounting glanges, shaft ends and connection styles of inlet and outlet. Please refer to the table below. This series of motor/ pump can be made as side-in and rear-out, rear-in and side-out. CBT motor/ pump can also be combined as a relief pump with safety valve, or as a constant flow pump with constant flow valve.
| 1 | Gear Pump |
| 2 | Body Code |
| 3 | Pressure: 16MPa |
| 4 | Module of Gear: m=3 |
| 5 | Norminal Displacement (ml/r): 04, 06, 08, 10, 12, 14, 16, 18, 20, 25 |
| 6 | port connection: F: flange connection (90°, 4-M8, distribution circleφ38) F3: flange connection(90°, 4-M6, distribution circleφ40) , F5: flange connection (45°, 4-M8, distribution circleφ38) , If displacement is 20ml/r, the distrbution circle is φ50) S: metric thread connection (only for 2#front cover) |
| 7 | Shaft ends: None: four-teeth rectangle splined shaft key (4D-15f9x11.4b12x4f9) E1: straight keyed shaft (Φ 16, C5x28) B: flat shaft (Φ 15, flat 8) B1: flat shaft (Φ 18, flat 8) S3: straight keyed cone (1:10Z4, key B6x14) |
| 8 | Rotation (looking from the shaft end): L: Left R: Right |
| 9 | Mounting flange type (front cover code): 1: rhombic (spigot Φ82.55, 2-Φ11,distance 106); 2: four-hole quadratic (spigot Φ38, 4-Φ9,distance 70x100, thick 13); 4: two-hole random (spigot Φ38,2-Φ11, distance 60x60); 11: four-hole quadratic (spigot Φ38,4-Φ9,distance 70x100, thick 18) (special order acceptance) |
