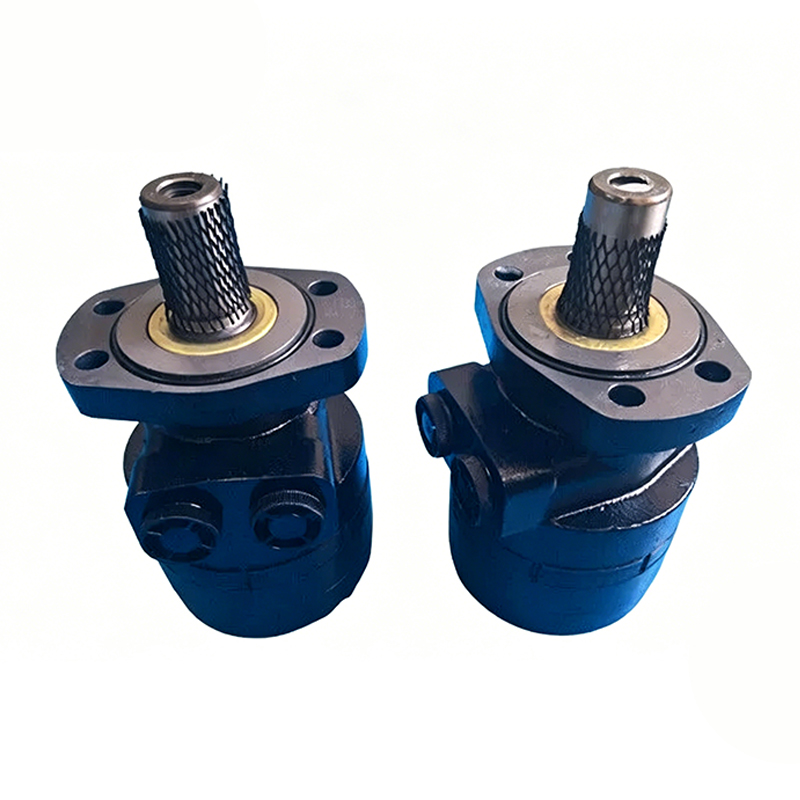

Hydraulic Wheel Motor BMRW
Xeriwell or Others
| Product Name: | Hydraulic Orbital Motors | Speed.Range(cont.)(r/min): | 10-475 |
|---|---|---|---|
| Displacement: | 50,80,100,125,160,200,250,315,400 | Applications: | Wheel Loader, Wheel Crane,Fairway Mower Etc. |
| Max.Output.Power(cont.)(Kw): | 32 | Replace: | Fairway Mower OEM ,Parker Motor, Eaton Motor Etc. |
| Highlight: | hydraulic wheel drive motors,hydraulic track motor | ||
Hydraulic Wheel Motor BMRW Replace:Fairway Mower OEM ,Parker Motor, Eaton Motor etc.
Xeriwell High Torque BMER-300-MDG2R Replaces American Parker Conical Cycloidal Hydraulic Oil Motor.
Features:
(1) Low-friction and long life advantages
(2) Compact size, high efficiency
(3) Shaft seal can bear high pressure of back and the motor can be used in parallel or series
(4) Geroler and drive use the SMT series motors parameter, prolong operating life
(5) Internal check valves, Escort seal
(6) This motor has a rugged housing with an extra large capacity side load bearing
Specification:
Model: BMER1-200-WS-T4-S
Disp. 11.96 cu.in./rev.
Pressure:
2973 PSI(Cont.)
3481 PSI(Int.)
Torque
4691 in-lb. (Cont.)
6310 in-lb. (Int.)
Speed
330 PRM (Cont.)
425 RPM (Int.)
Flow
18.5 GPM (Cont.)
22.4 GPM (Int.)
Rotation Reversible
Mount 4 Bolt Wheel
5.812 bolt circle, 3-1/4" pilot dia
Shaft 1-1/4" tapered*4.21"
shaft w/5/16" key and threaded end
Ports SAE 10
Size 4.94"*5.25"*5.45"
Shpg. 30lbs.
| YPE | BMSW-315 | BMSW-400 | BMSW-500 | BMSW-630 | BMSW-800 | BMSW-985 | |
| Displacement(ml/r) | 314.9 | 399.7 | 496.6 | 617.8 | 787.4 | 969.1 | |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak. | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max.Torque(N.m) | cont. | 873 | 1108 | 1385 | 1570 | 1773 | 1900 |
| int. | 1119 | 1440 | 1783 | 1951 | 2122 | 2133 | |
| peak. | 1293 | 1650 | 2060 | 2249 | 2481 | 2399 | |
| Speed.Range(cont.)(r/min) | 10-475 | 9-375 | 8-300 | 6-238 | 5-187 | 5-154 | |
| Max.Flow(cont.)(L/min) | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max.Output.Power(cont.)(Kw) | 32 | 32 | 32 | 32 | 32 | 24 | |
| Weight(kg) | 30.7 | 31.5 | 32.4 | 33.6 | 35.2 | 37.2 | |

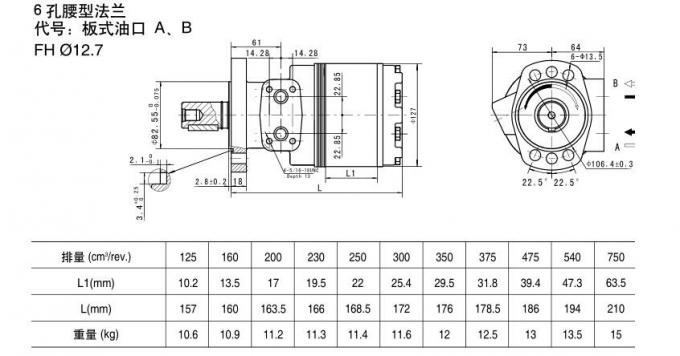

| 排量 (cm3/rev.) | 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 |
| L1(mm) | 10.2 | 13.5 | 17 | 19.5 | 22 | 25.4 | 29.5 | 31.8 | 39.4 | 47.3 | 63.5 |
| L(mm) | 157 | 160 | 163.5 | 166 | 168.5 | 172 | 176 | 178.5 | 186 | 194 | 210 |
| 重量 (kg) | 10.6 | 10.9 | 11.2 | 11.3 | 11.4 | 11.6 | 12 | 12.5 | 13 | 13.5 | 15 |

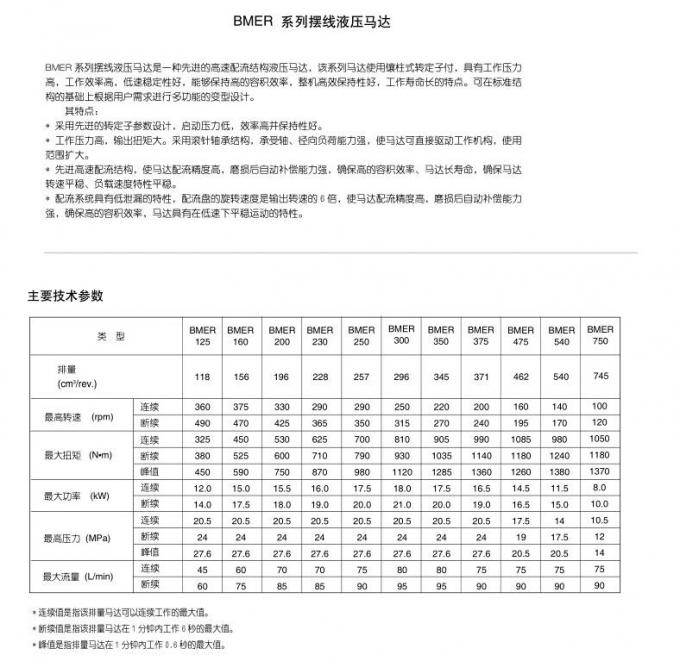

| 主要技术参数 | ||||||||||||
| 类 型 | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 | |
| 排量 (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| 最高转速 (rpm) | 连续 | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| 断续 | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| 最大扭矩 (N•m) | 连续 | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| 断续 | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| 峰值 | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| 最大功率 (kW) | 连续 | 12 | 15 | 15.5 | 16 | 17.5 | 18 | 17.5 | 16.5 | 14.5 | 11.5 | 8 |
| 断续 | 14 | 17.5 | 18 | 19 | 20 | 21 | 20 | 19 | 16.5 | 15 | 10 | |
| 最高压力 (MPa) | 连续 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| 断续 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| 峰值 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| 最大流量 (L/min) | 连续 | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| 断续 | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
| *连续值是指该排量马达可以连续工作的最大值。 *断续值是指该排量马达在1分钟内工作6秒的最大值。 *峰值是指排量马达在1分钟内工作0.8秒的最大值。 | ||||||||||||
