BMSW
Xeriwell or Others
| Type: | Hydraulic Wheel Motors For Small Wheel Applications | Brand: | HANJIU |
|---|---|---|---|
| Model No.: | BMSW | Displacement: | 315ml/r |

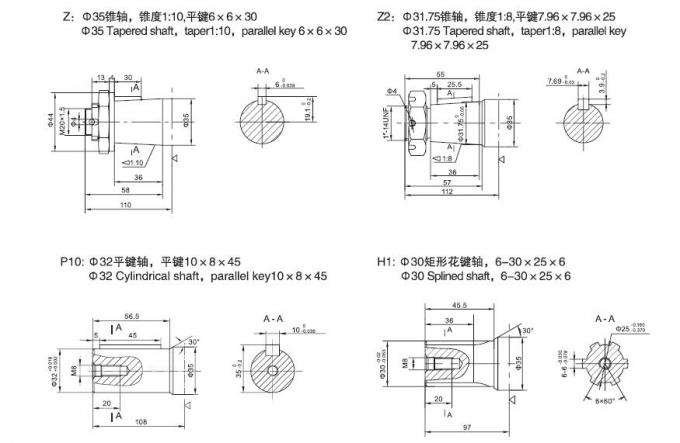

| Mounting: | 4 - Bolt | Shaft: | Tapered Shaft 35mm, Taper 1:10 |
| Highlight: | hydraulic track motor,spool valve motor | ||

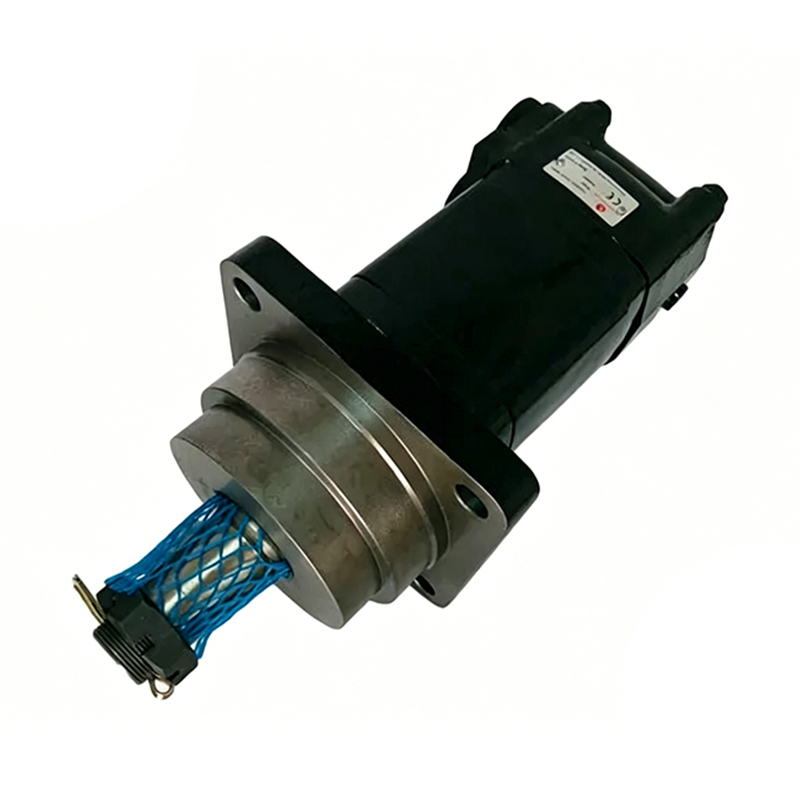

Hydraulic Wheel Motor BMSW For Skid Steer Loaders, Turf equipment
Xeriwell hydraulic wheel motor is a direct replacement for OMS, M+S MS/MSY, Eaton 2000, White RE, Parker TG, SAM Brevini HPR and other equivalent models.
Characteristic features:
1. Advanced design in disc distribution flow, which can provide improved performance at low speed.
2. Advanced design of shaft seal, which can bear higher pressure.
3. Advanced distribution mechanism design, which has the automatic compensation function.
4. Double-rolling bearing design, which permit higher radial loads.
5. A variety of connection types of flange, output shaft and oil port.
product applications:
1. Skid Steer Loaders
2. Fairway Mowers
3. Harvesters
4. Vehicles where space
5. Snow removal
6. Agricultural sprayers
7. Trenchers
8. Wood mill products
9. Brush cutters
10. Mower
11. Haveresting equipment
12. Forestry equipment
13. Turf equipment
Model Crossing:
| MOTOR CROSS REFERENCE TABLE | ||||||||
| HANJIU HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
TECHNICAL DATA
| TYPE | BM5-315 BM5S-315 BM5W-315 | BM5-400 BM5S-400 BM5W-400 | BM5-500 BM5S-500 BM5W-500 | BM5-630 BM5S-630 BM5W-630 | BM5-800 BM5S-800 BM5W-800 | BM5-985 BM5S-985 BM5W-985 | |
| Displacement(ml/r) | 314.9 | 399.7 | 496.6 | 617.8 | 787.4 | 969.1 | |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak. | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max.Torque(N.m) | cont. | 873 | 1108 | 1385 | 1570 | 1773 | 1900 |
| int. | 1119 | 1440 | 1783 | 1951 | 2122 | 2133 | |
| peak. | 1293 | 1650 | 2060 | 2249 | 2481 | 2399 | |
| Speed.Range(cont.)(r/min) | 10-475 | 9-375 | 8-300 | 6-238 | 5-187 | 5-154 | |
| Max.Flow(cont.)(L/min) | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max.Output.Power(cont.)(Kw) | 32 | 32 | 32 | 32 | 32 | 24 | |
| Weight(kg) | 30.7 | 31.5 | 32.4 | 33.6 | 35.2 | 37.2 | |

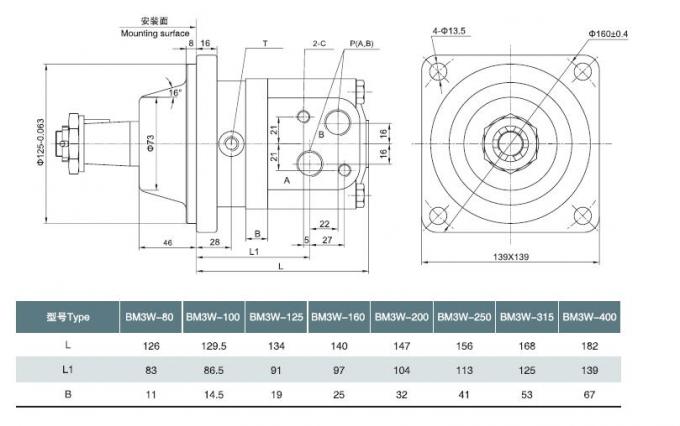

| 型号Type | BM3W-80 | BM3W-100 | BM3W-125 | BM3W-160 | BM3W-200 | BM3W-250 | BM3W-315 | BM3W-400 |
| L | 126 | 129.5 | 134 | 140 | 147 | 156 | 168 | 182 |
| L1 | 83 | 86.5 | 91 | 97 | 104 | 113 | 125 | 139 |
| B | 11 | 14.5 | 19 | 25 | 32 | 41 | 53 | 67 |
