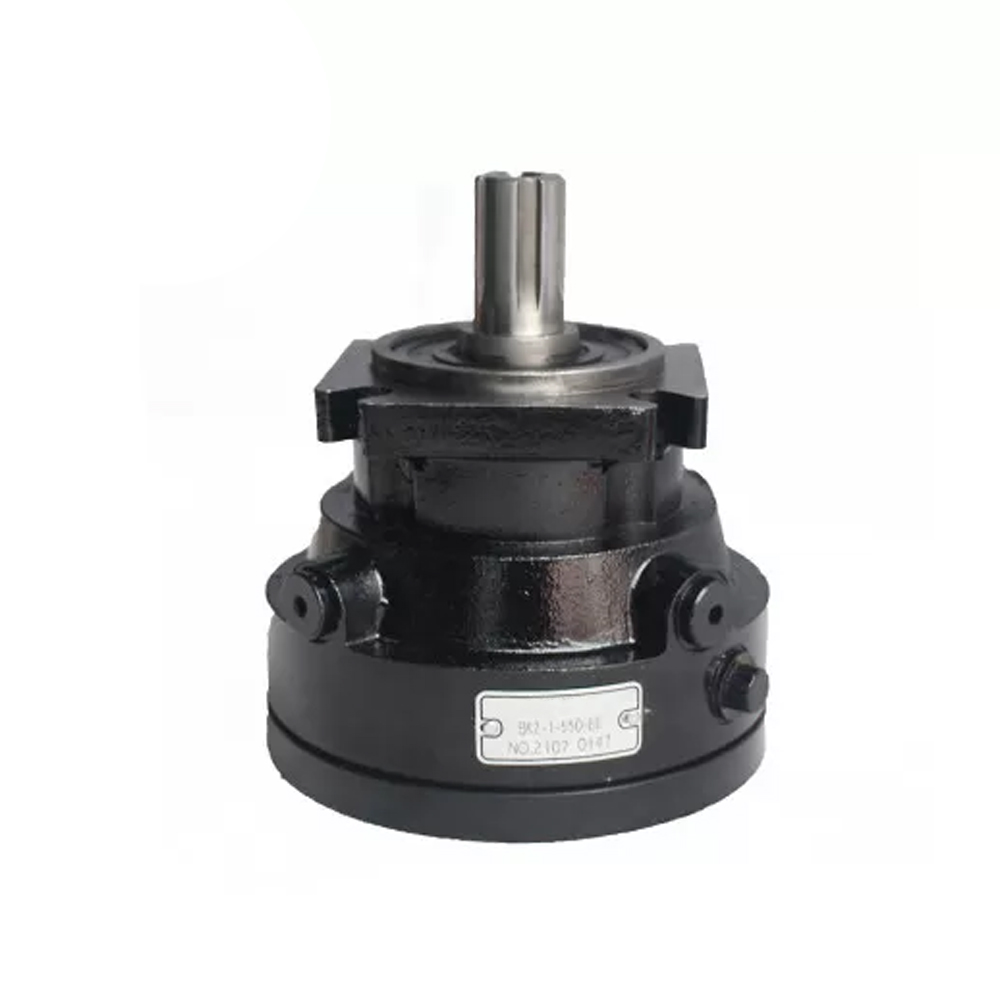

Item: Hydraulic Motor OEM #: BK2
Manufacturer: Xeriwell
Static Torque: 32 Da Nm
Max Pressure: 300 Bar Application: Locking For Engine BMP, BMR, BMS
Highlight:

omp danfoss hydraulic motor

,

omr danfoss hydraulic motor

,

300 bar danfoss oms motor


Locking for engine Danfoss OMP, OMR, OMS, Static torque 32 da Nm, Maximum pressure 300 bar

This is an Danfoss similar motor brake, it's not made by Danfoss, it's made by Xeriwell.

BK2 series brake is one kind of hydraulic wet disc brake. The brake force is caused by the spring, and hydraulic pressure releases the brake force. This brake is only used in static parking brake. Dynamic braking is not recommended.

Features as follows:
* BK2 series adopts the special friction disc and high strength spring design: long
life endurance, low noise, high braking reliability.
* with 4 Drain port design , the brake can be used in different applications.
* compact structure, easy mounting.
* it can be used preferentially together with BMP, BMR, BMS series hydraulic motor.

Technical information

* Quantity horizontal oil: 0.05 litre.
* Quantity vertical oil: 0.1 litre.
* Viscosity: ISO VG32.
* Static torque: 32 da Nm.
* Minimum opening pressure: 16 bar.
* Maximum pressure: 300 bar.
* Oil capacity for opening 3 to 4 cm3.
FEATURES OF PRODUCT

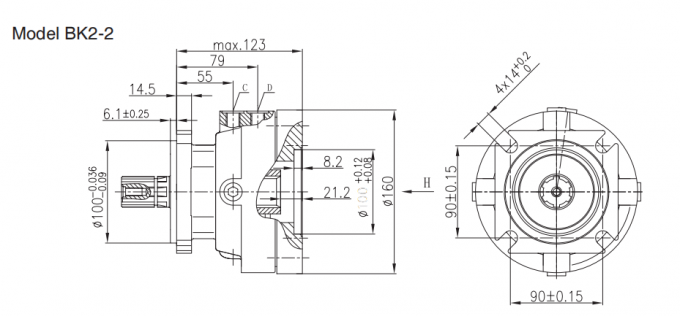

Item BK2-1 BK2-2
Min. static torque Nm 200 - 230 410-450
Min. opening pressure MPa 1.7~2.3
Max. opening pressure MPa 30
Min. oil quantity for brake releasing cm3 7~8
Oil volume cm3 50~120
Max. pressure in drain space MPa 0.05
Weight kg 9 9.5
