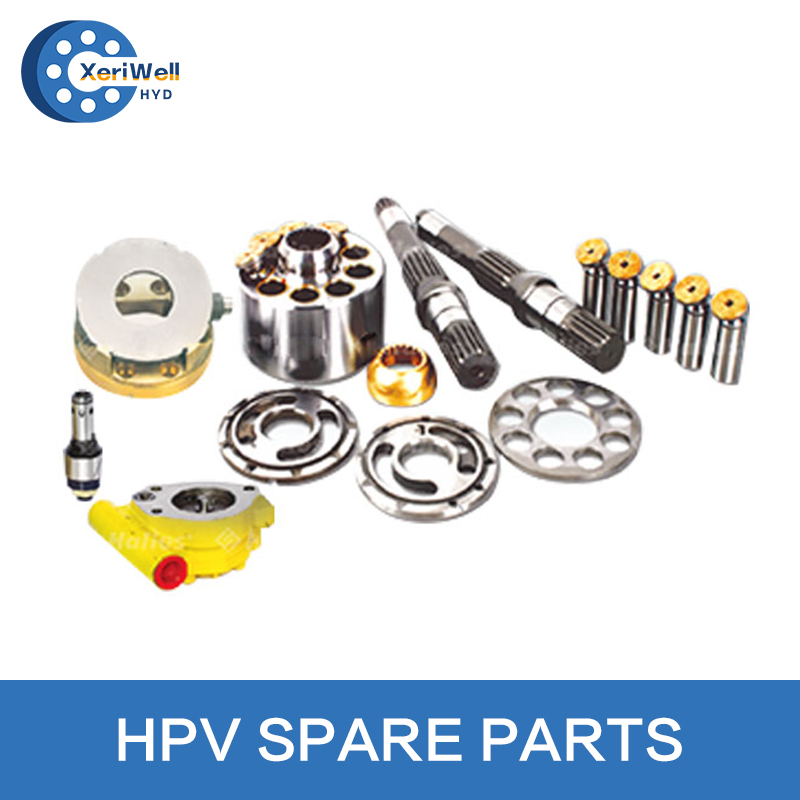

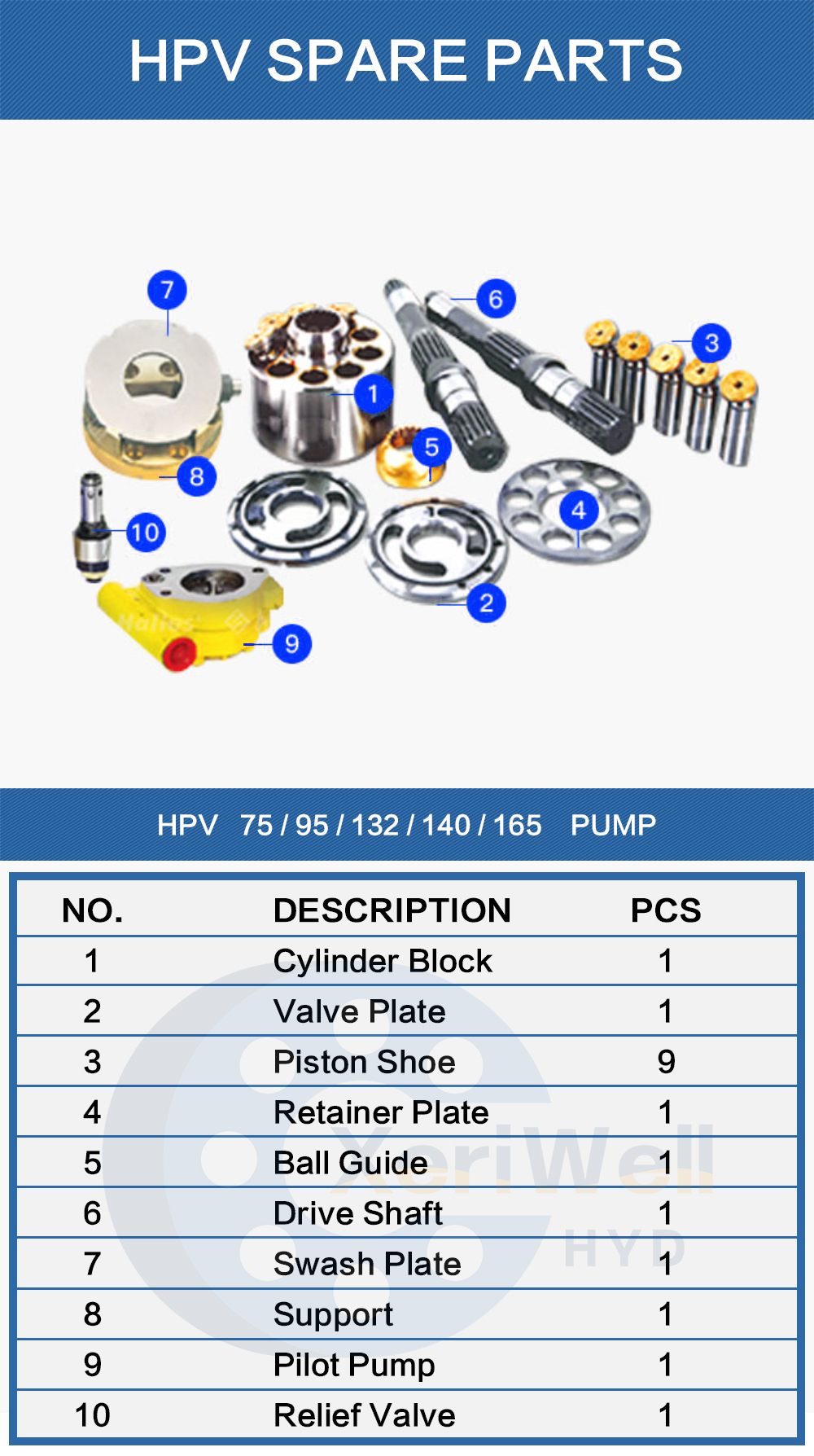

| spare parts avaliable: | |
| Quantity: | |
HPV
Xeriwell or Others

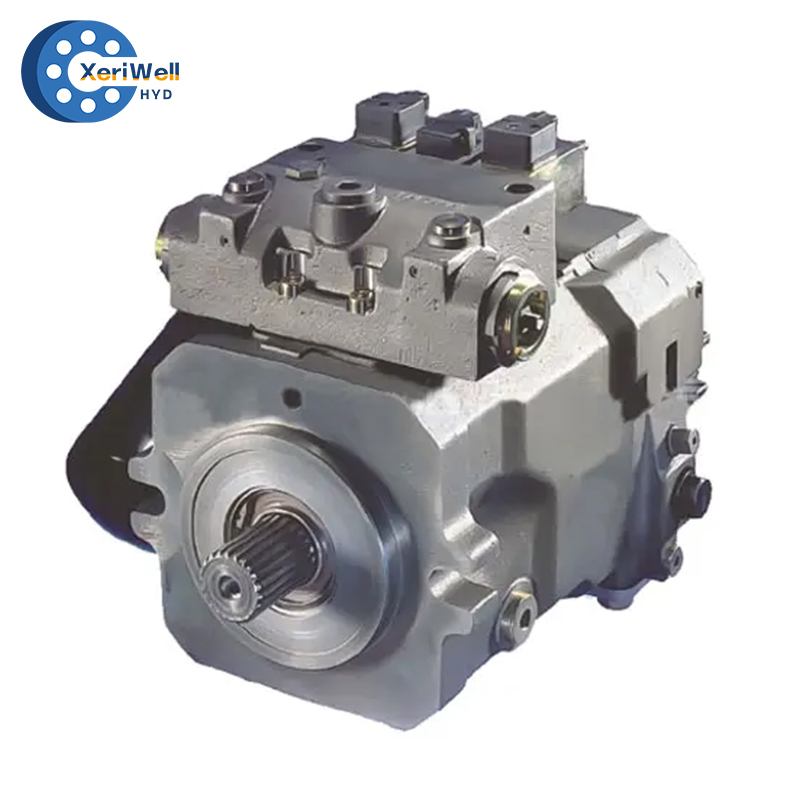

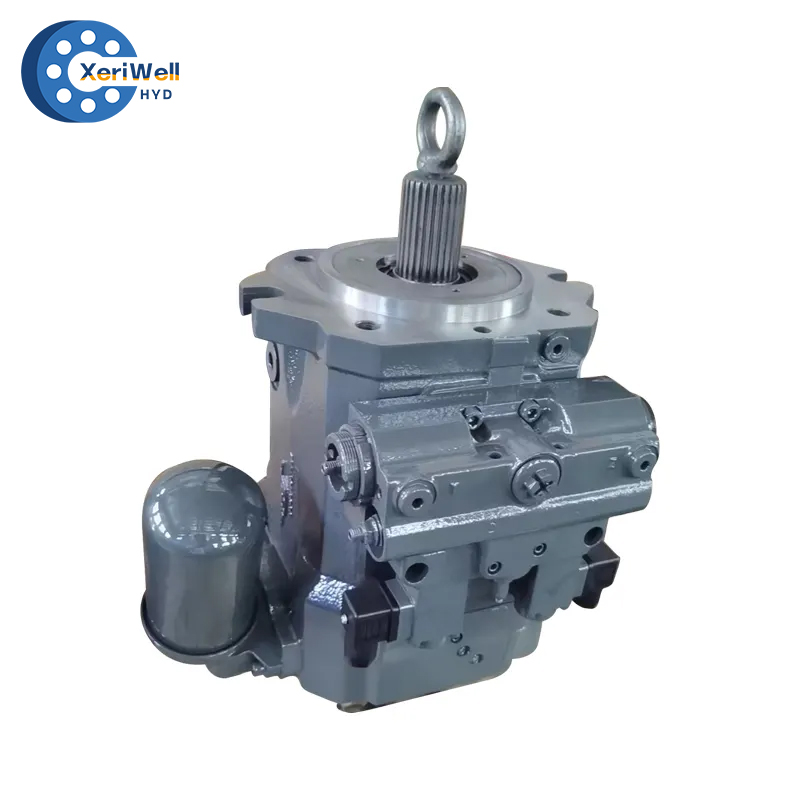

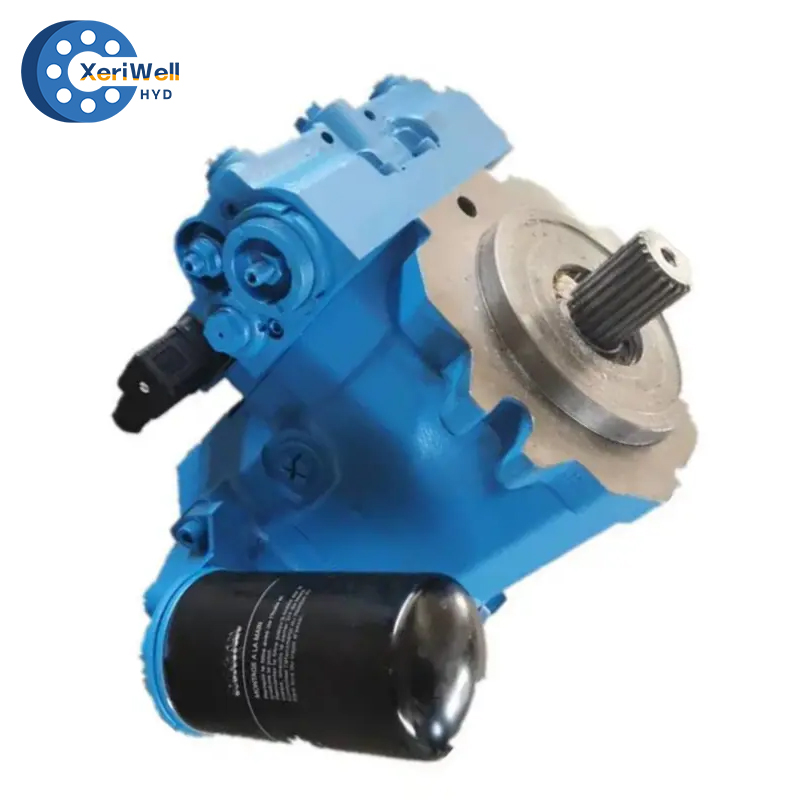

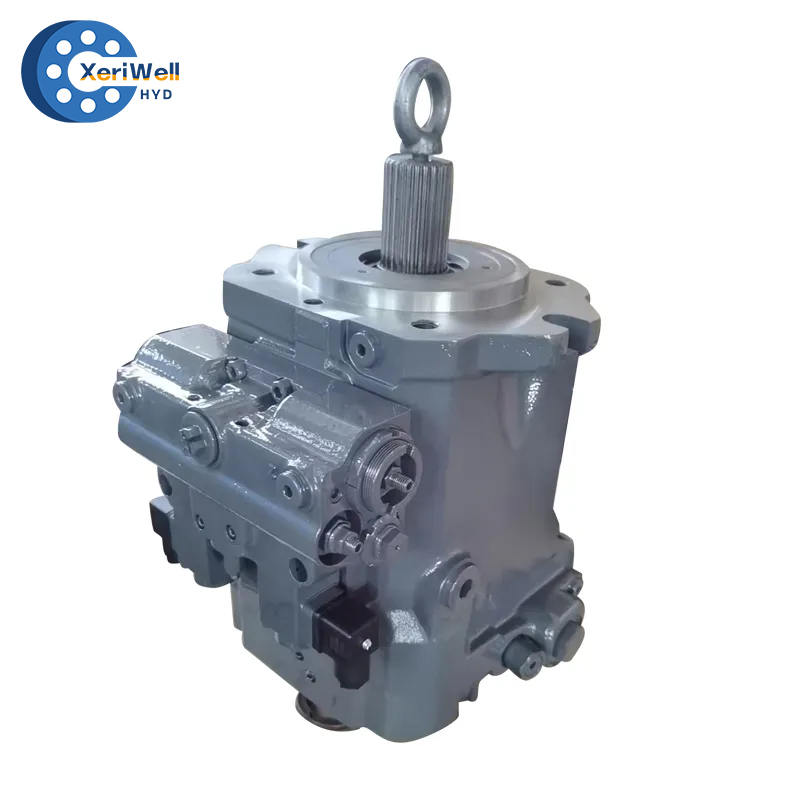

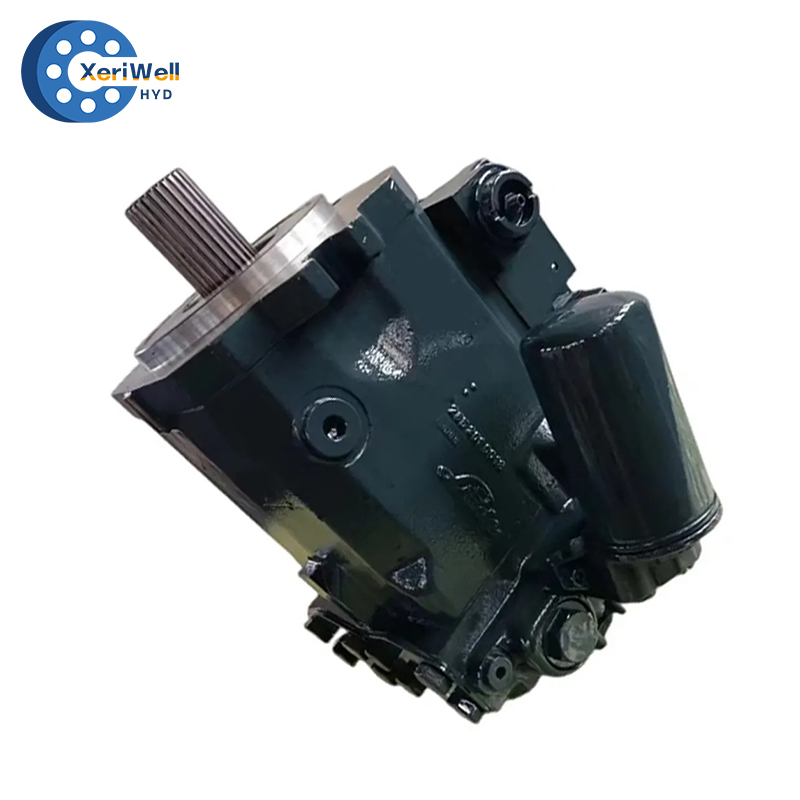

The Linde HPV series hydraulic pumps are advanced variable displacement axial piston pumps tailored for closed-loop systems. Designed for high-pressure operations, the HPV series delivers outstanding efficiency, reliability, and precision control for demanding applications such as construction, agriculture, and industrial machinery.
Features:
1）High Pressure Capability: The HPV pumps support continuous operating pressures up to 450 bar, with peak pressures reaching 500 bar, ensuring excellent performance in challenging conditions.
2）Compact and Robust Design: Featuring a space-saving swash plate construction, the pumps provide a high power-to-weight ratio, making them ideal for compact system layouts.
3）Advanced Control Options: The series offers flexible control systems, including mechanical, hydraulic, and electro-hydraulic options, to suit diverse application needs.
4）Integrated Safety and Efficiency Features: Equipped with integrated high-pressure and low-pressure relief valves, as well as a replaceable cartridge filter, the HPV pumps ensure safe and efficient operation.
5）Versatile Configuration: Available in a range of displacements (55 cc to 280 cc per revolution), the HPV series can be configured as tandem or multiple pumps for complex hydraulic systems.
The Linde HPV hydraulic pump combines innovative design and robust engineering, making it a trusted solution for high-performance hydraulic systems across various industries.
Type: HPV55-02, HPV75-02, HPV105-02, HPV135-02, HPV165-02, HPV210-02, HPV280-02
| Rated size | 55 | 75 | 105 | 135 | 165 | 210 | 280 | ||
| Maximum displacement | cc/rev | 54.7 | 75.9 | 105 | 135.7 | 165.6 | 210.1 | 281.9 | |
| Speed | Max. operating speed | rpm | 3900 | 3400 | 3200 | 3000 | 2750 | 2300 | 2400 |
| Maximum speed* | rpm | 4150 | 3600 | 3400 | 3200 | 2950 | 2500 | 2550 | |
| Min. operating speed | U/min | 500 | |||||||
| Pressure | Nominal pressure | bar | 450 | ||||||
| Maximum pressure** | bar | 500 | |||||||
| Perm. housing pressure | bar | 2.5 | |||||||
| Torque | Torque (△p=430 bar;charge pressure=20 bar) | Nm | 374 | 519 | 719 | 929 | 1133 | 1438 | 1929 |
| Power | Corner power (theoretical) | kW | 153 | 185 | 241 | 292 | 326 | 346 | 485 |
| Permissible shaft loads | Axial | N | 2000 | ||||||
| Radial | N | on request | |||||||
| Perm. housing temperature | Perm. housing temperature with minimum perm. viscosity >10 cSt | °C | 90 | ||||||
| Weights inclusive IGP (Size 55-135) or EGP (Size 210-280) | Weight,approx. Without oil,with H1 control | kg | 46 | 49 | 66 | 72 | 113 | 132 | 164 |
| Filling volume HPV-02 housing with filter | dm3 | 2.1 | 2.8 | 3.4 | 3.8 | 4.2 | 4.8 | 5.5 | |
| Maximum moment of inertia | kgm2x 10-2 | 0.54 | 0.84 | 1.49 | 2.2 | 3.11 | 4.77 | 9.38 | |
