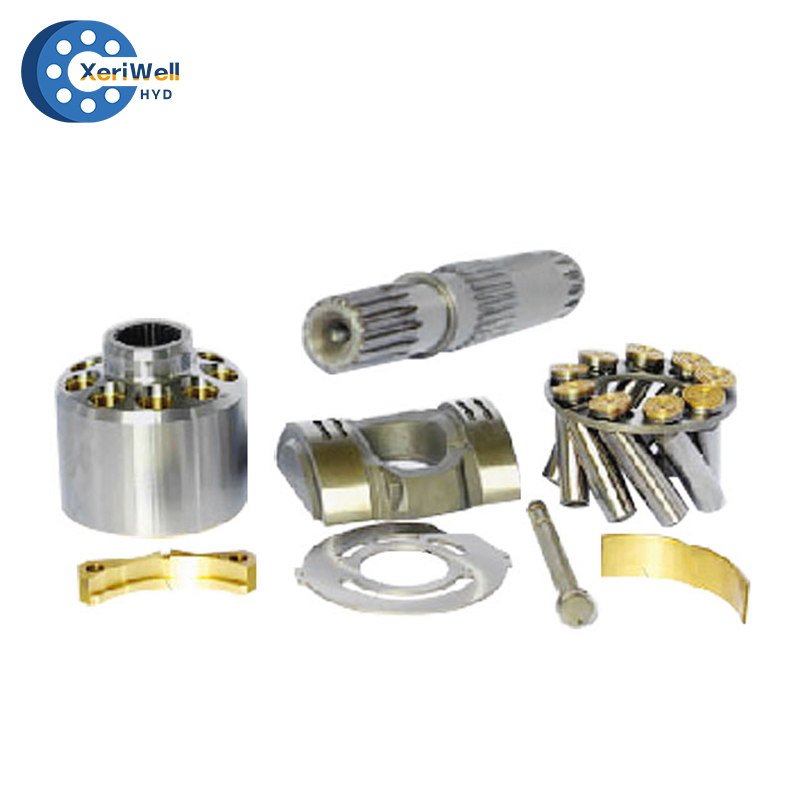

| spare parts avaliable: | |
| Quantity: | |
HPR
Xeriwell or Others

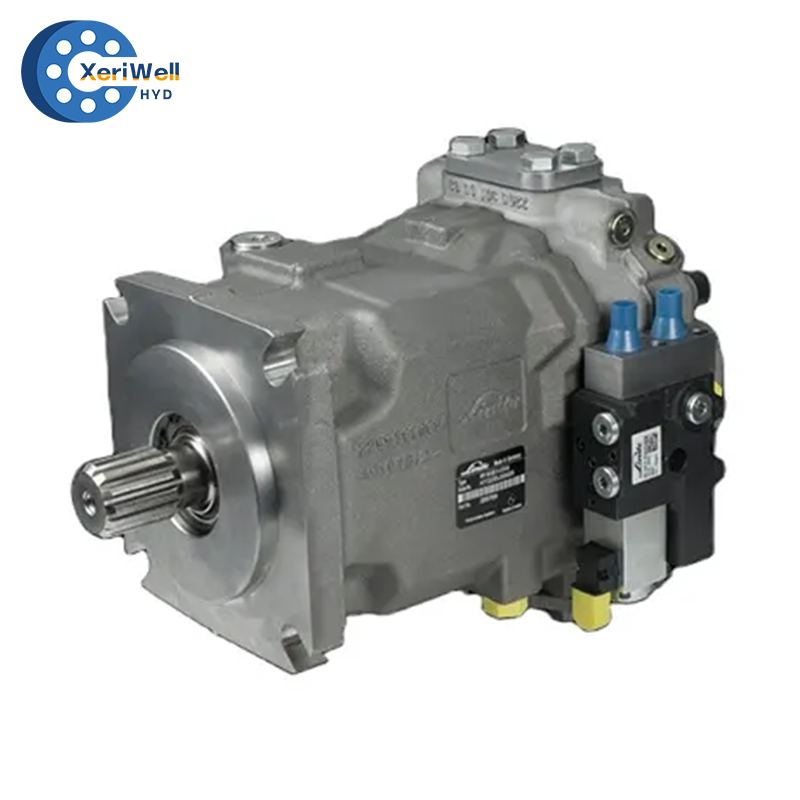

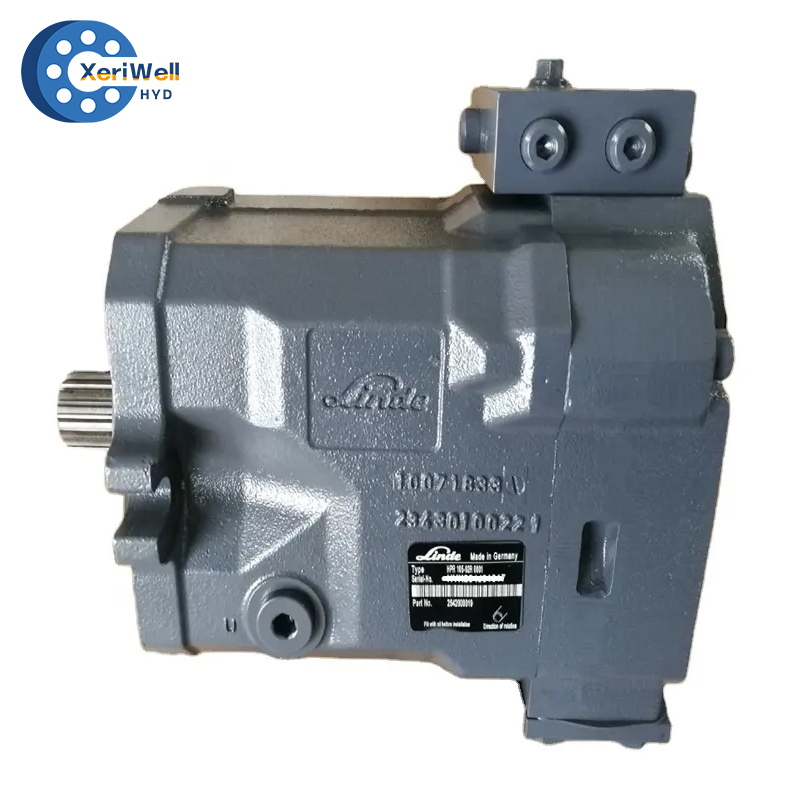

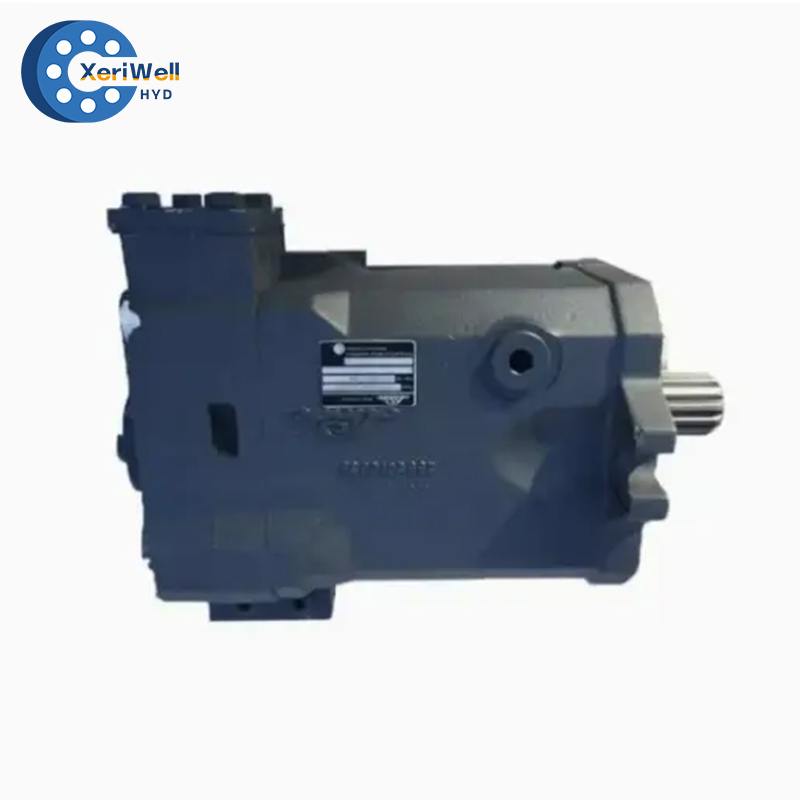

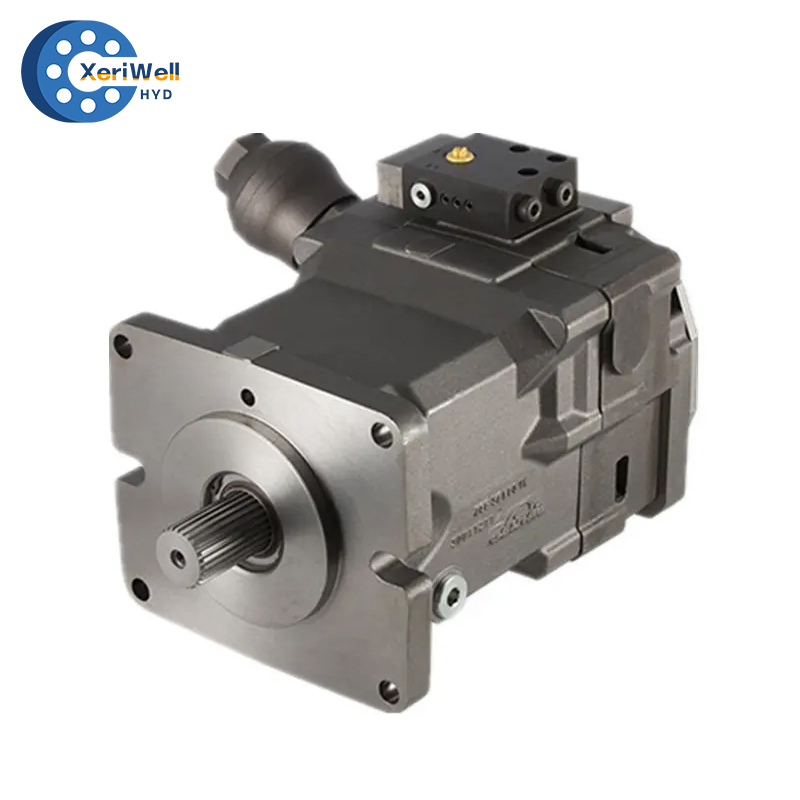

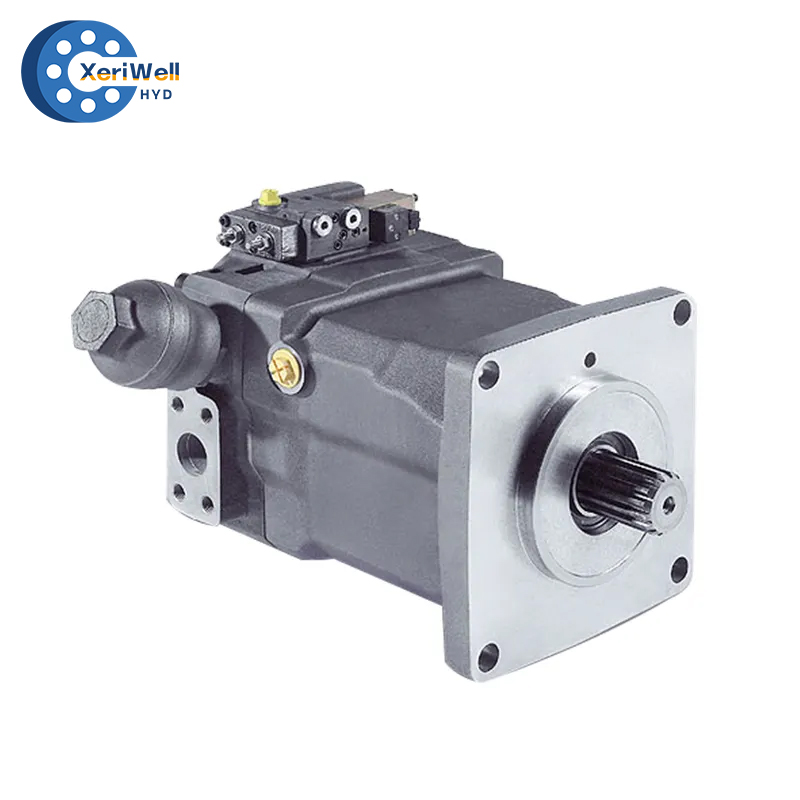

The Linde HPR series hydraulic pumps are high-performance, self-regulating pumps designed for open-circuit systems. They offer exceptional durability, precision, and adaptability, making them suitable for various industrial and mobile applications.
Features:
1）High Pressure Capacity: The HPR series operates at pressures up to 420 bar, with peak pressure capability reaching 500 bar, ensuring reliable performance under demanding conditions.
2）Energy-Efficient Operation: Featuring "flow on demand" control, the pump minimizes energy consumption by adjusting hydraulic output to meet system requirements.
3）Dynamic Performance: With excellent suction capabilities and responsive control mechanisms, the HPR pumps deliver stable and precise hydraulic flow across a wide range of operating speeds.
4）Noise Reduction Technology: The integration of SPU (Silencer Pulsation Unit) reduces pressure pulsations by up to 70%, ensuring quieter operation in sensitive environments.
5）Modular and Versatile Design: The HPR series supports various configurations, including tandem and multiple pump setups, with compatibility for SAE high-pressure ports and a range of mounting flanges.
The Linde HPR series hydraulic pumps are ideal for industries requiring efficient and robust hydraulic solutions, such as construction, material handling, and energy production.
Type: HPR55-02, HPR75-02, HPR105-02, HPR135-02, HPR165-02, HPR210-02, HPR280-02, HPR105D-02, HPR125D-02, HPR165D-02
| Rated size | 55 | 75 | 105 | 135 | 165 | 210 | 280 | 105D | 125D | 165D | |||
| Max. displacement | cc/rev | 55 | 75.9 | 105 | 135.7 | 165.6 | 210.1 | 281.9 | 210 | 250 | 331.2 | ||
| Speed | Max. operating speed Without tank pressurization* | rpm | 2700 | 2500 | 2350 | 2300 | 2200 | 2100 | 2000 | 2450 | 2400 | 2100 | |
| Volume flow** | Max. oil flow | l/min | 148.5 | 189.8 | 246.8 | 312.1 | 364.3 | 441.2 | 563.8 | 514.5 | 600 | 695.5 | |
| Pressure | Nominal pressure | bar | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 380 | 420 | |
| Max. pressure*** | bar | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 420 | 500 | ||
| Perm. housing pressure | bar | 2.5 | |||||||||||
| Torque** | Max. input torque Max. oper. pressure and Vmax | Nm | 368 | 507 | 702 | 907 | 1107 | 1404 | 1884 | 1245 | 1245 | 1964 | |
| Power** | Corner power (theoretical) at nominal pressure &max. operating speed | kW | 104 | 132.8 | 172.7 | 218.5 | 255 | 308.8 | 394.7 | 319.4 | 337 | 431.8 | |
| Response times Measured at fluid viscosity 20 cSt and input speed 1500 rpm | Vmax->Vmin Swashing at constant max. system pressure HP | HP 100 bar | ms | 120 | 120 | 120 | 140 | 150 | 200 | 300 | 200 | 140 | 150 |
| HP 200 bar | ms | 70 | 70 | 70 | 70 | 130 | 170 | 270 | 170 | 120 | 130 | ||
| Vmin->Vmax Swashing from stand-by pressure and zero flow to system pressure HP | HP 100 bar | ms | 180 | 180 | 180 | 180 | 180 | 180 | 430 | 160 | 180 | 180 | |
| HP 200 bar | ms | 160 | 160 | 160 | 160 | 160 | 160 | 350 | 160 | 160 | 160 | ||
| Permissible shaft loads | Axial | N | 2000 | ||||||||||
| Radial | N | on request | |||||||||||
| Permissible housing temp. | Perm. housing temp. With min. perm. viscosity >10 cSt | °C | 90 | ||||||||||
| Weights | HPR-02 without Oil (approx.) | kg | 39 | 39 | 50 | 65 | 89 | 116 | 165 | 96 | 113 | 177 | |
| Max. moment of inertia | kgm2x 10-2 | 0.79 | 0.79 | 1.44 | 2.15 | 3.41 | 4.68 | 8.34 | 2.88 | 2.95 | 6.88 | ||
