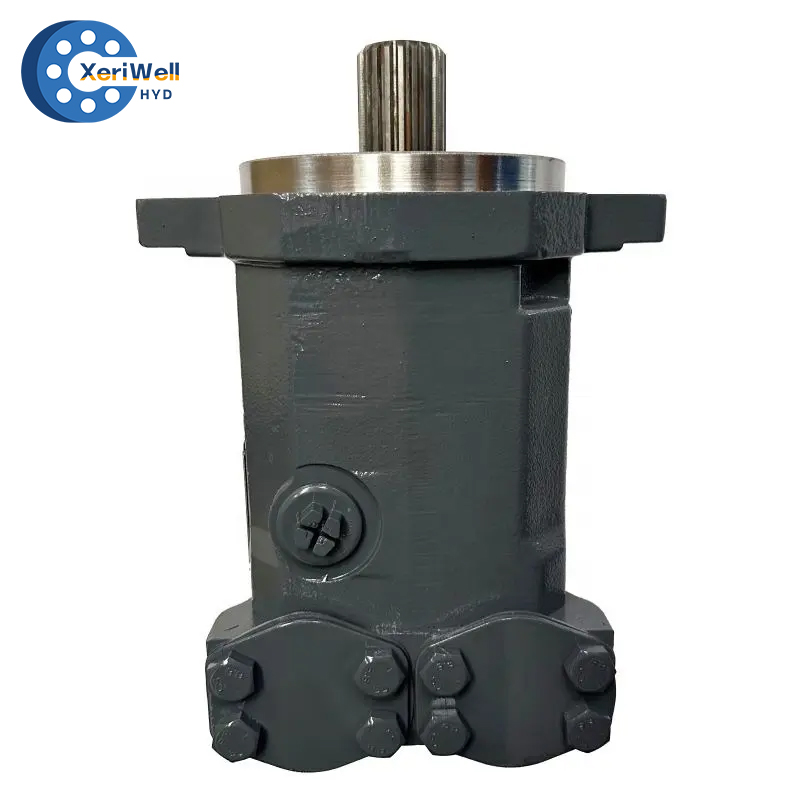

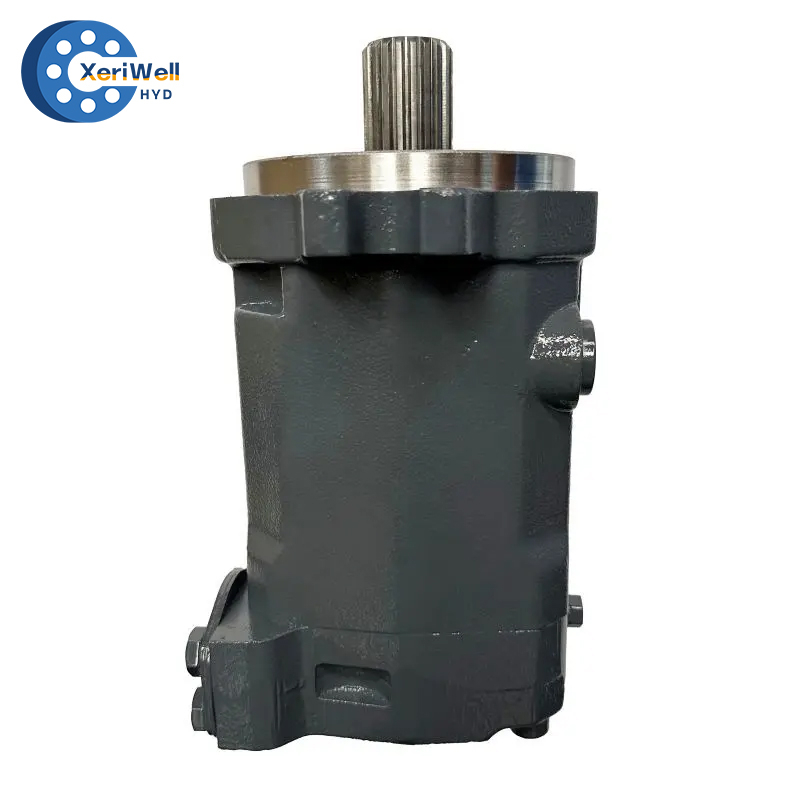

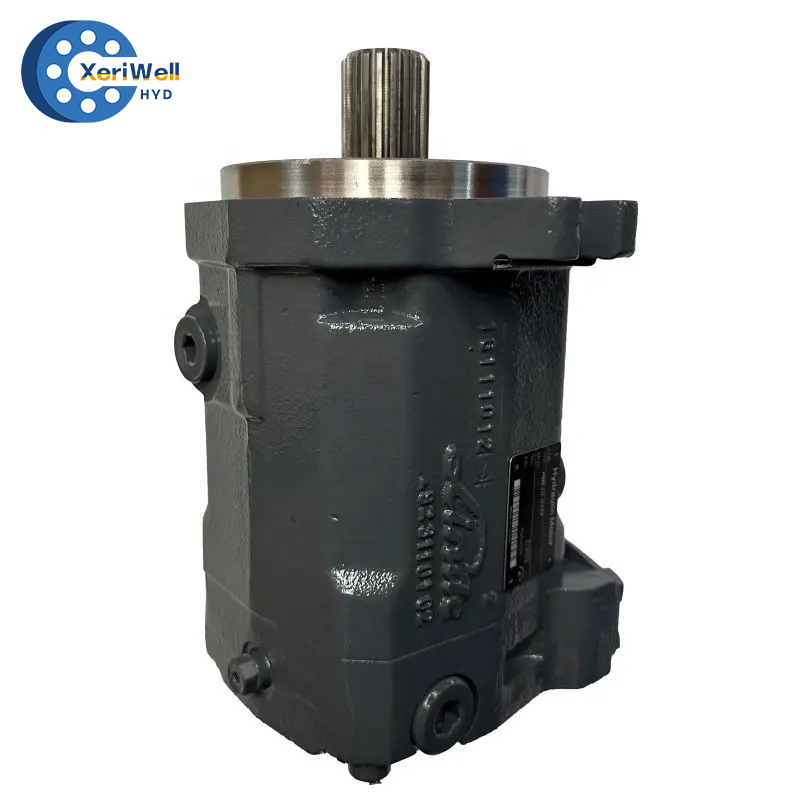

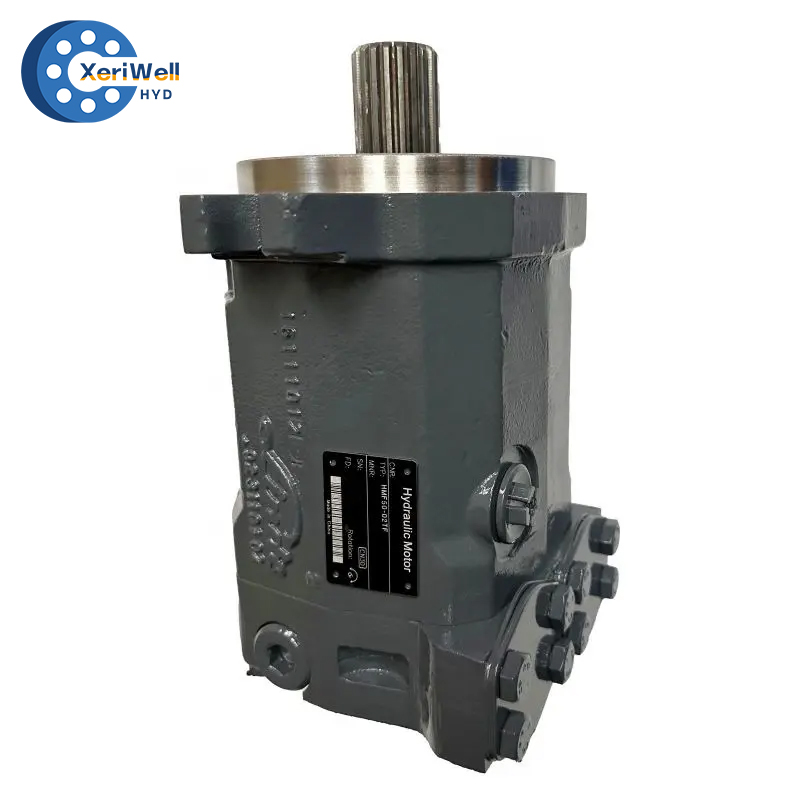

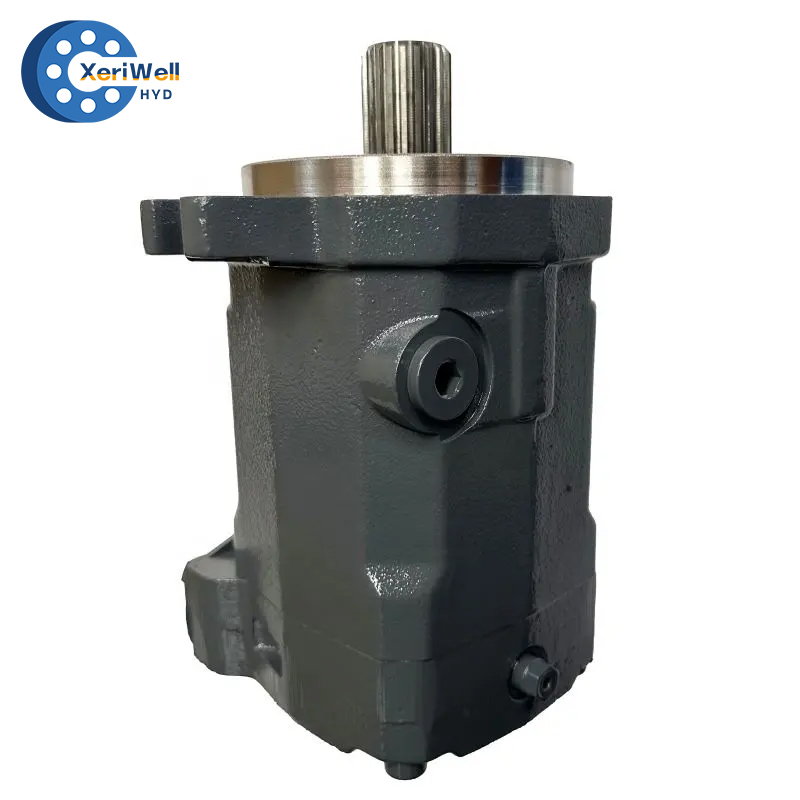

Linde HMF Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	HMF28 HMF35 HMF50 HMF55 HMF63 HMF75 HMF85 HMF105 HMF135 HMF165 HMF210 HMF280

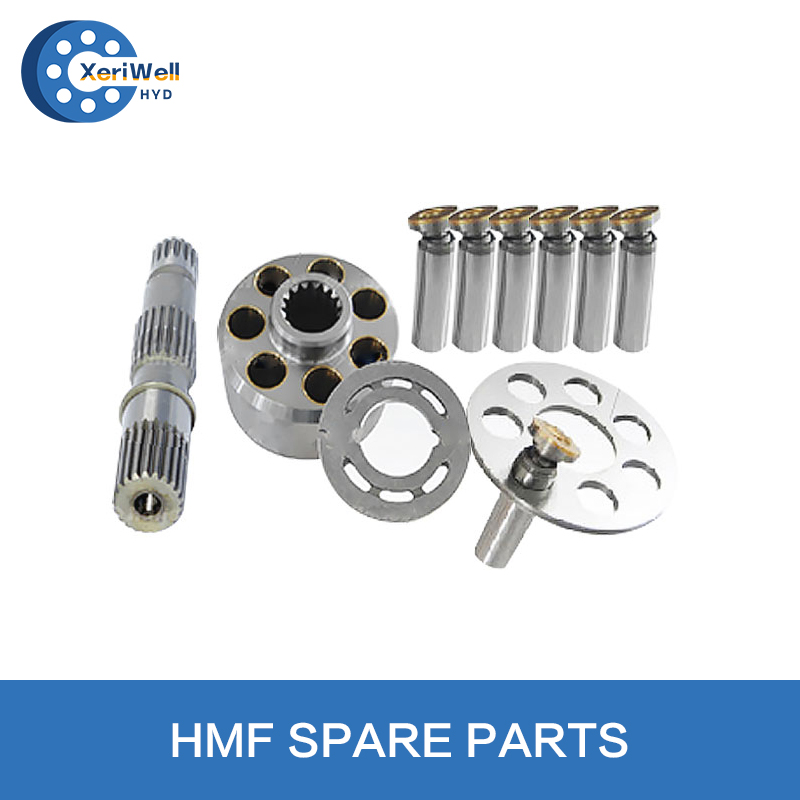

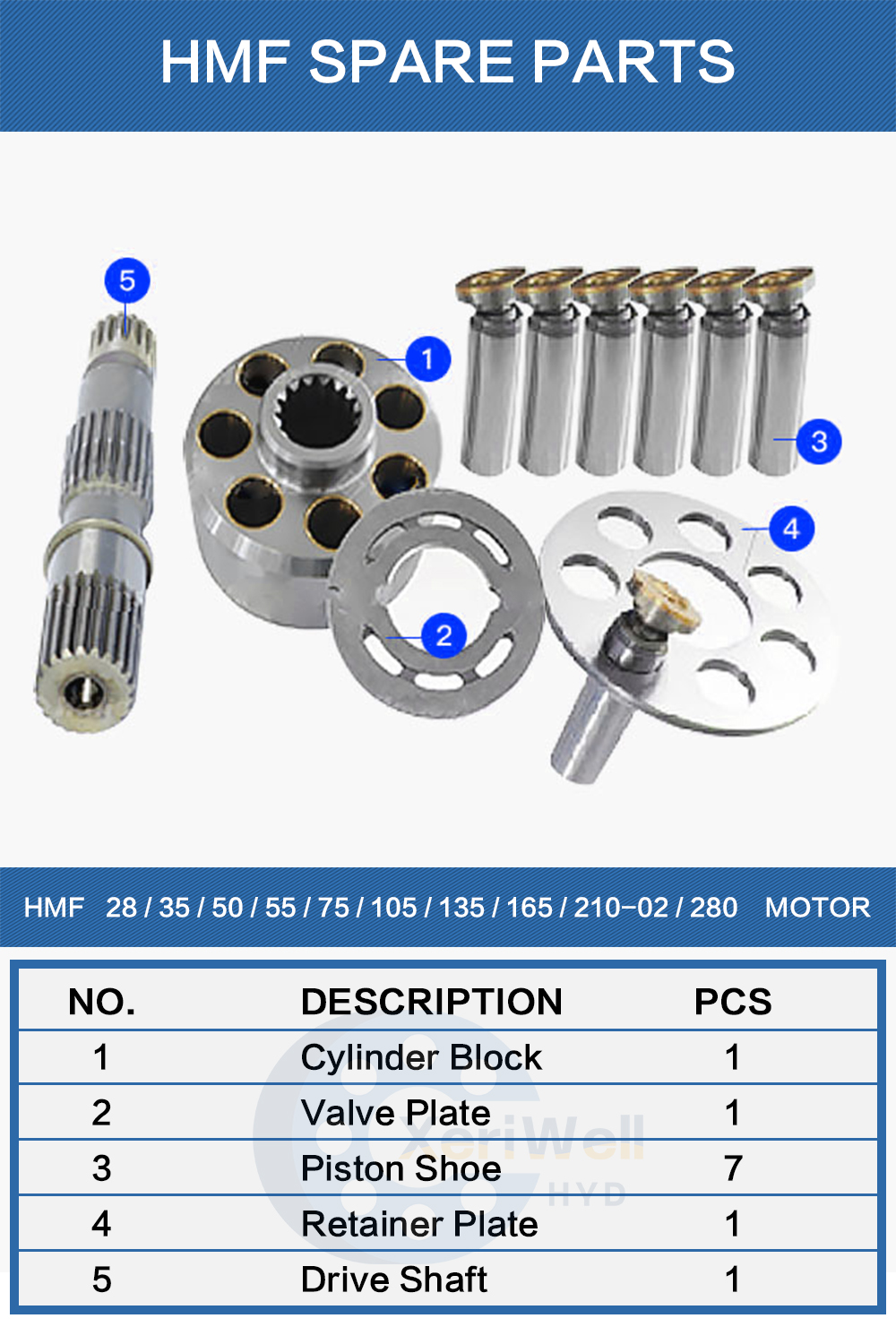

Spare Parts:	Cylinder Block Valve Plate Piston Shoe Retainer Plate Drive Shaft
Availability:





Inquire Add to Basket

Model:
HMF
Brand:
Xeriwell or Others

Product Description

Linde HMF Hydraulic Motor Product Introduction

Linde HMF-02 motor is a high-pressure fixed displacement motor for open and closed loop operation. Secondary valves enable customised definition of soft motor start-up and slowdown. With dual setting secondary valves the maximum acceleration and braking torque is additionally available. The setings and shiting ranges can be adiusted according to project-specific requirements.

Further features:

1) optimised start-up and low-speed characteristics

2) optionally with purge valves for purge and case flushing

3) fixed and dual setting secondary valves optional

Product benefits:

1) smooth low-speed operation

2) high starting torque

3) compact design

4) high power density

5) high reliability

6) long service life

Type: HMF28-02, HMF35-02, HMF55-02, HMF63-02, HMF75-02, HMF85-02, HMF105-02, HMF135-02, HMF165-02, HMF210-02, HMF280-02

Linde HMF Hydraulic Motor catalogue pdf manual diagram

linde hmf 105-02 service manual

Linde HMF 28/35/50/55/63/75/85/105/135/165/210/280/-02 Hydraulic Motor Spare parts list

linde hmf 75

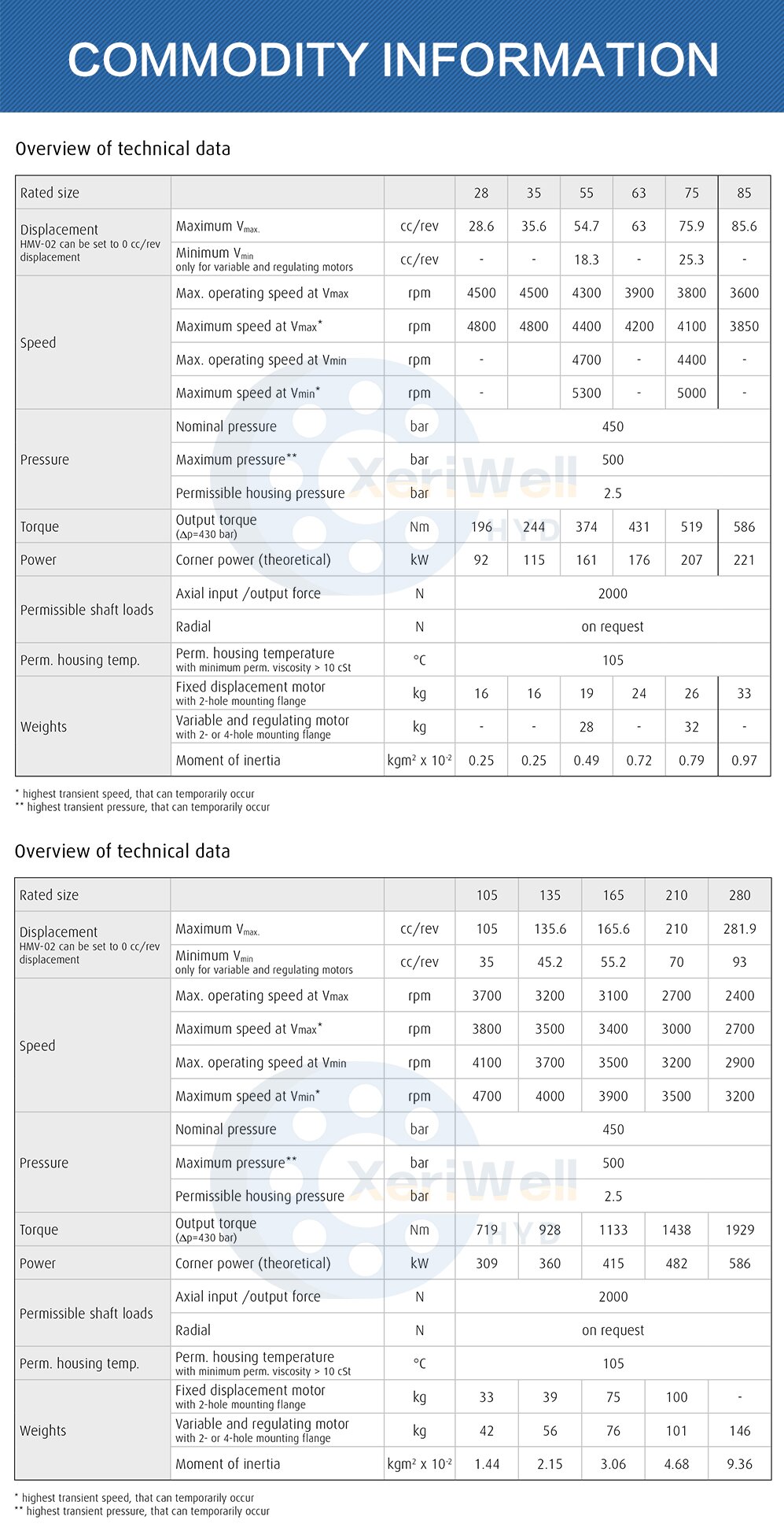

Overview of technical data

Rated size			28	35	55	63	75	85
Displacement HMV-02 can be set to 0 cc/rev displacement	Maximum Vmax	cc/rev	28.6	35.6	54.7	63	75.9	85.6
	Minimum Vmin only for variable and regulating motors	cc/rev	-	-	18.3	-	25.3	-

Speed	Max. operating speed at Vmax	rpm	4500	4500	4300	3900	3800	3600
	Maximum speed at Vmax*	rpm	4800	4800	4400	4200	4100	3850
	Max. operating speed at Vmin	rpm	-		4700	-	4400	-
	Maximum speed at Vmin*	rpm	-		5300	-	5000	-
Pressure	Nominal pressure	bar	450
	Maximum pressure**	bar	500
	Permissible housing pressure	bar	2.5
Torque	Output torque (△p=430 bar)	Nm	196	244	374	431	519	586

Power	Corner power (theoretical)	kW	92	115	161	176	207	221
Permissible shaft loads	Axial input /output force	N	2000
	Radial	N	on request
Perm. housing temp.	Perm. housing temperature with minimum perm. viscosity >10 cSt	°C	105

Weights	Fixed displacement motor with 2-hole mounting flange	kg	16	16	19	24	26	33

	Variable and regulating motor with 2- or 4-hole mounting flange	kg	-	-	28	-	32	-

	Moment of inertia	kgm2 x 10-2	0.25	0.25	0.49	0.72	0.79	0.97
* highest transient speed,that can temporarily occur ** highest transient pressure,that can temporarily occur

Overview of technical data

Rated size			105	135	165	210	280
Displacement HMV-02 can be set to 0 cc/rev displacement	Maximum Vmax	cc/rev	105	135.6	165.6	210	281.9
	Minimum Vmin only for variable and regulating motors	cc/rev	35	45.2	55.2	70	93

Speed	Max. operating speed at Vmax	rpm	3700	3200	3100	2700	2400
	Maximum speed at Vmax*	rpm	3800	3500	3400	3000	2700
	Max. operating speed at Vmin	rpm	4100	3700	3500	3200	2900
	Maximum speed at Vmin*	rpm	4700	4000	3900	3500	3200
Pressure	Nominal pressure	bar	450
	Maximum pressure**	bar	500
	Permissible housing pressure	bar	2.5
Torque	Output torque	Nm	719	928	1133	1438	1929
	(Δp=430 bar)
Power	Corner power (theoretical)	kW	309	360	415	482	586
Permissible shaft loads	Axial input /output force	N	2000
	Radial	N	on request
Perm. housing temp.	Perm. housing temperature with minimum perm. viscosity >10 cSt	°C	105

Weights	Fixed displacement motor with 2-hole mounting flange	kg	33	39	75	100	-

	Variable and regulating motor with 2- or 4-hole mounting flange	kg	42	56	76	101	146

	Moment of inertia	kgm² x 10-2	1.44	2.15	3.06	4.68	9.36
* highest transient speed,that can temporarily occur ** highest transient pressure,that can temporarily occur
