BMF
Xeriwell or Others

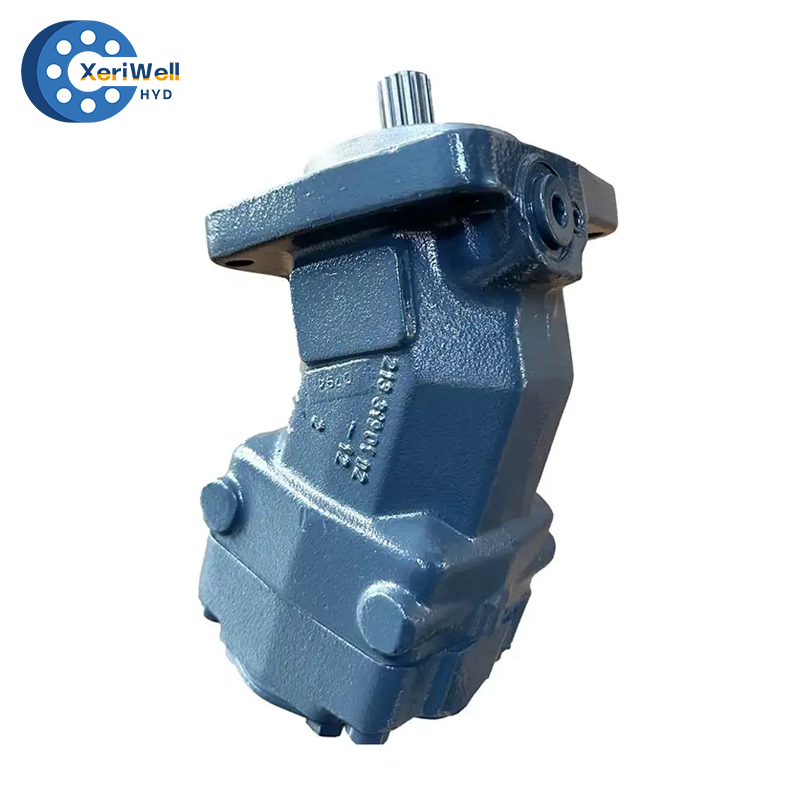

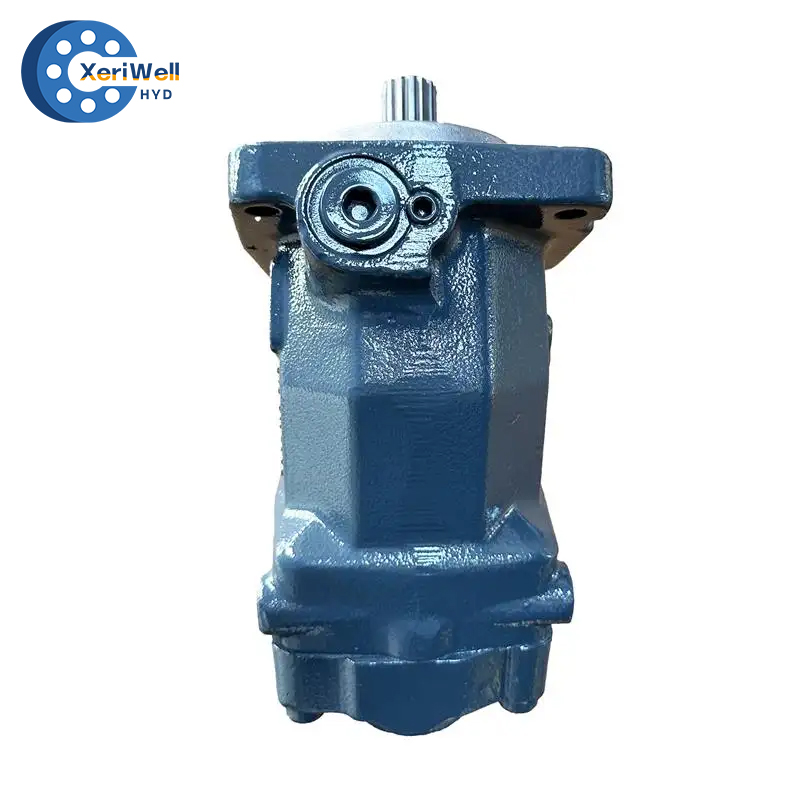

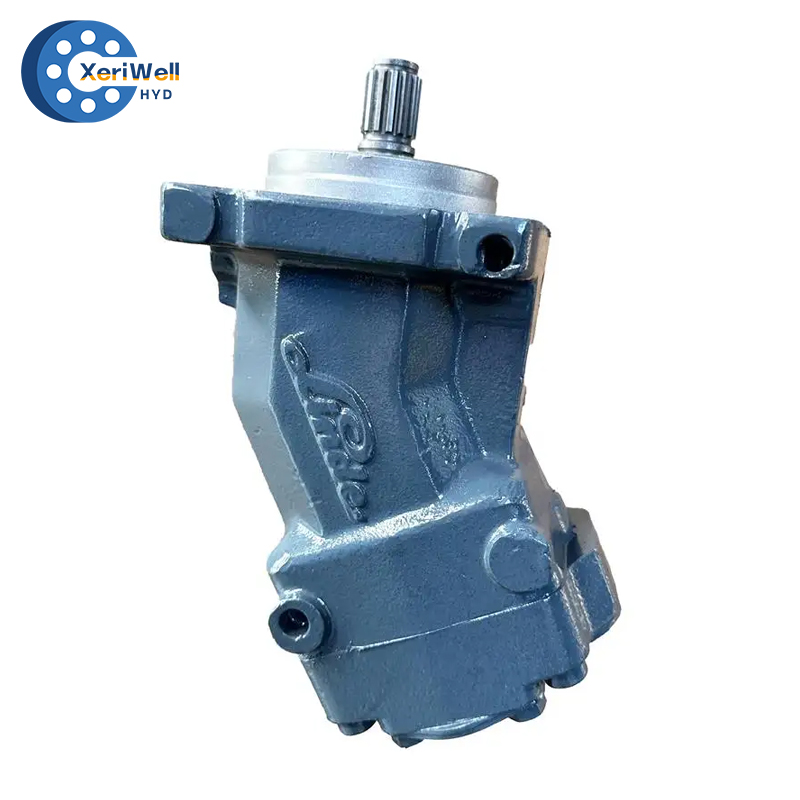

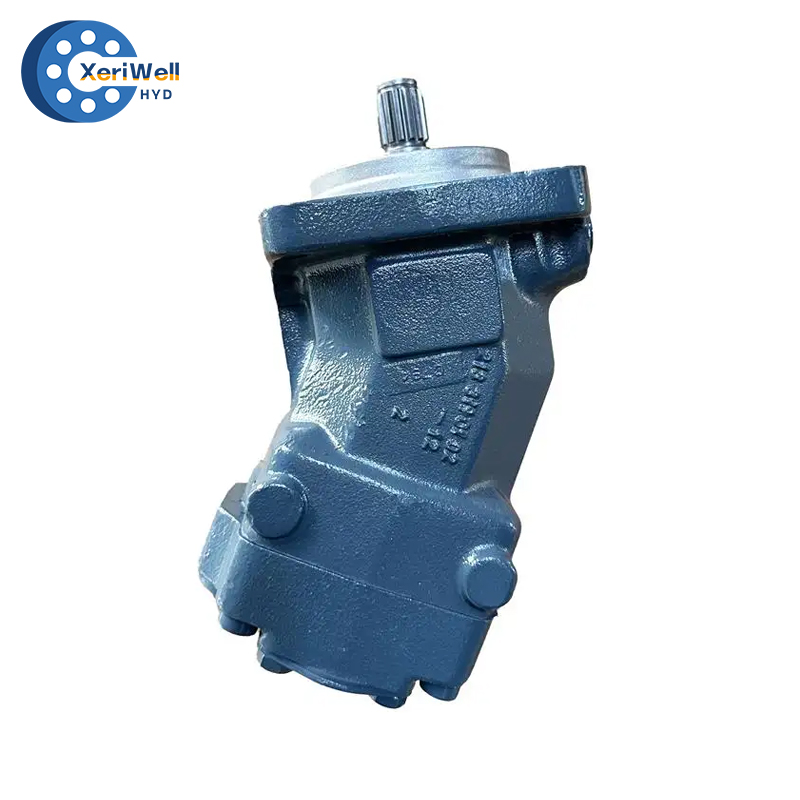

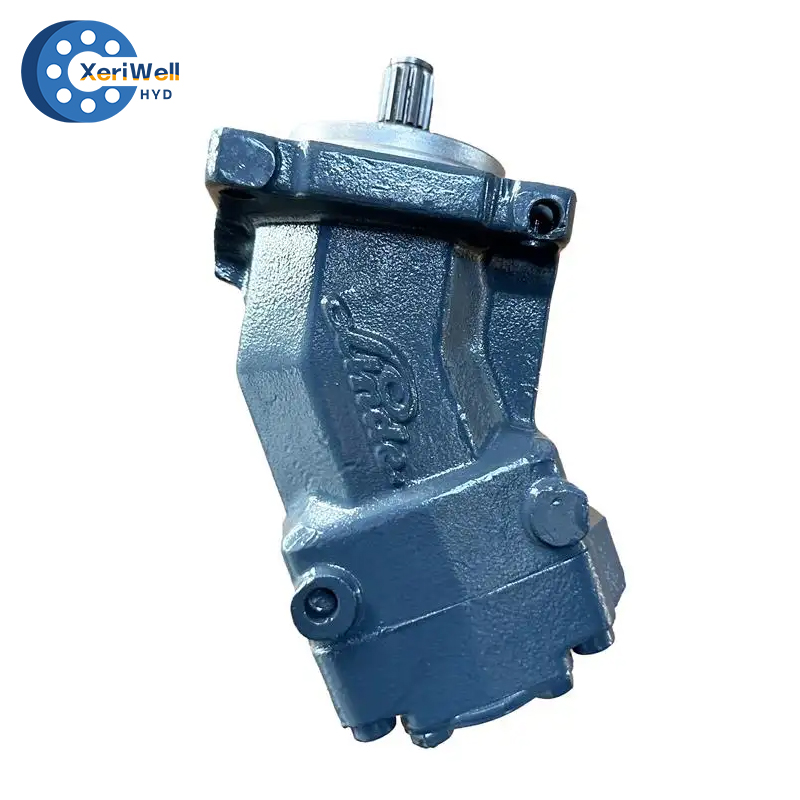

Linde BMF fixed displacement motors are bent axis units which are suitable for both open and closed loop systems.
If required, they can also be equipped with a purge valve for circuit andcase flushing.
Coupling flanges are likewise available as an optional extra.
Features:
1) Bent axis fixed displacement motor with a tilt angle of 28°
2) Extremely robust rotary group with drive shaft rated for side loads
3) SAE high-pressure ports
4) Optional purge valve for circuit and case flushing
5) No additional piping required for circuit and case flushing
6) Particularly quiet operation
7) Ultra-short design
8) Clockwise and anti-clockwise rotation
Type: BMF35, BMF50, BMF55, BMF75, BMF105, BMF140, BMF186, BMF260

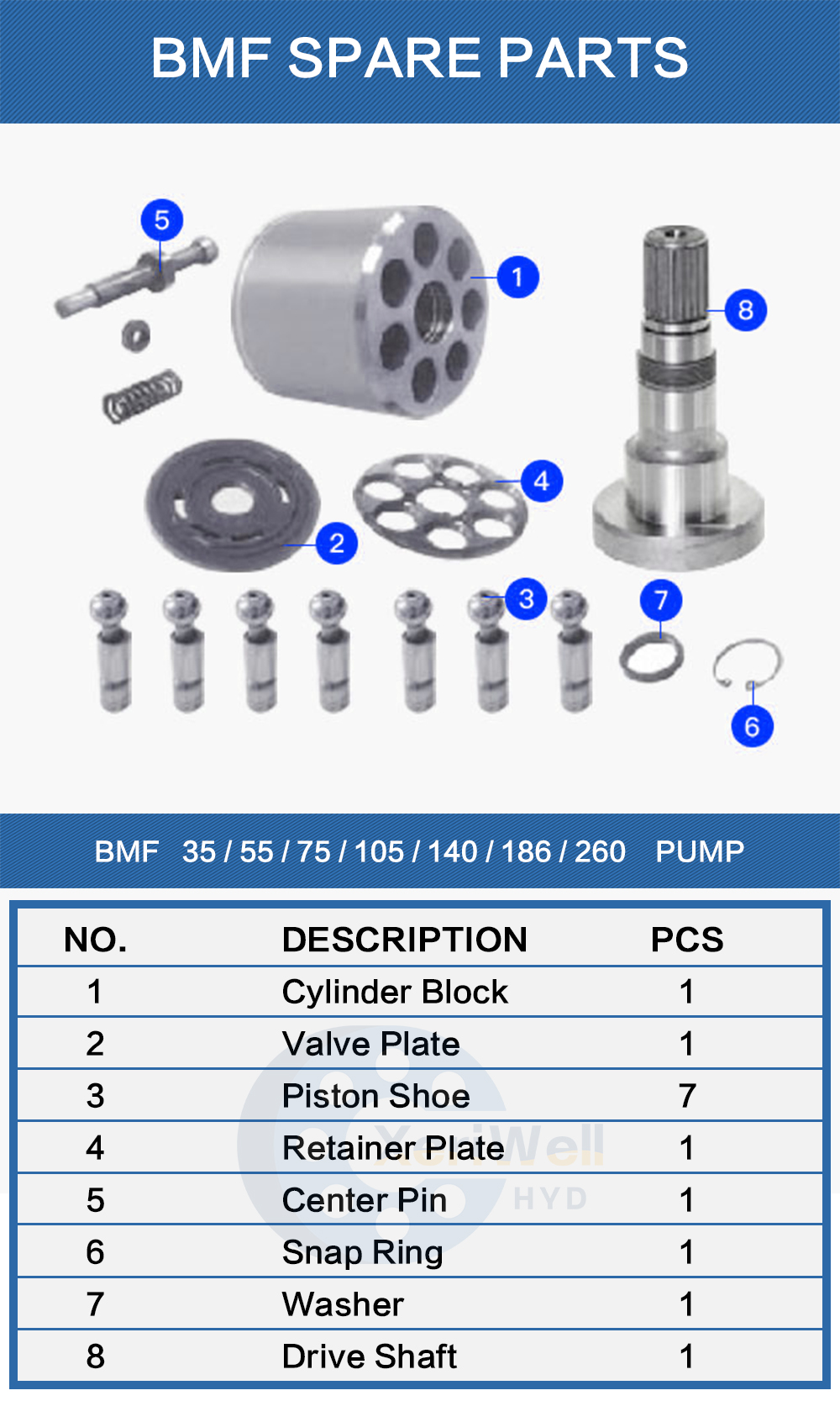

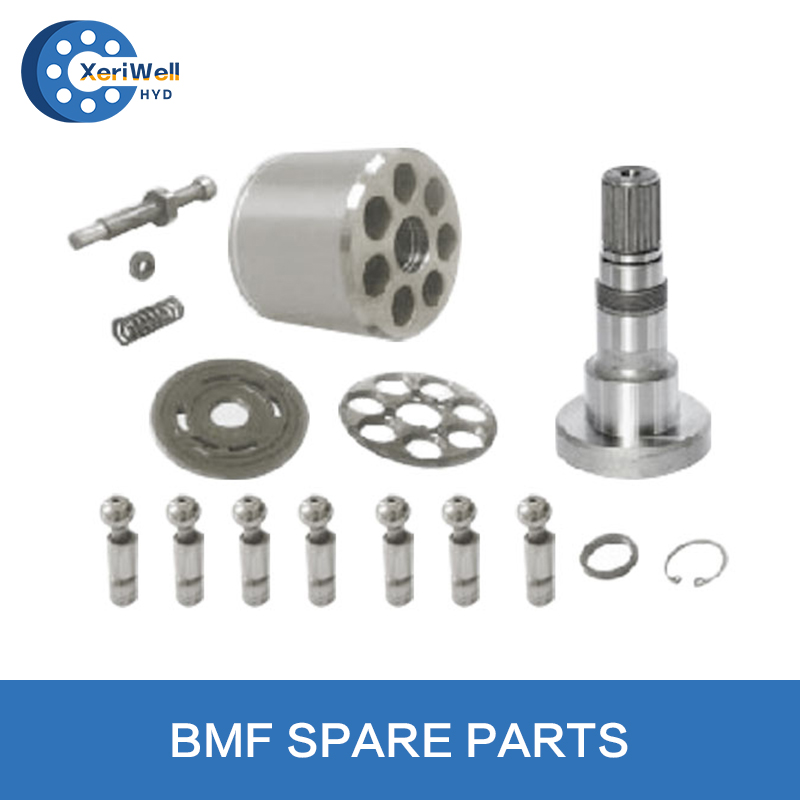

Linde BMF Hydraulic Motor 35/50/55/75/105/140/186/260 Hydraulic motor spare parts list:

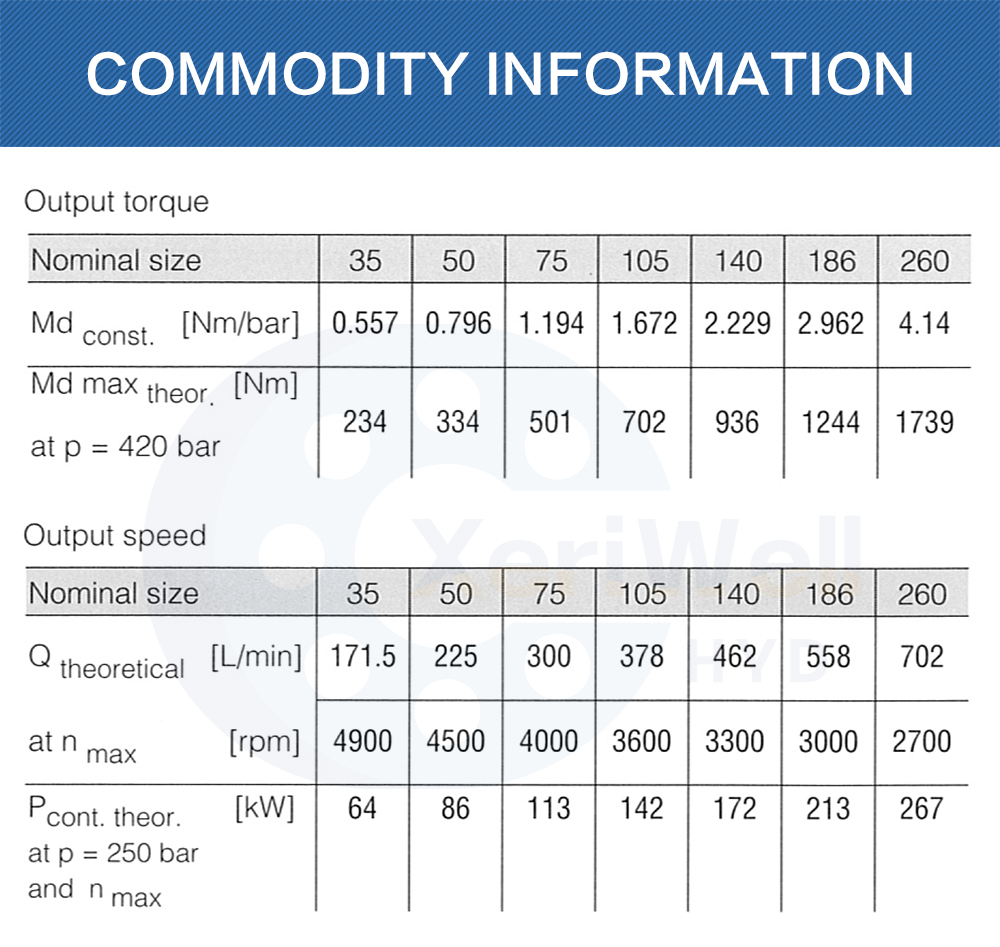

| Output torque | |||||||
| Nominal size | 35 | 50 | 75 | 105 | 140 | 186 | 260 |
| Mdconst.[Nm/bar] | 0.557 | 0.796 | 1.194 | 1.672 | 2.229 | 2.962 | 4.14 |
| Md maxtheor.[Nm] at p = 420 bar | 234 | 334 | 501 | 702 | 936 | 1244 | 1739 |
| Output speed | |||||||
| Nominal size | 35 | 50 | 75 | 105 | 140 | 186 | 260 |
| Qtheoretical[L/min] | 171.5 | 225 | 300 | 378 | 462 | 558 | 702 |
| at nmax[rpm] | 4900 | 4500 | 4000 | 3600 | 3300 | 3000 | 2700 |
| Pcont. theor.[kW] at p = 250 bar and n max | 64 | 86 | 113 | 142 | 172 | 213 | 267 |
