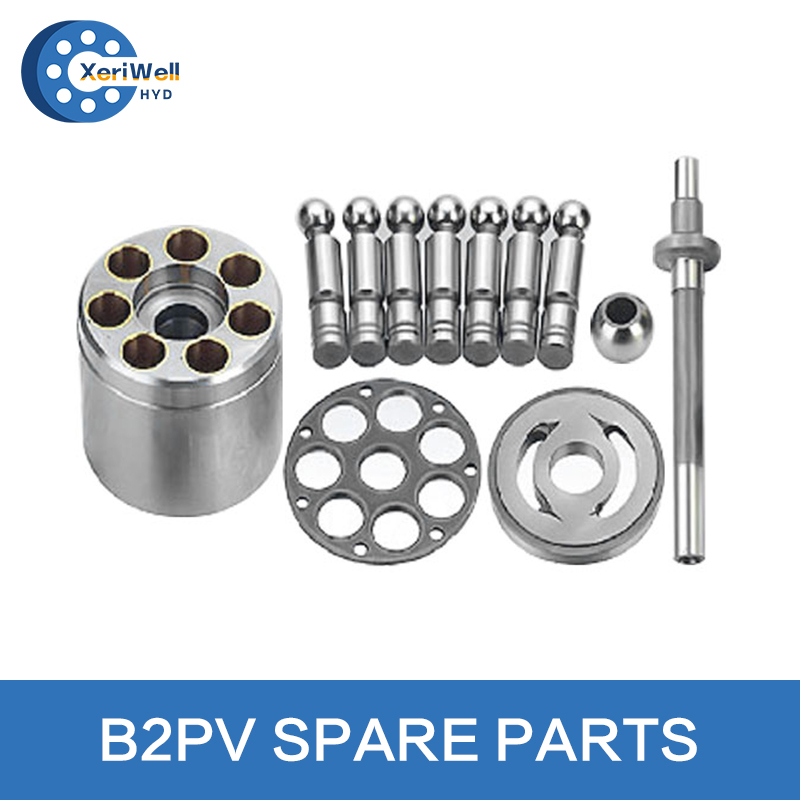

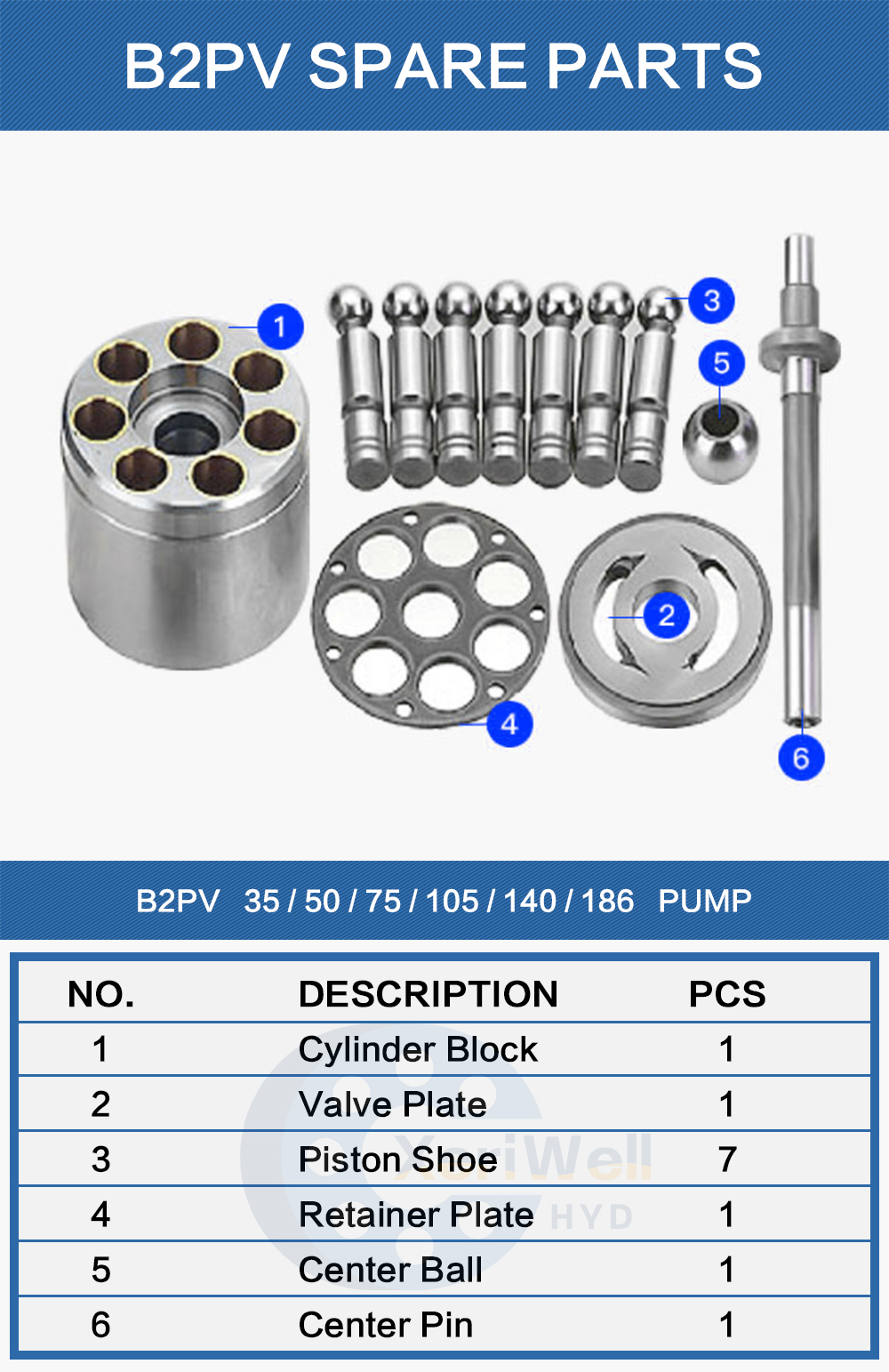

| spare parts avaliable: | |
| Quantity: | |
B2PV
Xeriwell or Others
The Linde B2PV series hydraulic pumps are compact, high-performance variable displacement axial piston pumps designed for closed-loop systems. These pumps deliver exceptional efficiency, reliability, and adaptability, making them ideal for demanding mobile and industrial applications.
Features:
1）High Efficiency: The B2PV pumps utilize a 21° swashplate design, providing excellent hydraulic efficiency and energy savings during operation.
2）Durable and Compact Design: Built with robust materials and advanced engineering, these pumps ensure long-lasting performance while maintaining a compact size for space-constrained systems.
3）Pressure and Flow Versatility: Capable of operating at high pressures and offering precise flow control, the B2PV pumps are suited for a wide range of applications, from construction machinery to material handling systems.
4）Integrated Control Options: Available with multiple control configurations, including hydraulic and electro-hydraulic options, the B2PV pumps support flexible system integration and responsive performance.
5）Enhanced Reliability: Designed with an integrated boost function and optimized components, the B2PV series ensures stable operation, even in harsh environments.
The Linde B2PV hydraulic pumps are engineered to meet the challenges of modern hydraulic systems, delivering reliability and performance for industries requiring efficient and adaptable solutions
Type: B2PV35, B2PV50, B2PV75, B2PV105, B2PV140, B2PV186

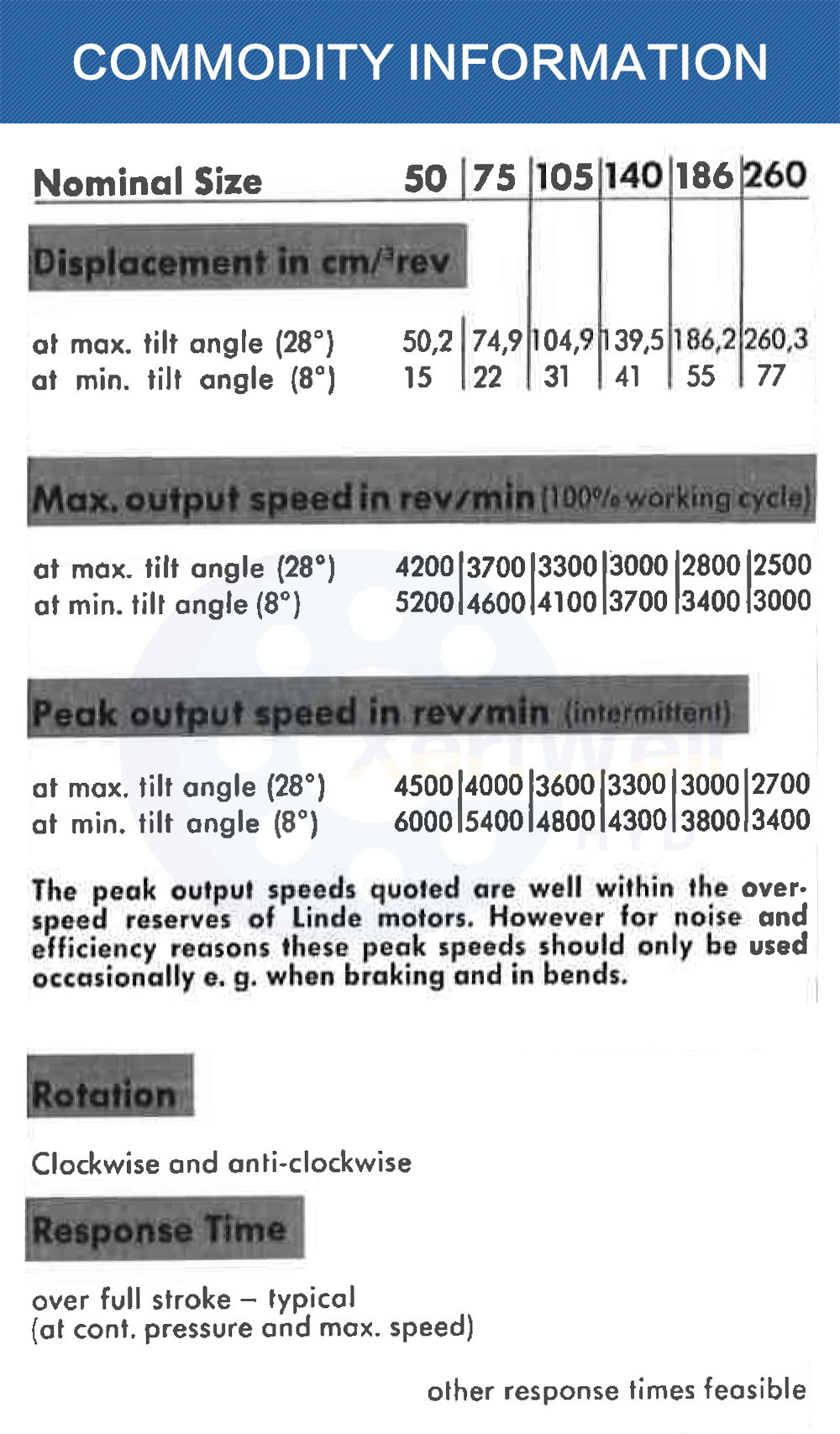

| Nominal Size | 50 | 75 | 105 | 140 | 186 | 260 |
| Displacement in cm/rev | ||||||
| ot max.tilt angle(28°) | 50.2 | 74.9 | 104.9 | 139.5 | 186.2 | 260.3 |
| af min. tilt angle(8°) | 15 | 22 | 31 | 41 | 55 | 77 |
| Max,output speedin rev/min [100%oworking cycle) | ||||||
| at max. tilt angle(28°) | 4200 | 3700 | 3300 | 3000 | 2800 | 2500 |
| at min. till angle(8°) | 5200 | 4600 | 4100 | 3700 | 3400 | 3000 |
| Peak output speed in rev/min (intormiftent) | ||||||
| at max.tilt angle (28°) | 4500 | 4000 | 3600 | 3300 | 3000 | 2700 |
| at min. tilt angle(8°) | 6000 | 5400 | 4800 | 4300 | 3800 | 3400 |
| The peak output speeds quoled are well within the over.speed reserves of Linde motors. However for noise andefficiency reasons these peak speeds should only be usedoccasionally e.g.when braking and in bends. | ||||||
| Rotation | ||||||
| Clockwise and anti-clockwise | ||||||
| Response Time | ||||||
| over full stroke- typical (at cont. pressure and max. speed) | ||||||
| other response times feasible | ||||||
