| Quantity: | |
|---|---|
BMH 750
Xeriwell or Others
| Type: | High Torque Low Speed | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMH | Displacement: | 750ml/r |
| Feature: | Replace OMH, M+S MH | Appilications: | Concrete Pump, Truck Mixer |
| Weight: | 15kgs | Shaft: | 31.75mm, 32mm, 35mm |
| Ports: | G1/2, 7/8-14 O-ring | ||
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||

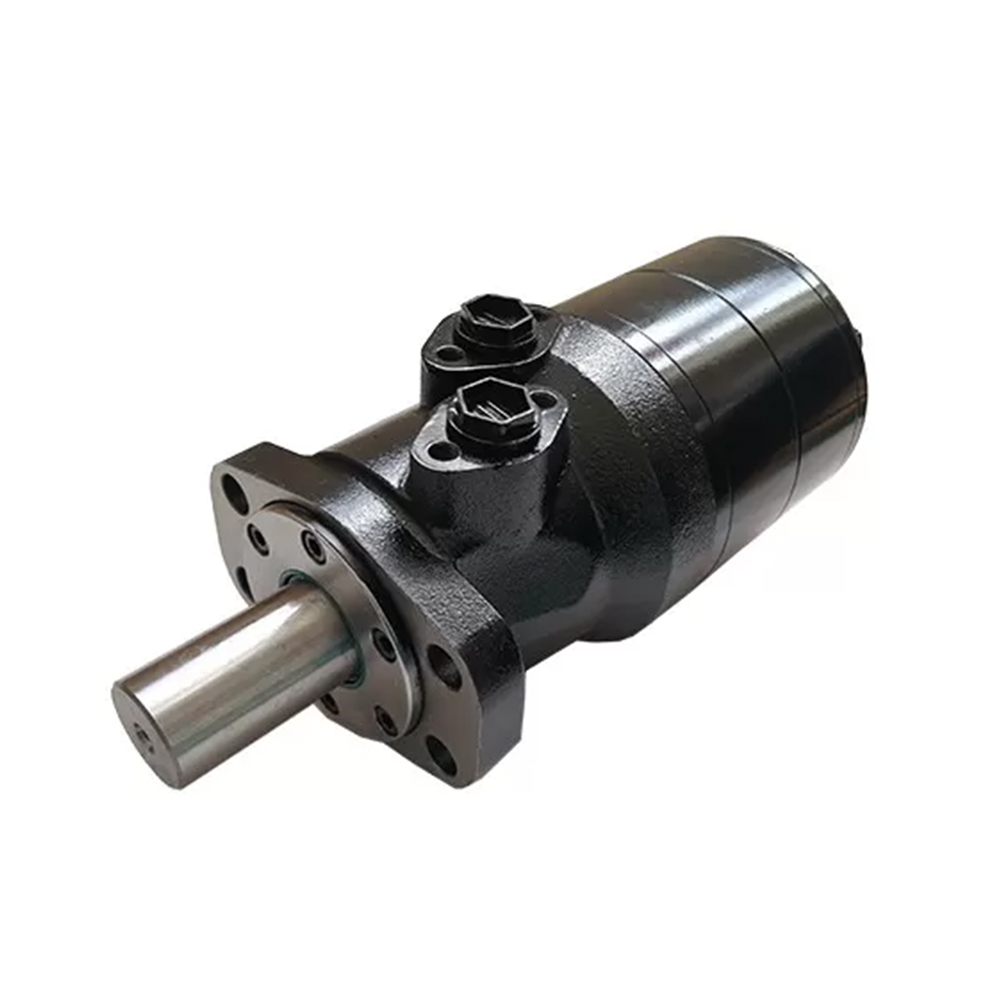

Schwing Motor Engine Hydraulic Motor Alternative OMH 750
Quick details:
High torque low speed Hydraulic Motor for Concrete Pumps, Truck Pumps
Suitable for Putzmeister, Schwing, Sebhsa, Sermac, Daf, Man, Mercedes-Benz
Xeriwell Hydraulic Motor BMH 750 widely used on Putzmeister, Schwing, Sebhsa, Sermac, Daf, Man, Mercedes-Benz
Customers use Xeriwell BMH 750 to replace OMH 750
Motor alternative BMH 750 = OMH 750
The company strong at Hydraulic Motors produce and export.
Customers use our hydraulic motor to be alternative as PARKER, , WHITE, EATON, M+S, and many more.
Because our motor are very ECONOMICAL, and have obviouse advantage in terms of delivery time, price, service compare with other makes.
| BMP-50 | OMP-50 |
| BMP-80 | OMP-80 |
| BMP-100 | OMP-100 |
| BMP-125 | OMP-125 |
| BMP-160 | OMP-160 |
| BMR-80 | OMR-80 |
| BMR-100 | OMR-100 |
| BMS-315 | OMS-315 |
| BMT-630 | OMT-630 |
| BMV-800 | OMV-800 |
BMH hydraulic motor Main specifiction:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |

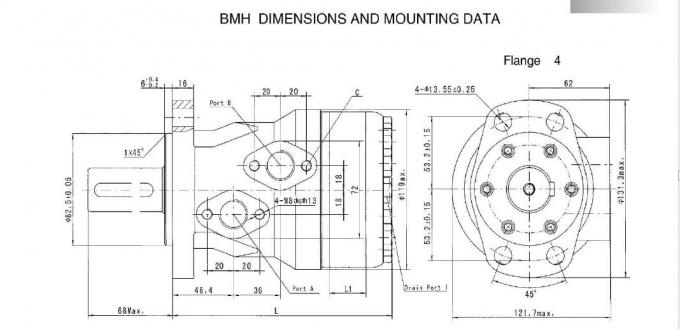

Please find the mounting drawings at the buttom of this article.
Are you looking for Economical Low Speed High Torque Motors?
Perhaps you are looking for Parker / / Eaton / M+S replacement Low Speed High Torque Motors?
Or you are looking for other economical hydraulic spare part for Industrial equipments?
Contact Xeriwell and you will be pleasantly to find that they will surprise you.
