| Quantity: | |
|---|---|
TG0475
Xeriwell or Others

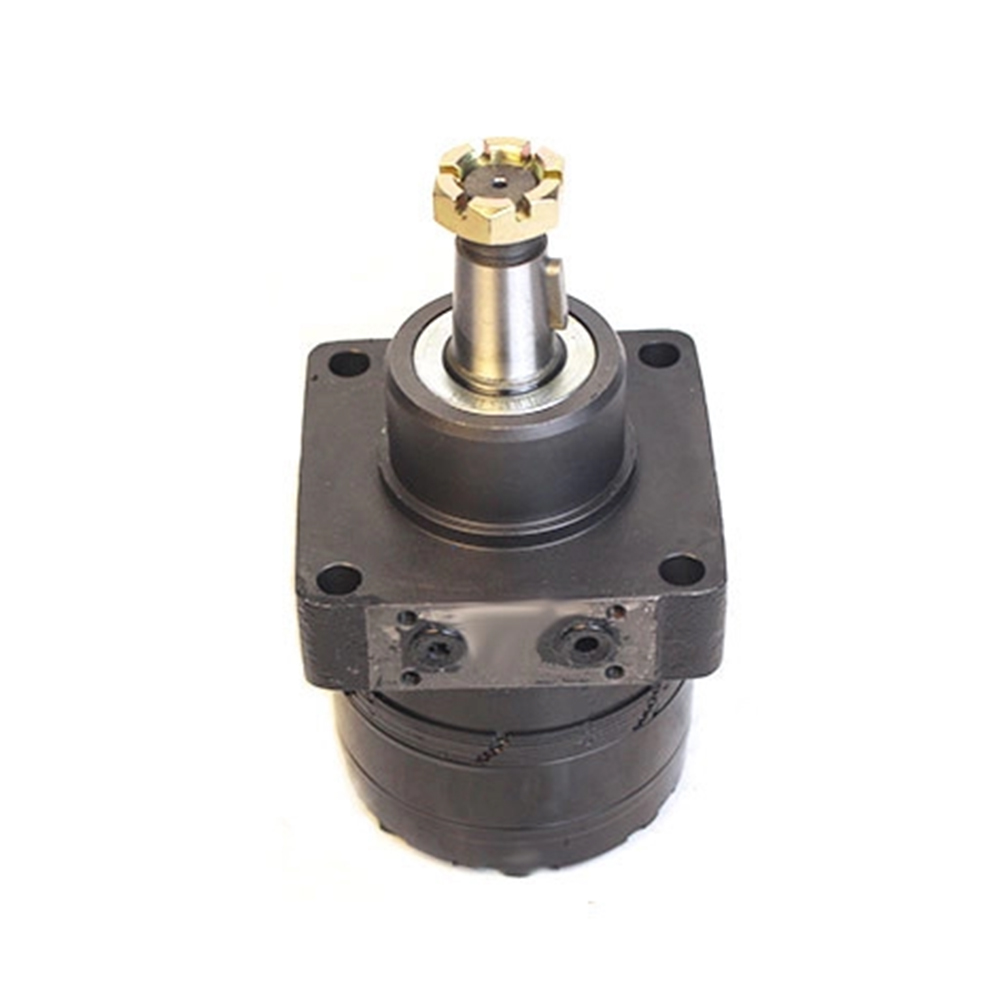

| Item: | Torqmotor | OEM #: | TG0475 |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 475 Ml/r |
| Mounting Flange: | Wheel Flange Manifold Ports | Shaft Type: | 1 1/4” Tapered Shaft |
| Highlight: | LSHT Torqmotor,1/4”Tapered Shaft Torqmotor,TG0475 Torqmotor | ||
Xeriwell supply the LSHT Torqmotors BMER Series motors matching Parker TG series motors, the same function.
Details specifications:
| Series: | TG |
| Shaft: | 1 1/4”Tapered shaft,31.75mm |
| Rotation: | Reverse Timed Manifold |
| Displacement (cm3/rev): | 0475 |
| Mounting: | Wheel, Standard |
| Geometric Displacement: | 475cm3/rev (29.1 in3/rev) |
| Maximum Speed: | 237 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 76 lpm (20 gpm) / 114 lpm (30 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 138 bar (2000 PSID) / 207 bar (3000 PSID) |
| Maximum Supply Pressure: | 300 bar (4350 PSIG) |
| Maximum Torque - Continuous / Intermittent: | 887 Nm (7853 lb-in) / 1372Nm (12145 lb-in) |
| Maximum Performance: | 28 KW (38HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 740 Nm (6549 lb-in) / 1120 Nm (9909 lb-in) |
PARKER Hydraulic Motors
TB
TE
TF
TG
TJ
