| Quantity: | |
|---|---|

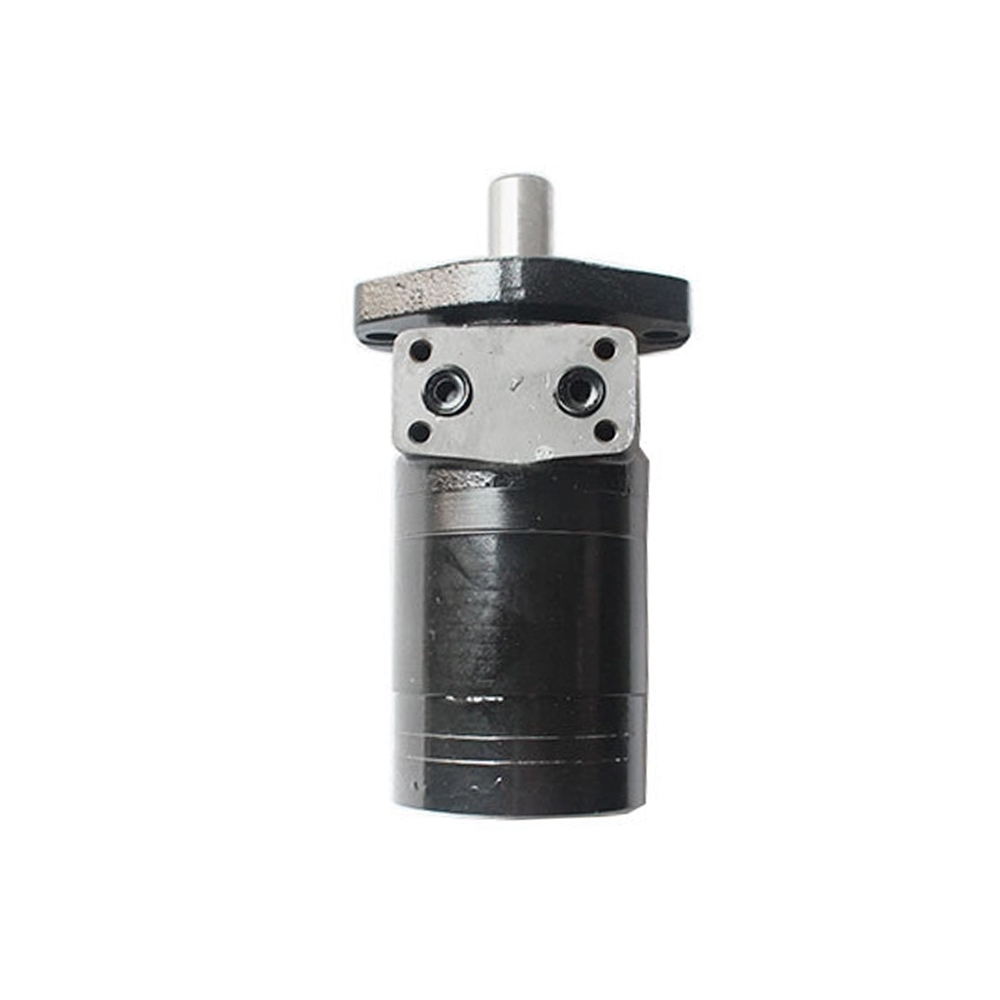

TE0295MS100AAAA
Xeriwell or Others
| Type: | Low Speed High Torque Hydraulic Motor | Speed: | 247rpm-328rpm |
|---|---|---|---|
| Displacement: | 295cc | Warranty: | 12-18 Months |
| Application: | Construction Machines, Heavey Machines, Rollers Etc. | Torque: | 378N.M-528N.M |
| Output: | 9.9kw-17.9kw | Pressure: | 12mpa-16.5mpa |
| Highlight: | lsht nichols motors,lsht parker nichols motor,low speed nichols motors | ||
This medium duty motor has higher pressure ratings than the TB motor, for applications requiring higher torque.
Robust roller bearings withstand higher side loads and are suitable for chain and sprocket shaft connections.
It uses high pressure shaft seals, robust roller bearings and high flow shaft seal cooling.
Main Specifications:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| (cm3 /rev.) | ||||||||||||
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 296 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N*m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |
| 1, | model number | BME2-295-HM-K-R-B |
| 2, | displacement | 295ml/r |
| 3, | flange | 2-13.5 Magneto Mount |
| 4, | shaft | key shaft,woodruff key |
| 5, | oil port | φ12.7 |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Parker TE TG TF |
