M2X
Xeriwell or Others

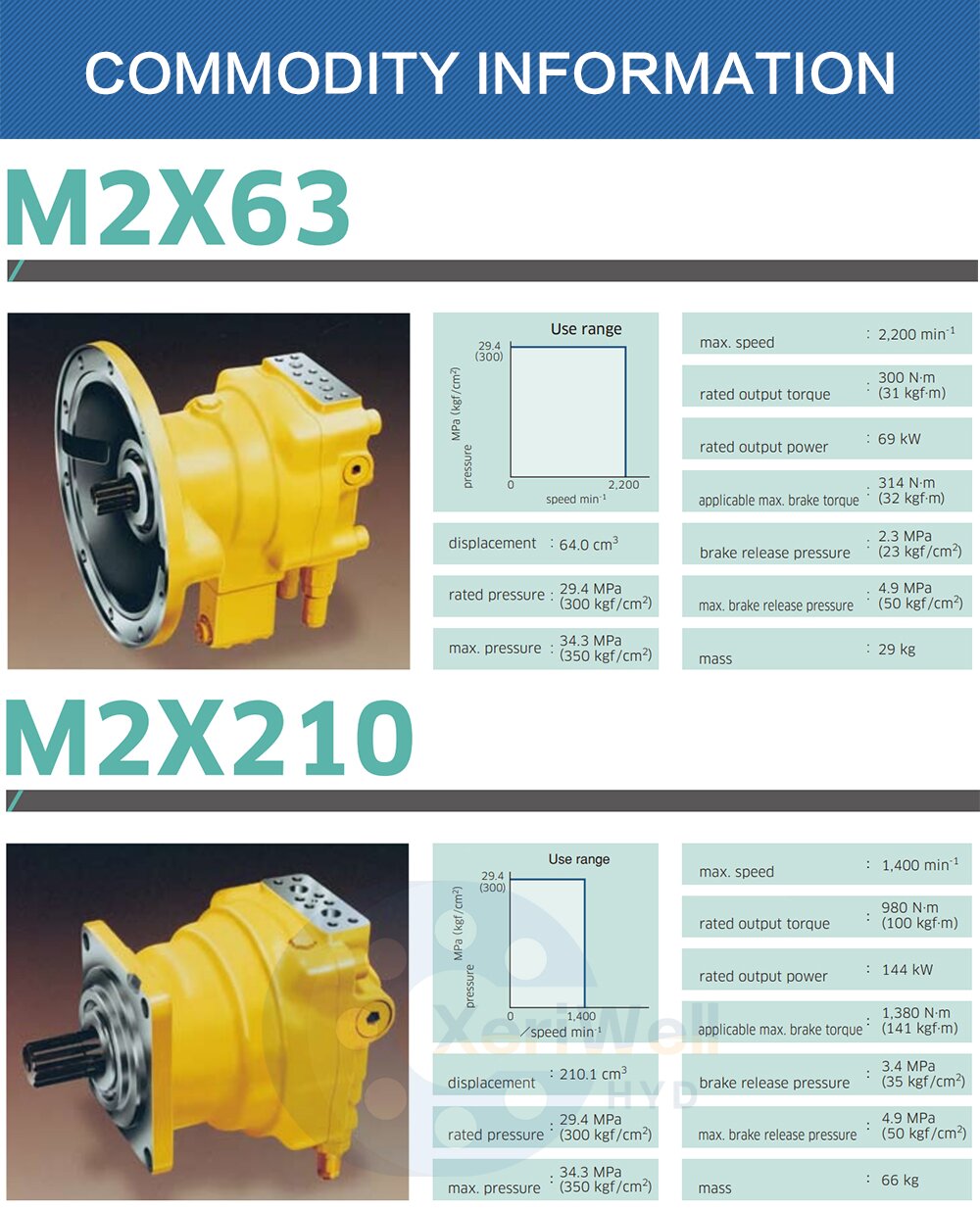

Kawasaki M2X 22/45/55/63/96/120/128/146/150/170/210 Hydraulic swing Motor technical data:
Kawasaki M2X 22/45/55/63/96/120/128/146/150/170/210 Hydraulic swing Motor list:
| max. speed: | 2,200 min-1 |
| rated output torque： | 300 N·m |
| (31 kgf·m) | |
| rated output power： | 69 kW |
| applicable max. brake torque： | 314 N·m |
| (32 kgf·m) | |
| displacement： | 64.0 cm3 |
| rated pressure： | 29.4 MPa (300 kgf/cm2) |
| max. pressure： | 34.3 MPa (350 kgf/cm2) |
| brake release pressure： | 2.3 MPa |
| (23 kgf/cm2) | |
| max. brake release pressure： | 4.9 MPa |
| (50 kgf/cm2) | |
| mass： | 29 kg |
| max. speed： | 1,400 min-1 |
| rated output torque: | 980 N·m |
| (100 kgf·m) | |
| rated output power: | 144 kW |
| applicable max. brake torque: | 1,380 N·m |
| (141 kgf·m) | |
| displacement: | 210.1 cm3 |
| rated pressure: | 29.4 MPa (300 kgf/cm2) |
| max. pressure: | 34.3 MPa (350 kgf/cm2) |
| brake release pressure: | 3.4 MPa |
| (35 kgf/cm2) | |
| max. brake release pressure: | 4.9 MPa |
| (50 kgf/cm2) | |
| mass: | 66 kg |
