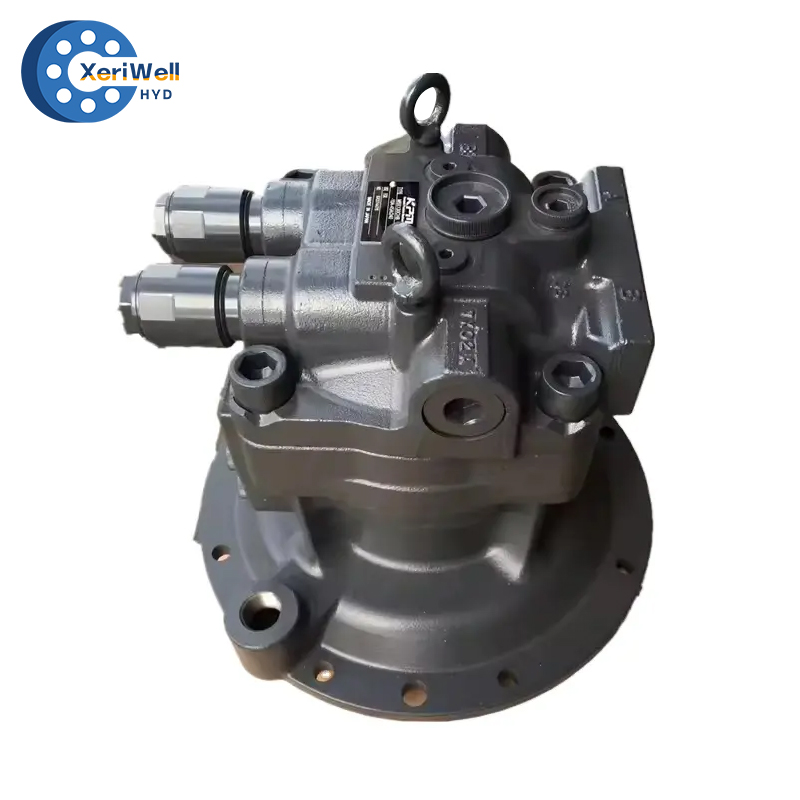

KAWASAKI M5X hydraulic Swing motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	M5X80 M5X130 M5X160 M5X170 M5X180 M5X250
Spare Parts:	Cylinder Block Valve Plate Piston Shoe Retainer Plate Thrust Plate Drive Shaft Steel Plate Friction Plate
Availability:





Inquire Add to Basket

Model:
M5X
Brand:
Xeriwell or Others

KAWASAKI M5X hydraulic Swing motor and spare parts

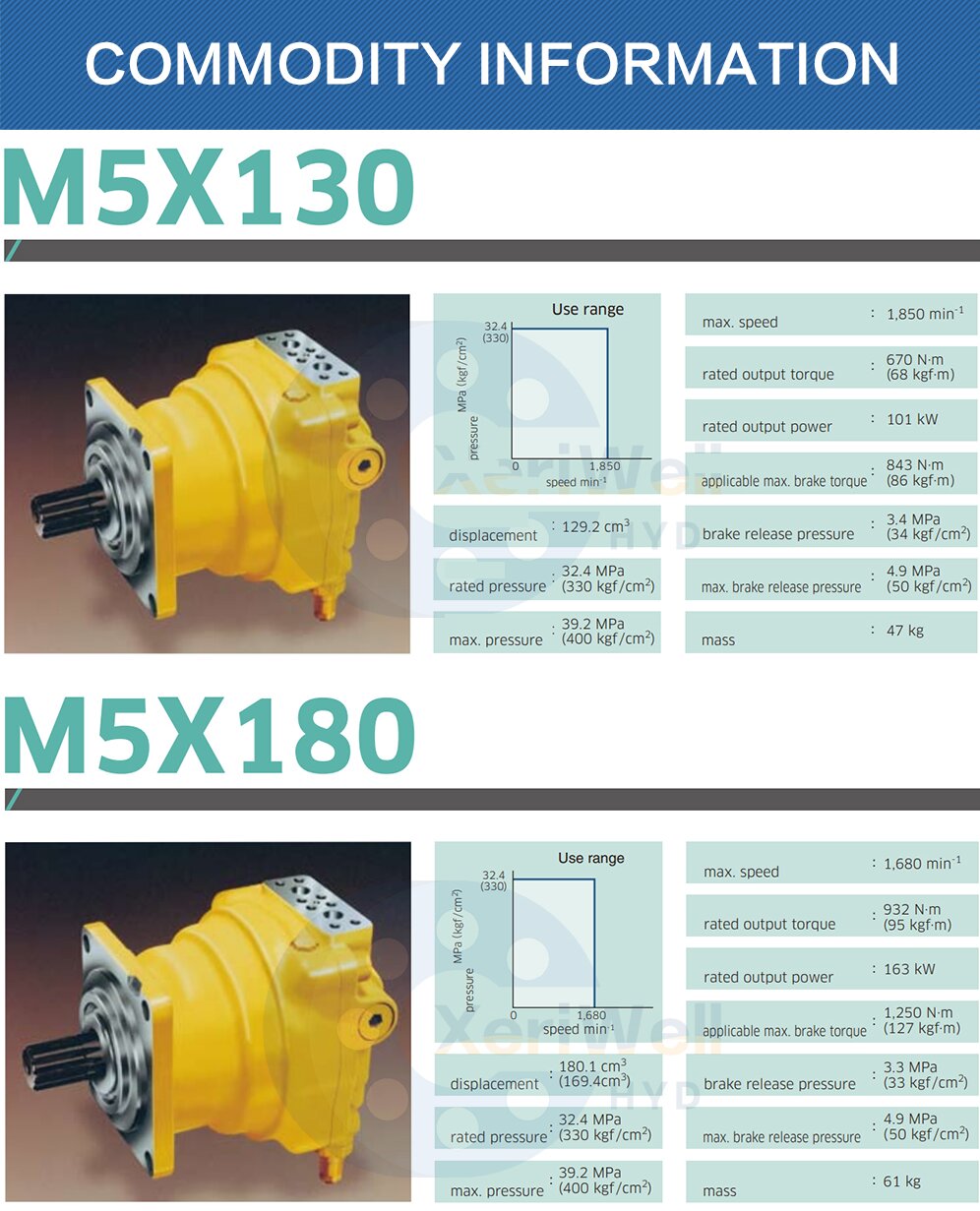

KAWASAKI M5X 80/130/160/170/180/250 hydraulic Swing motor technical:

kawasaki hydraulic pump k3v63dt

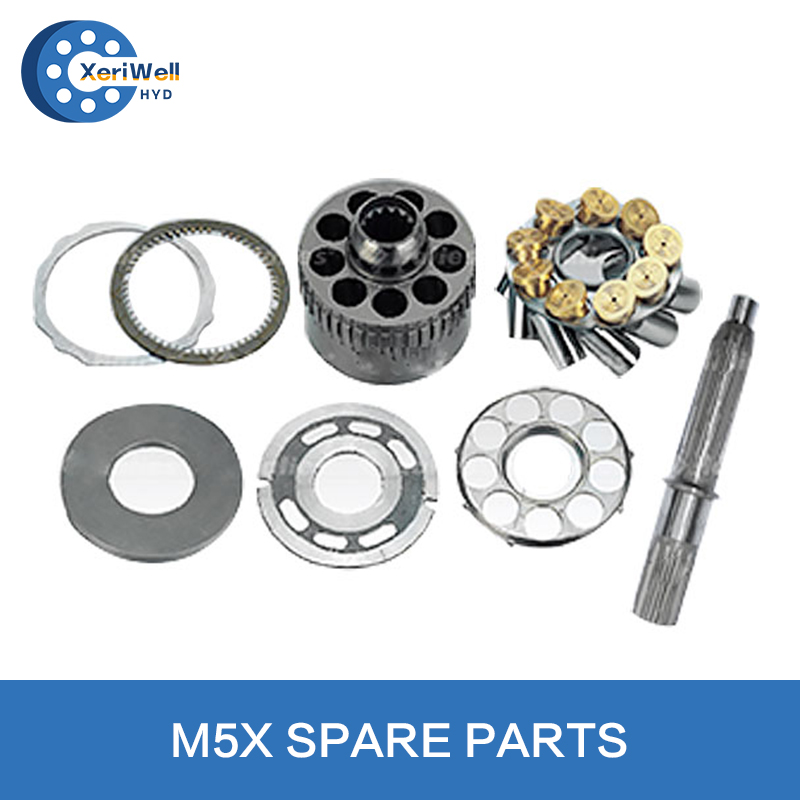

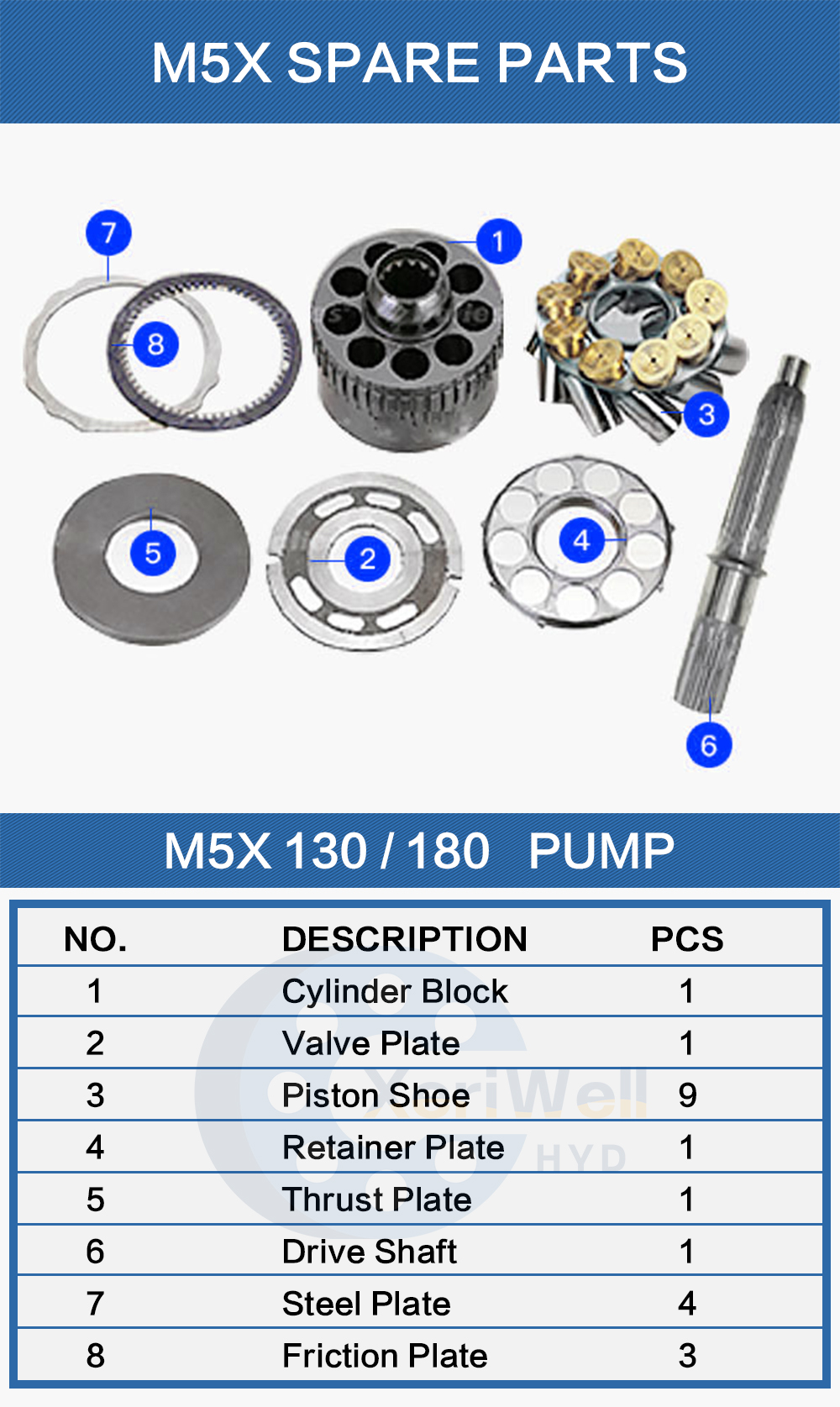

KAWASAKI M5X 80/130/160/170/180/250 hydraulic Swing motor spare parts list:

详情图

max. speed:	1,850 min-1
rated output torque:	670 N·m
rated output torque:	(68 kgf·m)
rated output power:	101 kW
applicable max. brake torque:	843 N·m
applicable max. brake torque:	(86 kgf·m)
displacement:	129.2 cm3
rated pressure:	32.4 MPa
rated pressure:	(330 kgf/cm2)
max. pressure:	39.2 MPa
max. pressure:	(400 kgf/cm2)
brake release pressure:	3.4 MPa
brake release pressure:	(34 kgf/cm2)
max. brake release pressure:	4.9 MPa
max. brake release pressure:	(50 kgf/cm2)
mass:	47 kg
