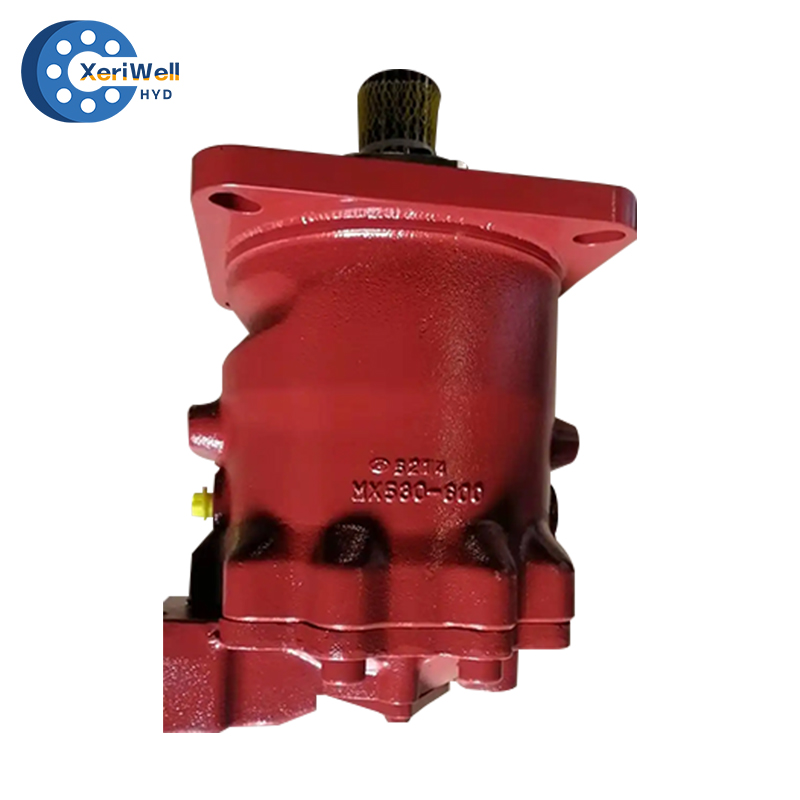

M3X
Xeriwell or Others
The M3X series are newly developed motors for construction machinery, industrial machinery or other applications.
The design based on technology and experience of current MX series is more compact and enables a speed range.
Features:
1) Fixed Displacement Motors
M3X series consists of 4 models and 10 displacement types ranging from 149cm3 to 800cm3. M3X with reduction gear series covers a displacement range from 845cm3 to 5,120cm3.
2) Excellent self-priming capability and max. speed
A spherical surface type valve plate and full-balancing mechanism enhance self-priming capability and max. speed.
3) High reliability based on long experience
Building on the knowledge and experiences of reputed MX series, M3X series have been widely used especially as winch motors
4) Optional parts
Built-in parking brake is available for M3X motors.
Various control valves are available for M3X motors.
Type: M3X200, M3X280, M3X530, M3X800

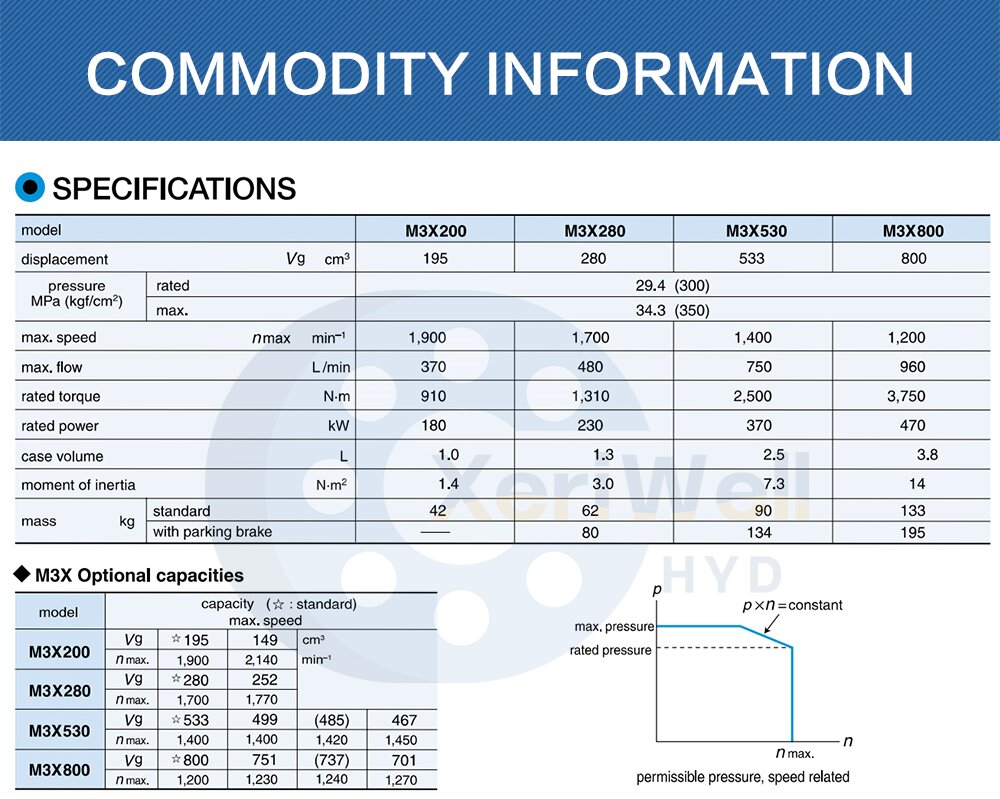

| ●SPECIFICATIONS | |||||||
| model | M3X200 | M3X280 | M3X530 | M3X800 | |||
| displacement | Vg cm3 | 195 | 280 | 533 | 800 | ||
| pressure MPa (kgf/cm2) | rated | 29.4 (300) | |||||
| max. | 34.3 (350) | ||||||
| max. speed | nmax | min-1 | 1900 | 1700 | 1400 | 1200 | |
| max. flow | L/min | 370 | 480 | 750 | 960 | ||
| rated torque | N·m | 910 | 1310 | 2500 | 3750 | ||
| rated power | kW | 180 | 230 | 370 | 470 | ||
| case volume | L/min | 1 | 1.3 | 2.5 | 3.8 | ||
| moment of inertia | N·m2 | 1.4 | 3 | 7.3 | 14 | ||
| mass kg | standard | 42 | 62 | 90 | 133 | ||
| with parking brake | —— | 80 | 134 | 195 | |||
| ◆ M3X Optional capacities | |||||
| model | capacity (☆:standard) max. speed | ||||
| M3X200 | Vg | ☆195 | 149 | cm3min-1 | |
| n max. | 1900 | 2140 | |||
| M3X280 | Vg | ☆280 | 252 | ||
| n max. | 1700 | 1770 | |||
| M3X530 | Vg | ☆533 | 499 | -485 | 467 |
| n max. | 1400 | 1400 | 1420 | 1450 | |
| M3X800 | Vg | ☆800 | 751 | -737 | 701 |
| n max. | 1200 | 1230 | 1240 | 1270 | |
