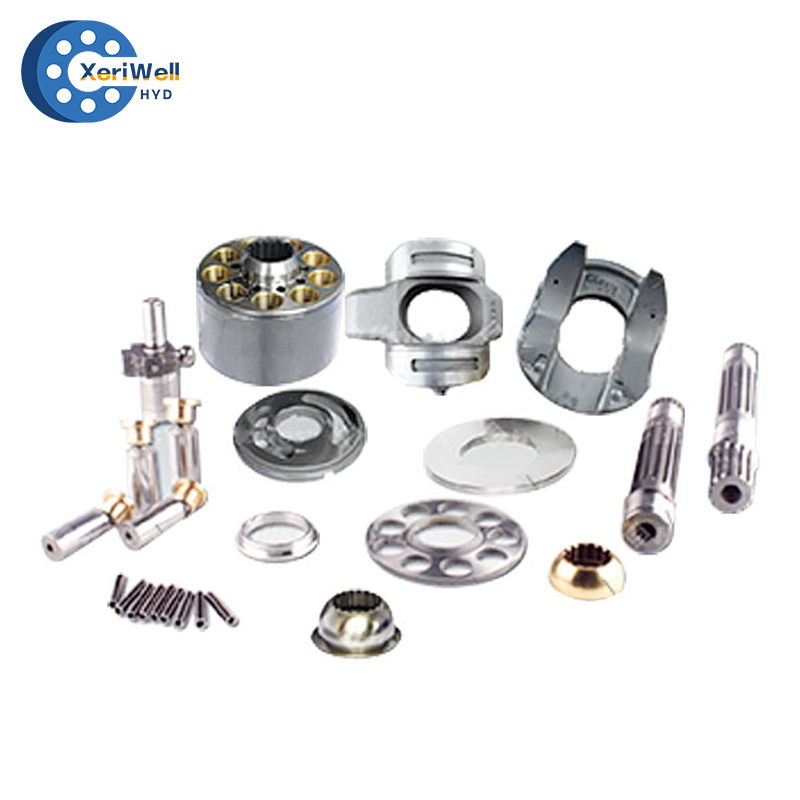

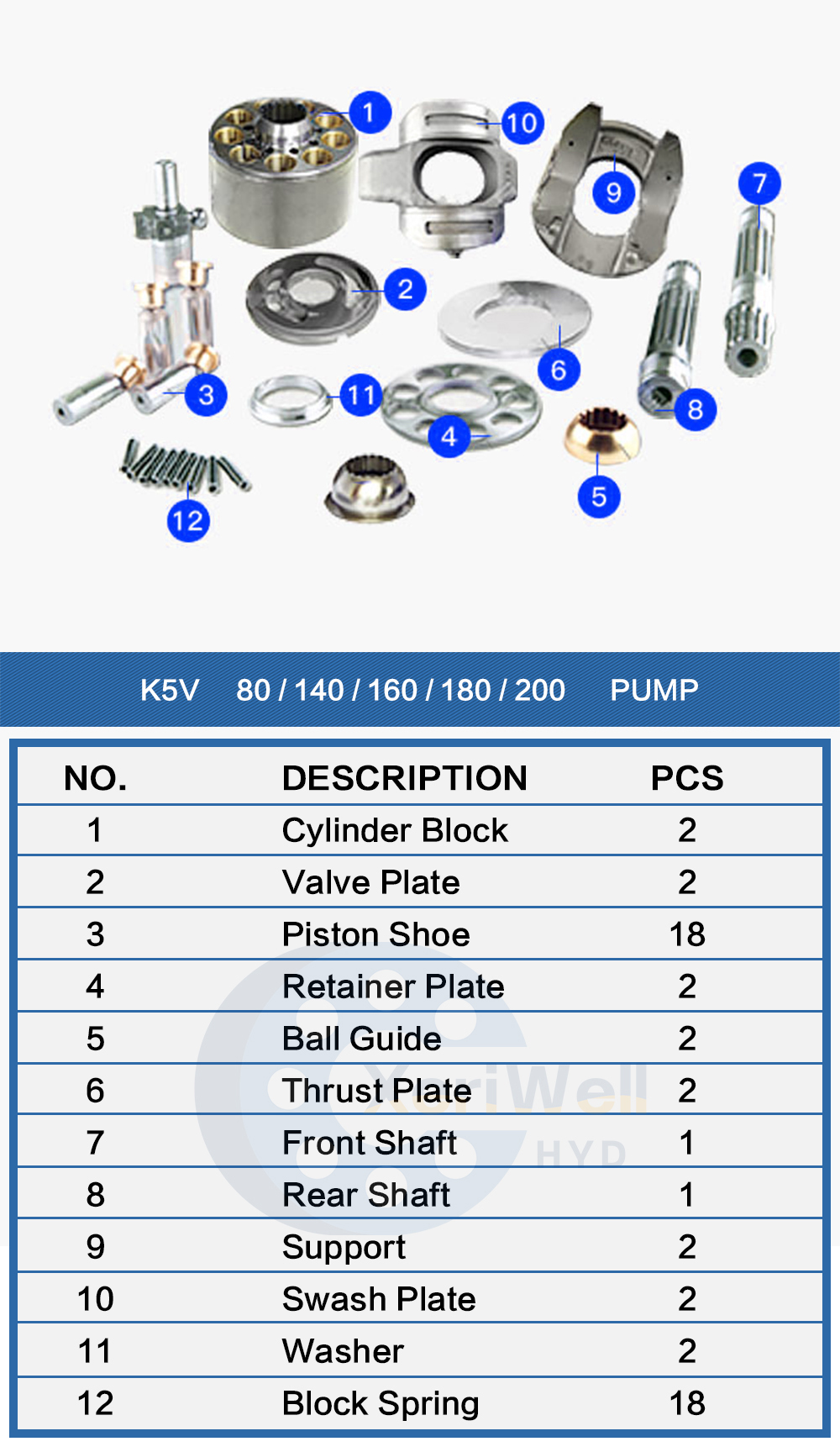

| spare parts avaliable: | |
| Quantity: | |
K5V
Xeriwell or Others

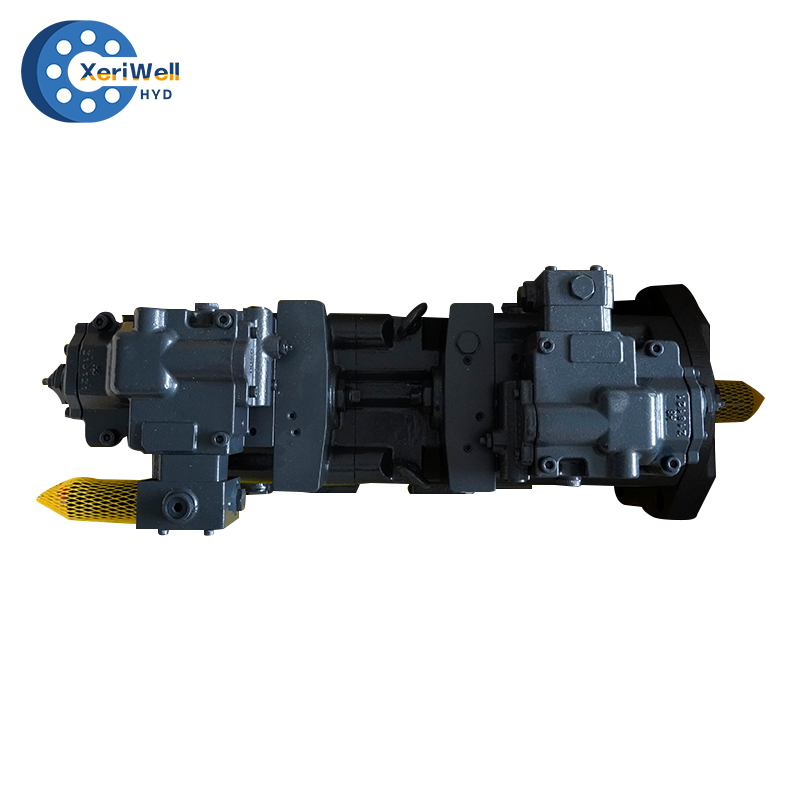

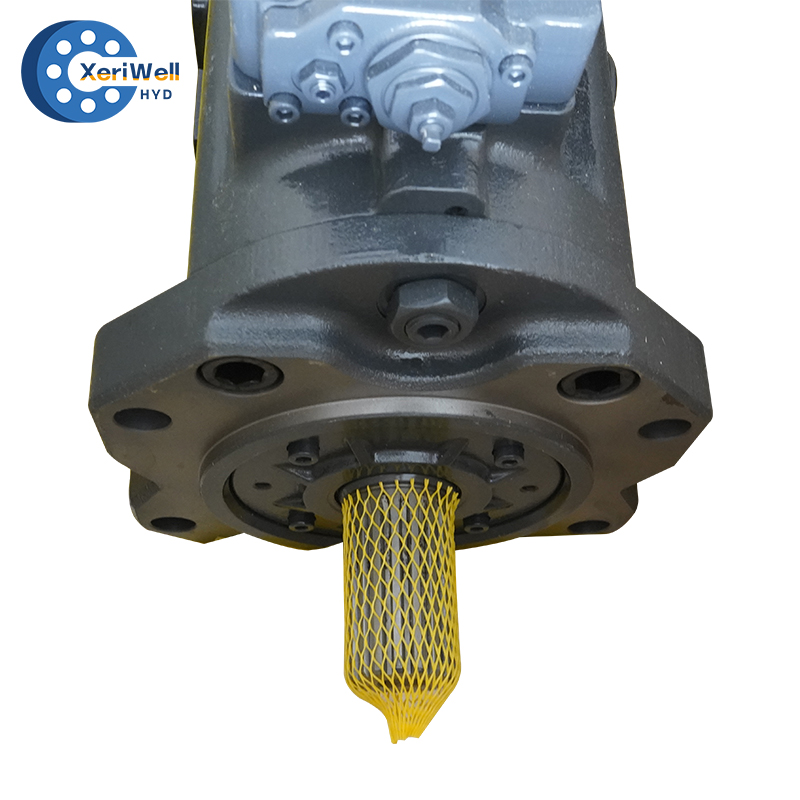

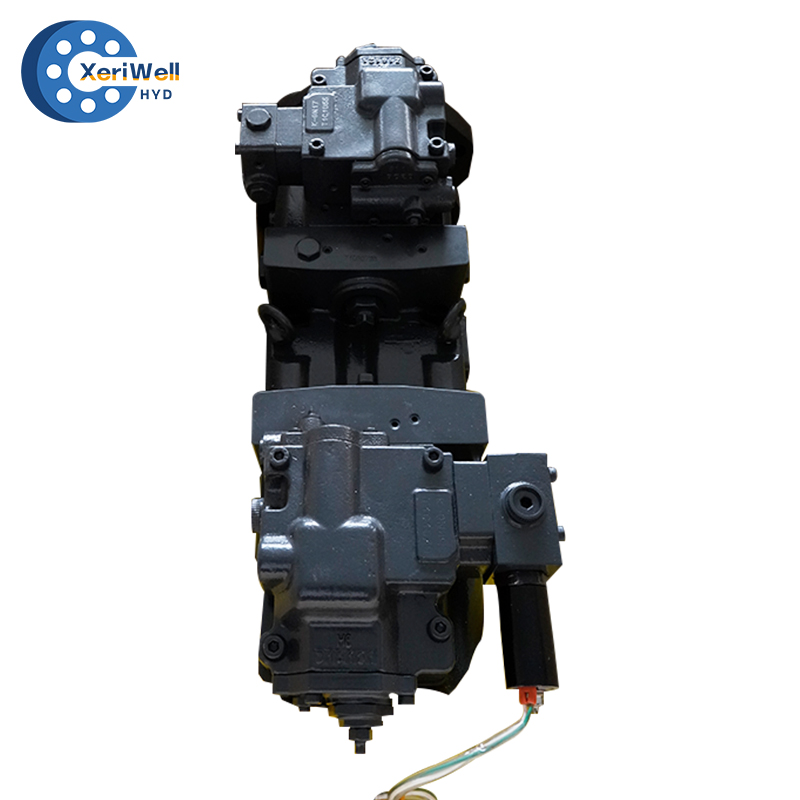

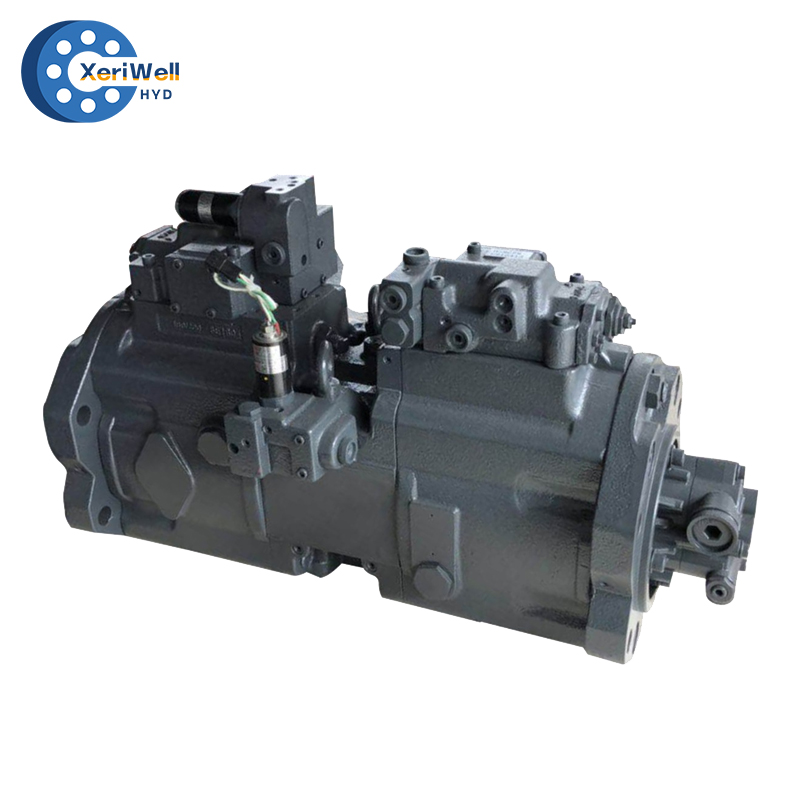

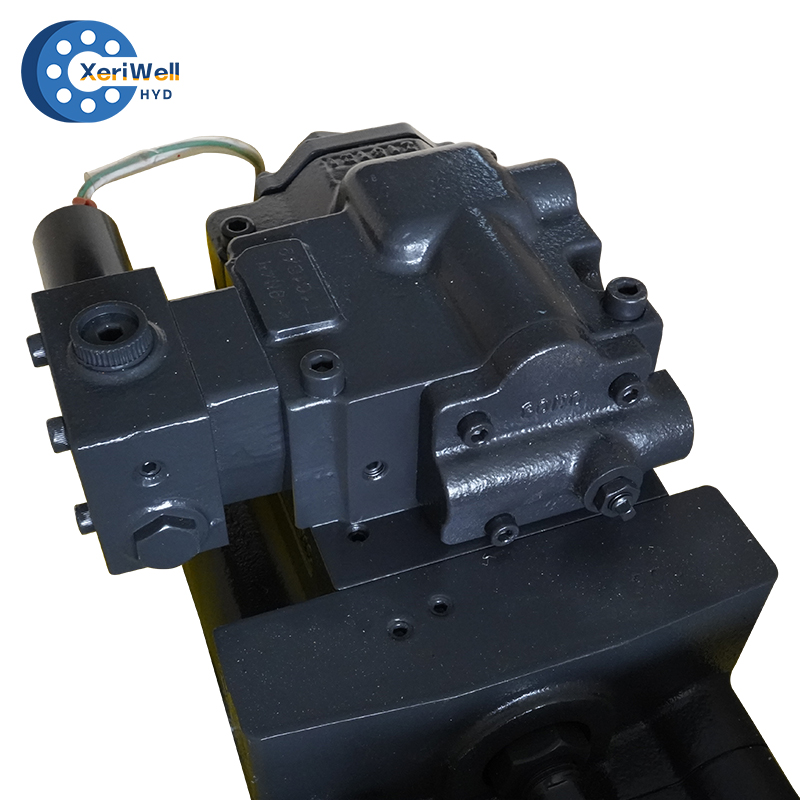

Kawasaki K5V series hydraulic pump is a swash plate type axial piston pump mainly used for industrial vehicles.
A Thorough Function Design Enabled Such Attractive Features:
1. High Power Density
A lighter and more compact machine with higher pressure rating and increased power density (output power/mass) was obtained by adopting a half log type swash plate. In particular, the double pump with its tandem arrangement, has eliminated a power divider, has an increased transmission efficiency, and is lighter.
2. High Efficiency and Large Self-Priming Capability
The spherical valve plate and improved hydraulic balance provide stable cylinder rotation, thus achieving high efficiency even in a low-pressure and low-speed operating range.
3. Long Life
A long life is obtained by adopting main bearings of large capacity and the piston-return mechanism that compensates for the wear of the shoe.
4. Low Noise
Even less noise has been achieved because of the optimum design of the valve plate and the casing rigidity.
5. Wide Range of Controls
The pump can be controlled in various kinds of control methods and is capable of responding to either mechanical, hydraulic or electrical input.
Type: K5V80, K5V140, K5V160, K5V200, K5V212
| SPECIFICATIONS (FOR 9N00 / 9P00 TYPE) | ||||
| MODEL | H3V63DT | H5V112DT | H3V140DT H5V180DT | H3V280DT |
| Discharge Rate(cc/rev) | 63 | 112 | 140 / 180 | 280 |
| Max. Pressure (kg/cm2) | 350 | |||
| Max. Speed (rpm) | 2650 | 2360 | 2150 | 1900 |
| Dimensions of Shaft End(Spline Type) | |||||
| MODEL | No. of teeth | Pitch Circle Dia.(mm) | Module | Pressure Angle | Standard |
| H3V63DT | 14 | 29.6 | 46380 | 30° | ANSI B92.1b:1970 |
| H3V112DT | 12 | 30 | 2.5 | 20° | JIS B 1603 :1995 |
| 14 | 35 | ||||
| H3V140&180DT | 14 | 35 | 2.5 | 20° | |
| 17 | 42.5 | ||||
| H3V180DT(KOBELCO TYPE) | 14 | 42 | 3 | 20° | |
| H3V280DT | 22 | 66 | 3 | 30° | DIN5480:1991 |
| DIMENSIONS | (mm) | |||||||||||||||||||
| MODEL | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T |
| H3V63DT | 140 | 98 | 195 | 89 | 18 | 190 | 180 | – | 76 | 125 | 8 | 76 | 138 | 456 | 93 | 203 | ||||
| H3V112DT | 114 | 220 | 100 | 22 | 234 | 224 | – | 78 | 160 | 78 | 167 | 534 | 269 | |||||||
| H3V140&180DT | 133 | 245 | 114 | 258 | 250 | 5 | 95 | 18 | 64 | 60 | 93 | 180 | 93 | 190 | 610 | 96 | 305 | |||
| H3V180DT (KOBELCO TYPE) | 180 | |||||||||||||||||||
| H3V280DT | 158 | 286 | 128 | 26 | 302 | 300 | 20 | 74.5 | 70 | 115 | 200 | 9 | 115 | 203 | 748 | 104 | 374 | |||
