K3VL
Xeriwell or Others

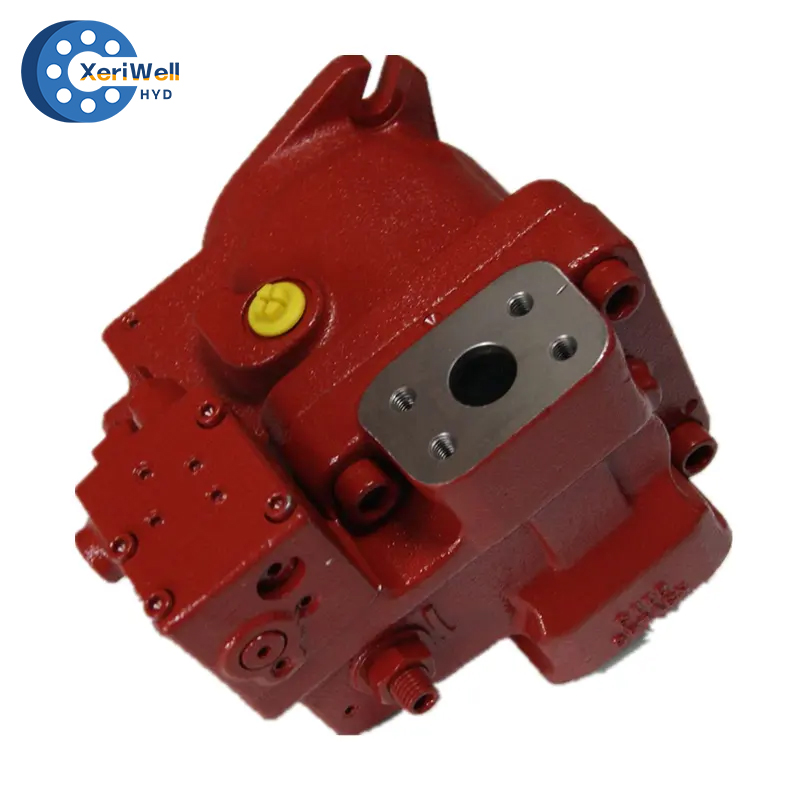

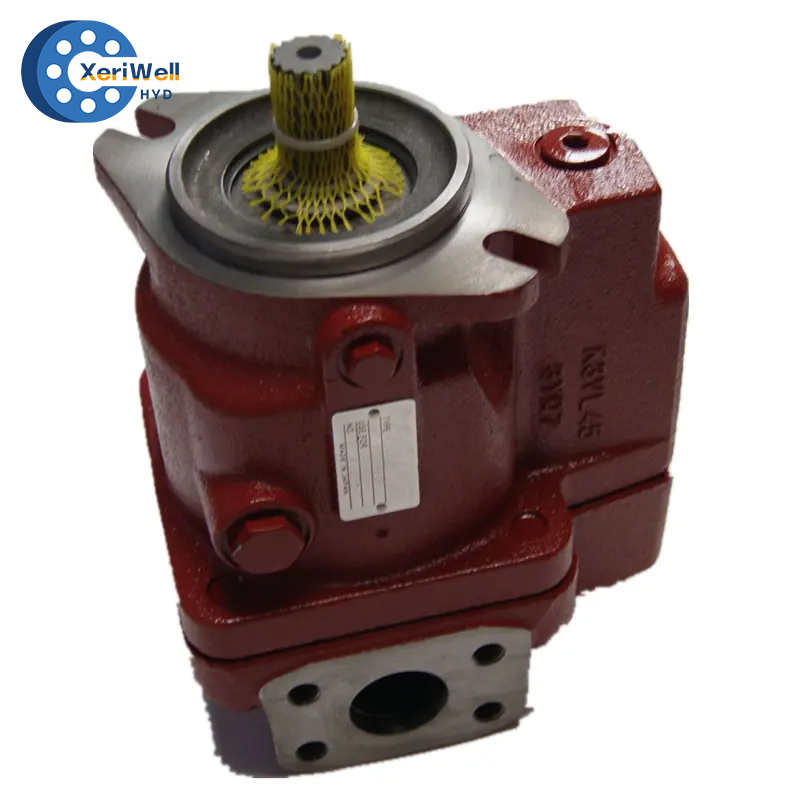

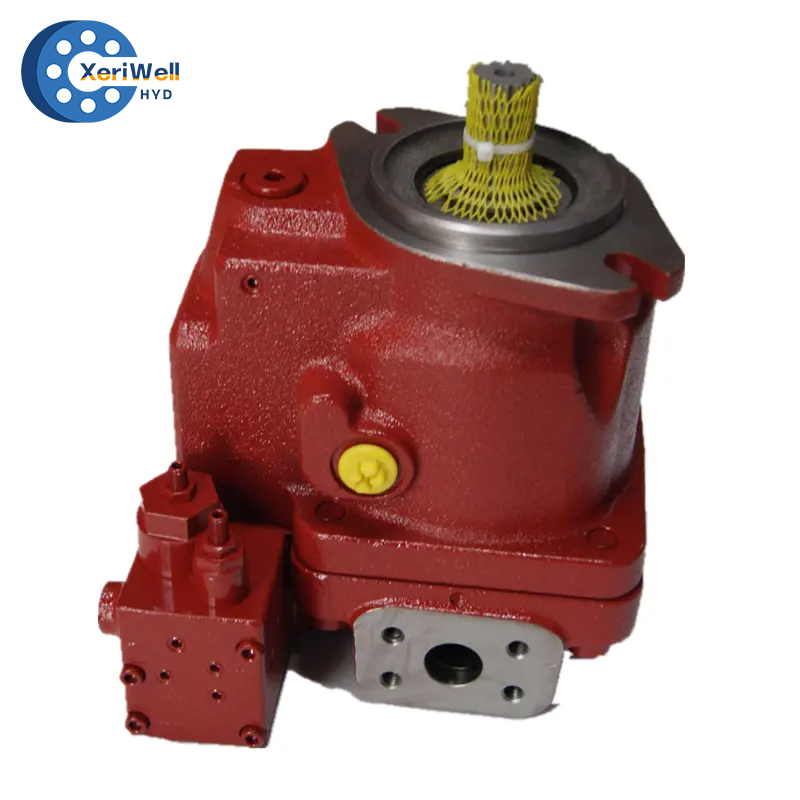

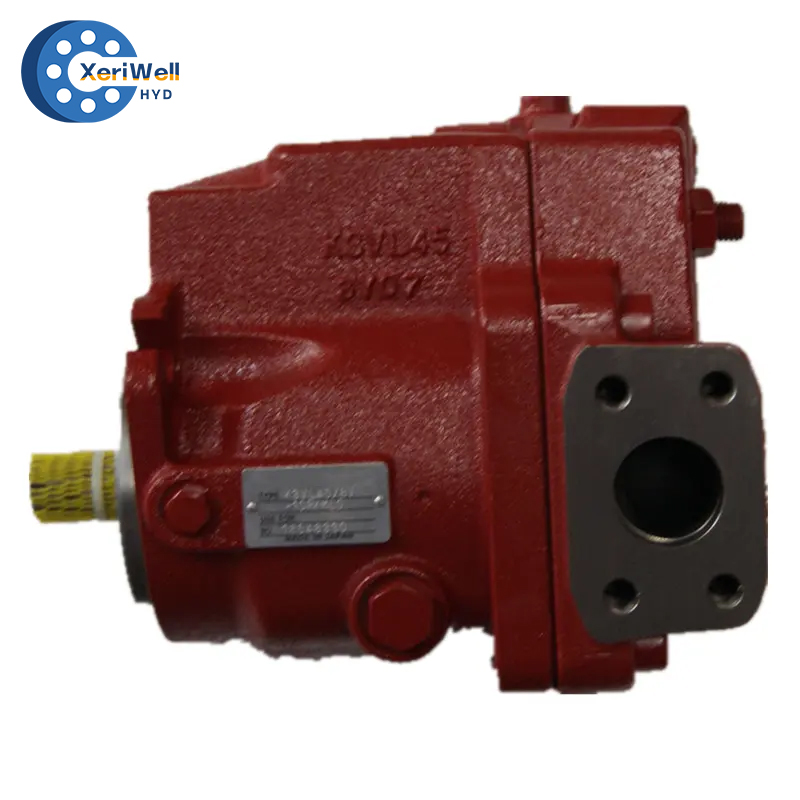

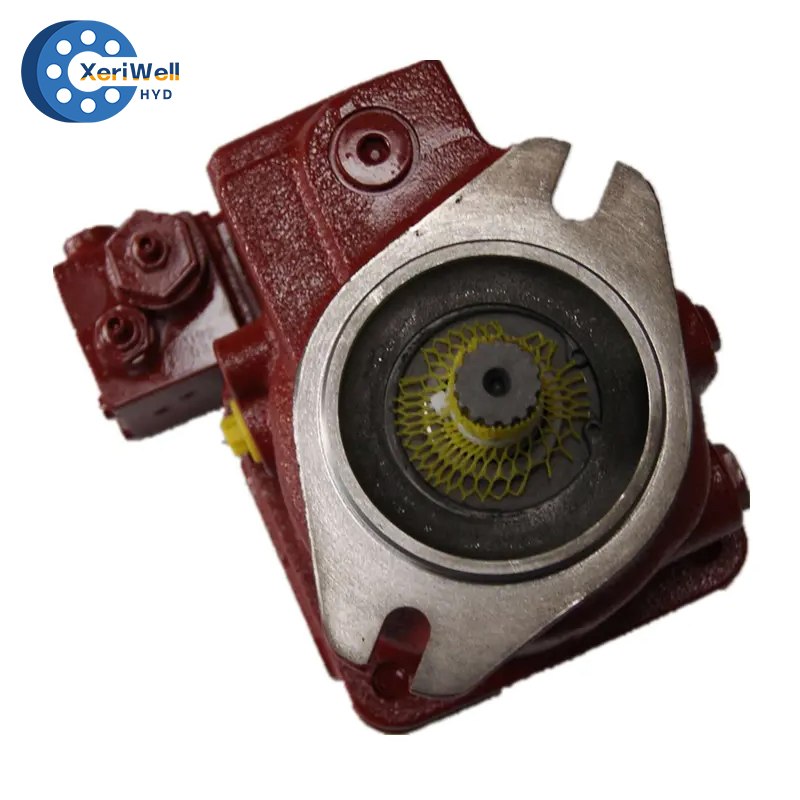

The Kawasaki K3VL series hydraulic pumps are swash-plate type axial piston pumps optimized for open-circuit systems. Designed for industrial, marine, and mobile applications, the K3VL series delivers high efficiency and reliability while maintaining a compact and robust construction.
Features:
1）High Pressure and Efficiency: With a continuous pressure rating of 320 bar and a peak pressure of 350 bar, the K3VL series ensures dependable performance even in demanding conditions. Its efficiency exceeds 90%, minimizing energy loss and heat generation.
2）Versatile Configurations: Available in displacement sizes ranging from 28 cm³ to 200 cm³ per revolution, the K3VL series supports multiple control options, including load sensing, pressure cut-off, and electronic displacement control, to suit diverse system needs.
3）Durable Design: Featuring high-strength materials and precise engineering, these pumps offer long service life and exceptional reliability in heavy-duty operations.
4）Quiet Operation: Advanced design elements reduce noise levels, making the K3VL pumps ideal for noise-sensitive environments such as marine applications.
5）Ease of Maintenance: The pumps are built with user-friendly maintenance features, including accessible service points and modular components, reducing downtime and operational costs.
The Kawasaki K3VL hydraulic pumps provide an optimal balance of power, precision, and durability, making them a trusted solution for hydraulic systems in construction, industrial machinery, and marine applications.
Type: K3VL28, K3VL45, K3VL80, K3VL112, K3VL140, K3VL200, K3VL200H

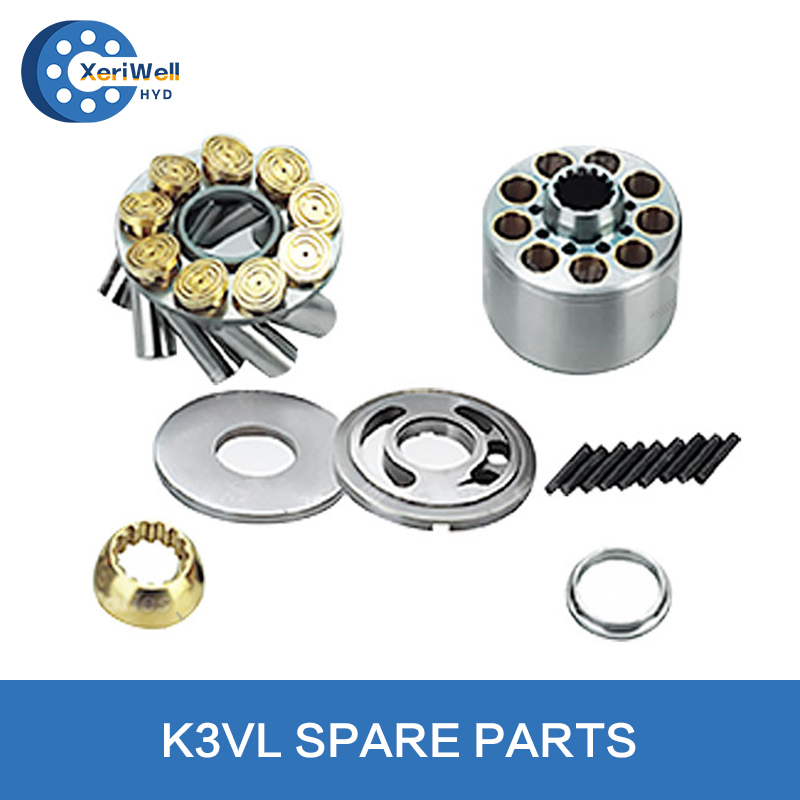

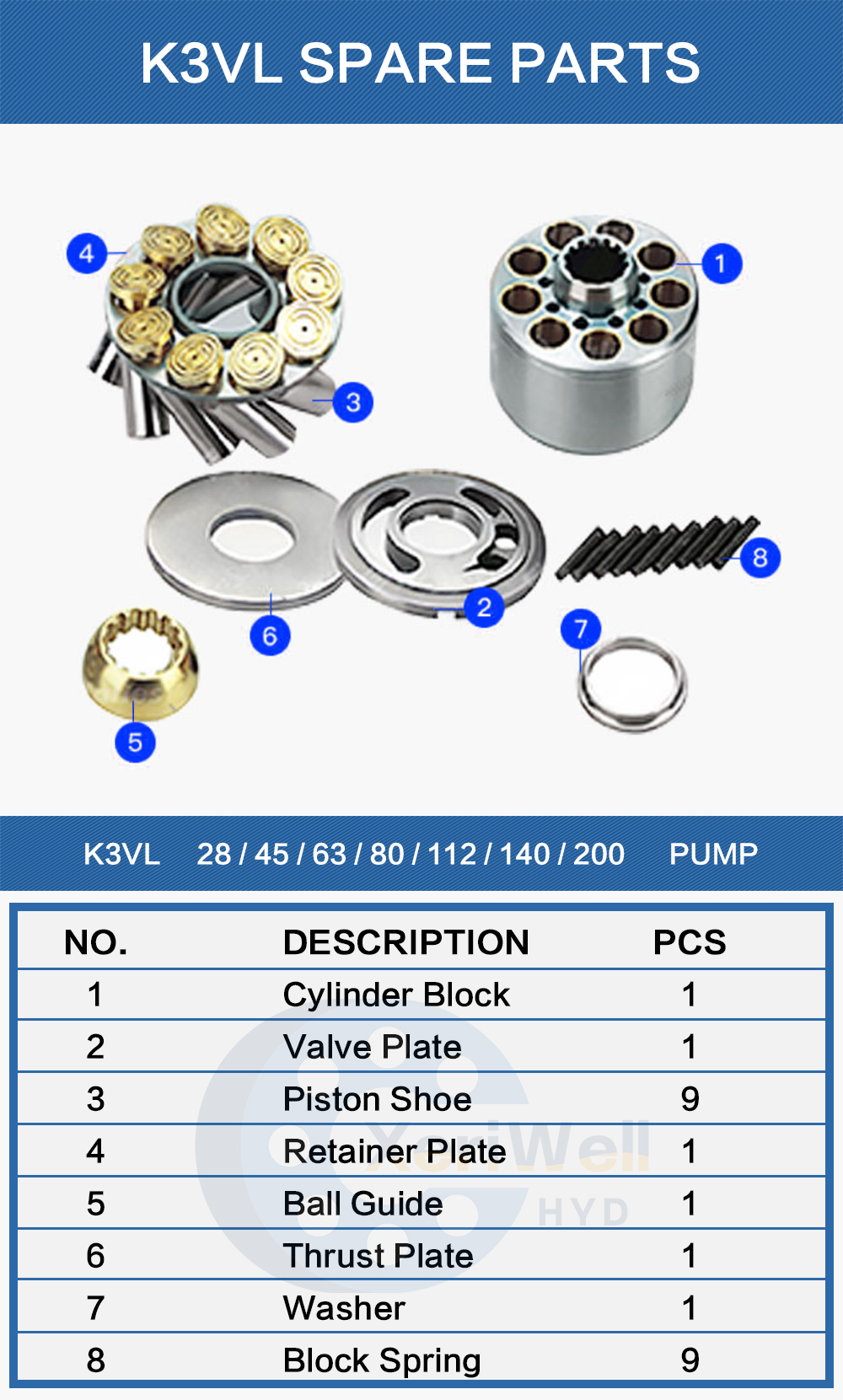

KAWASAKI K3VL 28/45/63/80/112/140/200/200H Hydraulic Pump spare parts list:

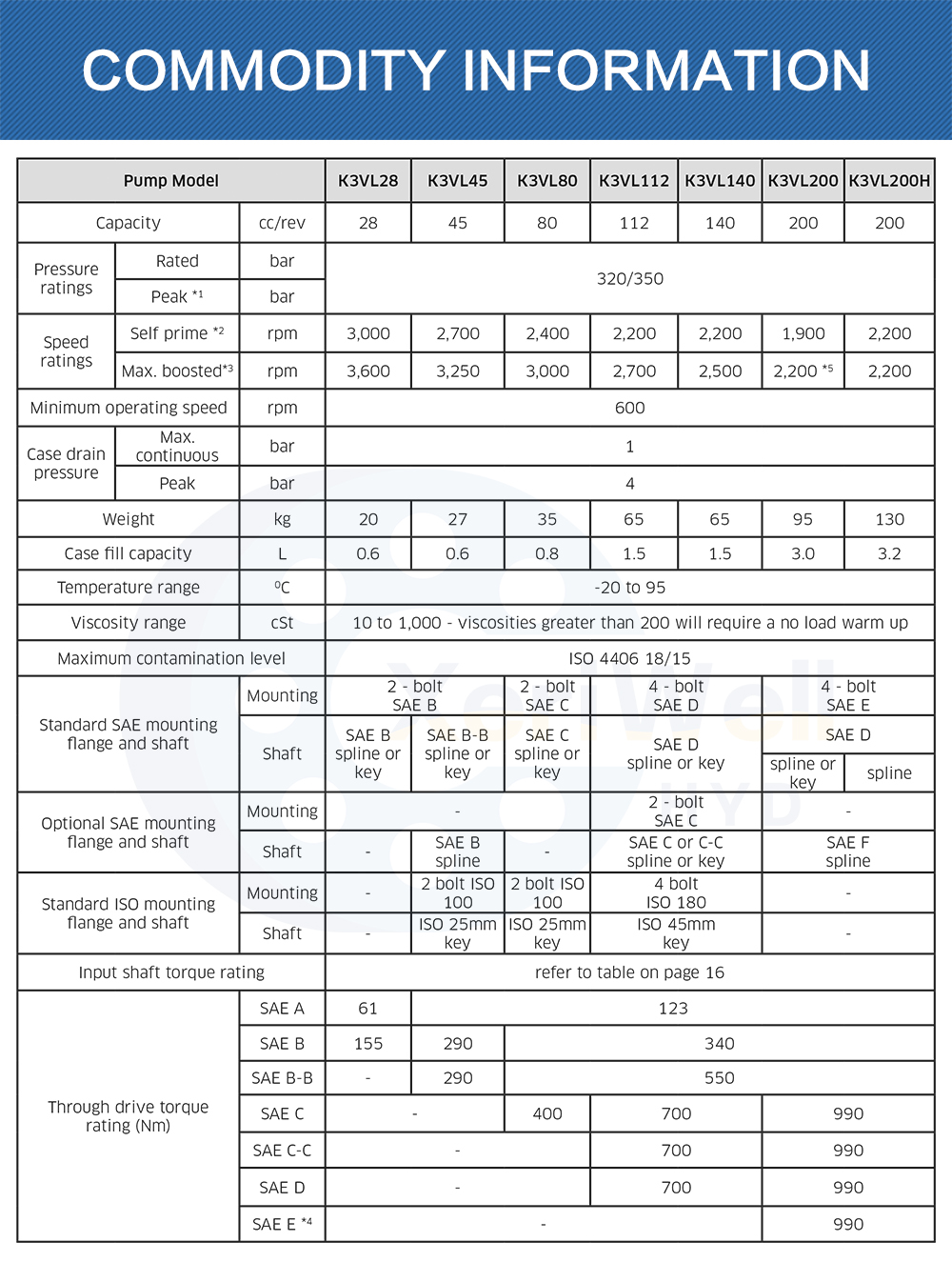

| Pump Model | K3VL28 | K3VL45 | K3VL80 | K3VL112 | K3VL140 | K3VL200 | K3VL200H | ||
| Capacity | cc/rev | 28 | 45 | 80 | 112 | 140 | 200 | 200 | |
| Pressure ratings | Rated | bar | 320/350 | ||||||
| Peak *1 | bar | ||||||||
| Speed ratings | Self prime *2 | rpm | 3000 | 2700 | 2400 | 2200 | 2200 | 1900 | 2200 |
| Max. boosted*3 | rpm | 3600 | 3250 | 3000 | 2700 | 2500 | 2,200 *5 | 2200 | |
| Minimum operating speed | rpm | 600 | |||||||
| Case drain pressure | Max. continuous | bar | 1 | ||||||
| Peak | bar | 4 | |||||||
| Weight | kg | 20 | 27 | 35 | 65 | 65 | 95 | 130 | |
| Case fill capacity | L | 0.6 | 0.6 | 0.8 | 1.5 | 1.5 | 3 | 3.2 | |
| Temperature range | °C | -20 to 95 | |||||||
| Viscosity range | cSt | 10 to 1,000 - viscosities greater than 200 will require a no load warm up | |||||||
| Maximum contamination level | ISO 4406 18/15 | ||||||||
| Standard SAE mounting flange and shaft | Mounting | 2 - bolt SAE B | 2 - bolt | 4 - bolt | 4 - bolt | ||||
| SAE C | |||||||||
| Shaft | SAE B spline or key | SAE B-B spline or key | SAE C spline or key | SAE D spline or key | SAE D | ||||
| spline or key | spline | ||||||||
| Optional SAE mounting flange and shaft | Mounting | - | 2 - bolt | - | |||||
| Shaft | - | SAE B spline | - | SAE C SAE C or C-C spline or key | SAE F spline | ||||
| Standard ISO mounting flange and shaft | Mounting | - | 2 bolt ISO 100 | 2 bolt ISO 100 | 4 bolt ISO 180 | - | |||
| Shaft | - | ISO 25mm key | ISO 25mm key | ISO 45mm key | - | ||||
| Input shaft torque rating | refer to table on page 16 | ||||||||
| Through drive torque rating (Nm) | SAE A | 61 | 123 | ||||||
| SAE B | 155 | 290 | 340 | ||||||
| SAE B-B | - | 290 | 550 | ||||||
| SAE C | - | 400 | 700 | 990 | |||||
| SAE C-C | - | 700 | 990 | ||||||
| SAE D | - | 700 | 990 | ||||||
| SAE E *4 | - | 990 | |||||||
