| Quantity: | |
|---|---|
109-1-40
Xeriwell or Others
| Product Name: | Steering Control Unit | Feature: | For Kubota |
|---|---|---|---|
| OEM: | K7561-41510 | Replace: | OSPM 40 ON |
| Displacement: | 40cc | Fuction: | ON |
| Suit: | RTV900, RTV900XT | ||
| Highlight: | power steering valve,hydraulic steering gear | ||
| Main Specification | ||||||
| Parameters | Type 109*-1-***-**-* | |||||
| Displacement(mL/r) | 20 | 32 | 40 | 50 | 63 | 80 |
| Rated flow(L/min) | 3~20 | |||||
| Rated Pressure(MPa) | 12.5 | |||||
| Relief Valve Pressure Settings(MPa) | 06,07,08,09,10 | |||||
| Shock Valves Pressure Settings(MPa) | 12,13,14,15,16 | |||||
| Steering Torque(N·m) | ≤1.8 | |||||
| Max．Cont．Preesure in Line T-PT(MPa) | 1 | |||||
| Dimension L(mm) | 87 | 92 | 96 | 100 | 105 | 113 |

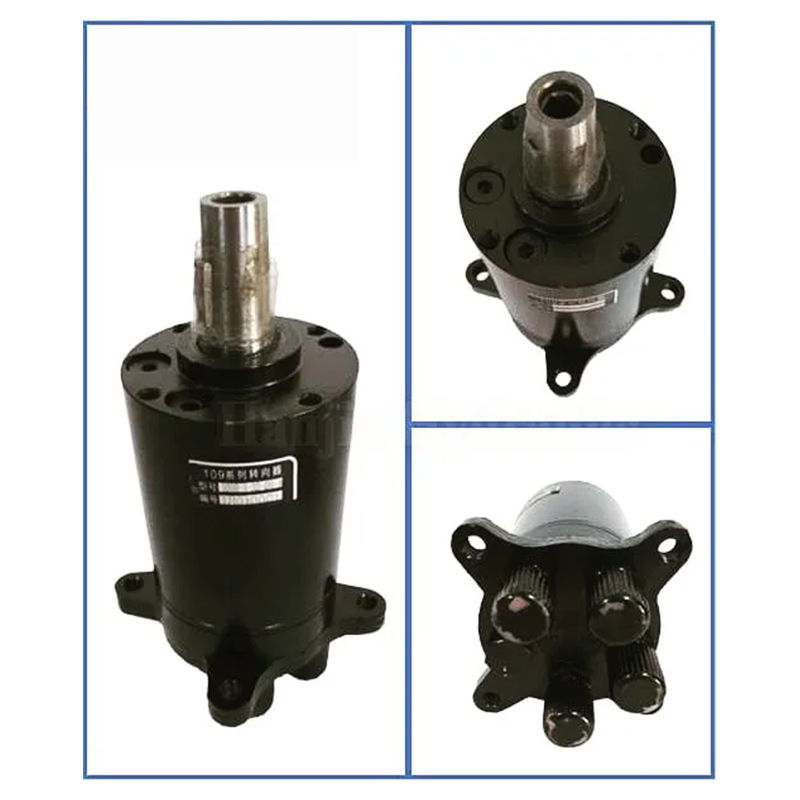

Kubota K7561-41510 Steering Valve Replacement, Kubota Orbitrol Steering
K7561-41510
OSPM 40 ON
This new replacement steering valve for the RTV900, RTV900XT, and RTV1140 Utility Vehicle, this an exact fit replacement for the Kubota K7561-41510.
Replaces the following part numbers:
K7561-41510
this valve is totally same as original, requires no modifications when install, and
all the working functions are the same. It can be directly used under the original steering wheel and use all the existing mounting hardware.
With our years of experience, Xeriwell - a manufacturer specialized in hydraulic steering unit, we have the high standard of quality with our Steering Unit lines. We have steering unit for :
