BMPH
Xeriwell or Others
| Model No.: | BMP/BMPH | Application: | Agricultural Equipment |
|---|---|---|---|
| Certificate: | ISO9001-2015 | Torque: | 182/227 Nm |
| Max Power: | 11.0/13.0KW | Max Flow: | 60/75LPM |
| Highlight: | Harvester oil seal motor,oil seal motor CB11516604,CB11516604 oil seal motor | ||

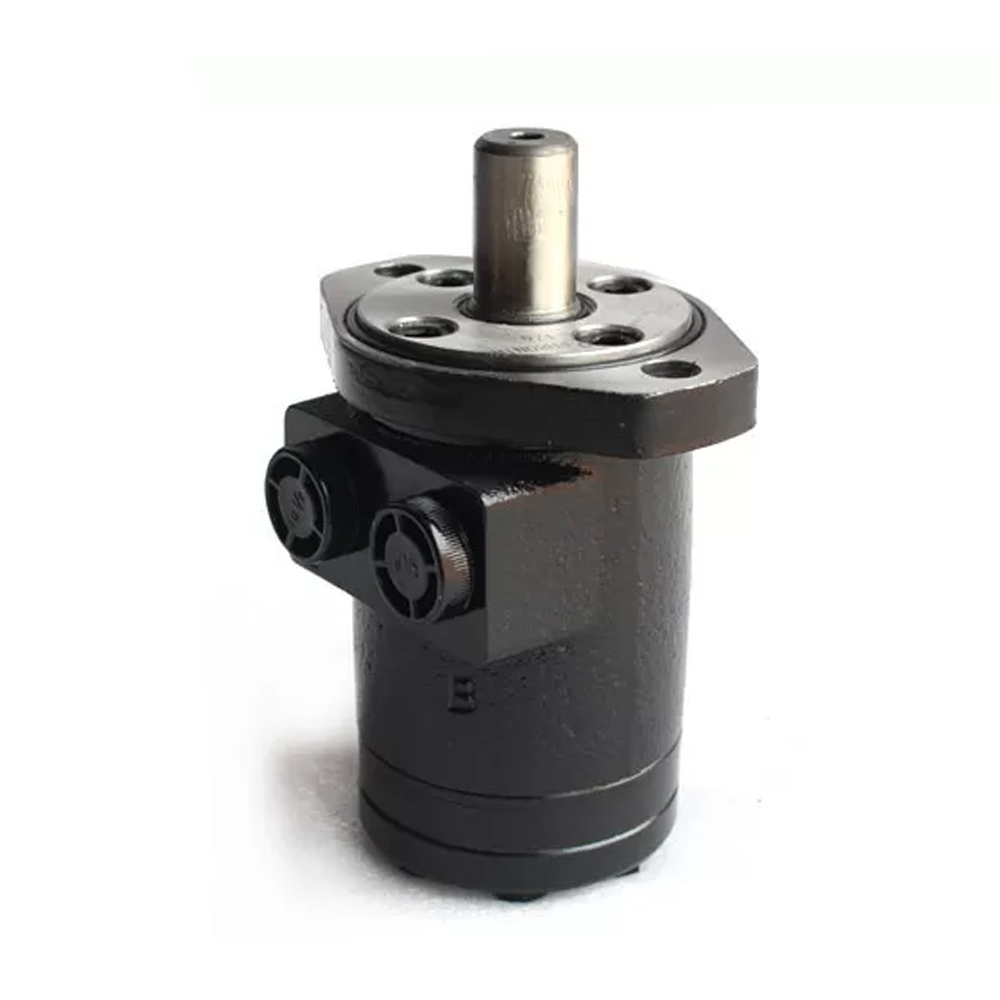

John Deere Sugarcane Harvester CB11516604 Hydraulic Components Charlynn H Series Gerotor Motor
Designed for medium duty applications, these motors use industry-proven spool valve technology combined with state of-the-art gerotors. In addition, a wide variety of mounting flanges, shafts, Ports and valving options provide design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor, and equipment can be driven direct, eliminating costly mechanical components.
HYDRAULIC SPOOL VALVE MOTOR |
- Displacement: 96.2cc |
- Flange H2 Ø106.4mm |
- Shaft: Ø25.4mm,woodruff key φ25.4X6.35 |
- Ports: 1/2 BSP" (A & B), 1/4" BSP (T) |
John Deere CH570 CH670 sugarcane equipment |
| EATON CHARLYNN TYPE | Xeriwell TYPE |
| J (129-) | BMM |
| H (101-) | BMPH |
| S (103-) | BMRS/BMRW |
| T (158-) | BMRS/BMRW |
| W (162-) | BMRS/BMRW |
| 2000 (104-, 105-, 106-, 193-) | BMK2 |
| 4000 (109-, 110-, 111-) | BMK4 |
| 6000 (112-, 113-, 114-) | BMK6 |
| 10000 (119-) | BMK10 |
Applications
Harvestor / harvester built for harvesting specific crops.
Bean harvester
Beet harvester
Carrot harvester
Combine (grain) harvester
Combine (grain) Stripper
harvester Header
Corn harvester
Forage or silage harvester
Grape harvester
Over-the-row mechanical harvester for harvesting apples
Potato harvester
Potato spinner
Sugarcane harvester
Variations of harvesters are stripper cleaners and stripper loaders.
