| Quantity: | |
|---|---|
BMPH/BMRS
Xeriwell or Others

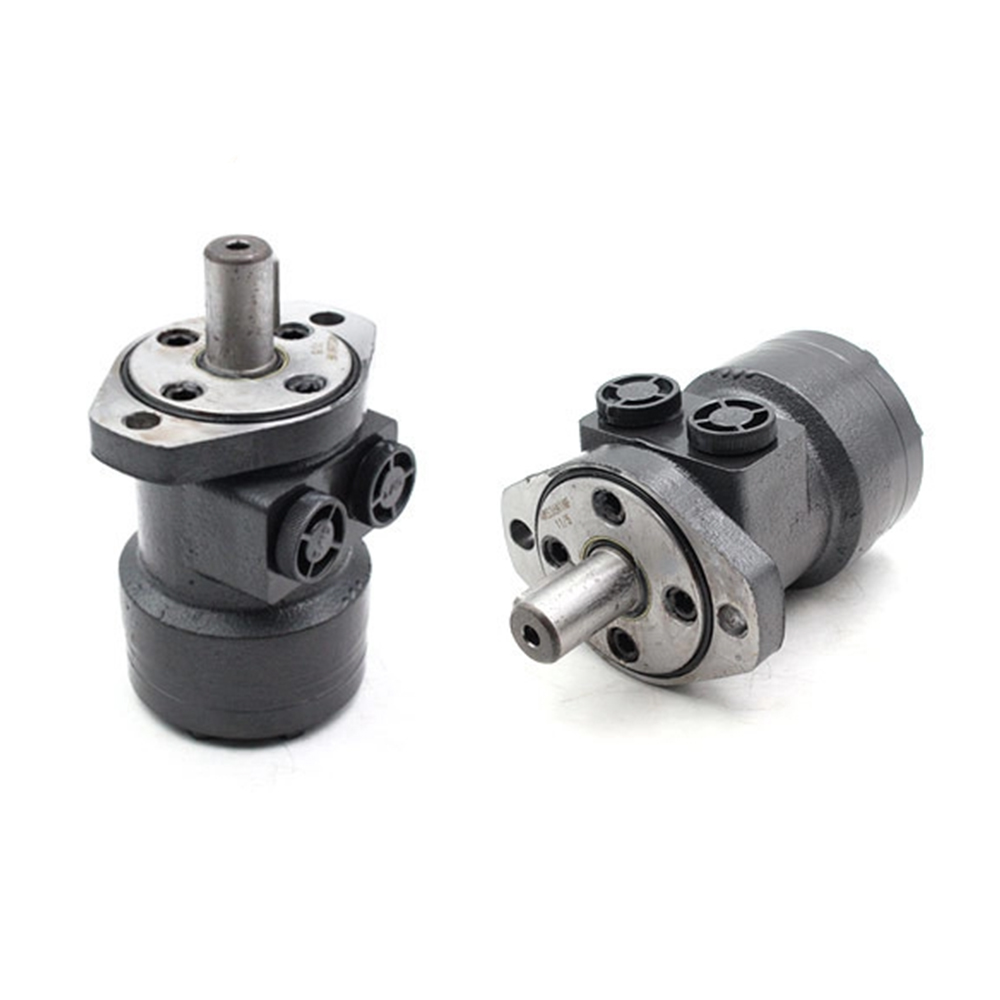

| Product: | Gerotor Hydraulic Motor | Replace: | 158-,101,103 |
|---|---|---|---|
| Alternative: | Danfoss, White, Eaton, Parker | Displacement: | 36/50/80/100/125/200/315 |
| Flange: | 2 Bolt Std,Square Flange | Shaft: | Spline,key Shaft |
| Port: | .3125-18 UNC,G1/2 | Application: | Harvester Head Belt Drive |
| Highlight: | Belt Drive Motor AXE72733,Eaton T Series Motor 158-4317-001,Belt Drive Motor 158-4317-001 | ||
Quick review:
Item #: 158-4317-001
Product Info
Art Part #: AXE72733
Brand: Xeriwell Technology
Displacement: | 65CC |
| Mounting_Type: | 4 Bolt Std – 82.50 [3.248] Dia. X 3.05 [.120] Pilot, 13.59 [.535] Dia. Mounting Holes On 106.35 [4.187] Dia. B.C. |
| Output_Shaft_Type: | Spline |
| Port_Type: | Manifold Ports (.3125-18 UNC-2B Mounting Holes) |
| Flow_Rate: | 57 litre per minute |
| Maximum_Speed: | 607 revolutions per minute |
| Torque: | 183 newton metre |
| Two_Speed_Ratio: | None |
Fits On
630FD - Combine, Platform (Cutting)
630FD Dual Guide Cutting Platform (S.N. 120100 - 120103)(South America Edition) - PC13317
630FD - Combine, Platform (Cutting)
630FD Flex Draper Cutting Platform (S.N. 115100- )(Argentina Edition) - PC13019
630FD - Combine, Platform (Cutting)
630FD Flex Draper Cutting Platform (S.N. 115100- )(South America Edition) - PC12758
630FD - Combine, Platform (Cutting)
630FD Flex Draper Platform (North American Edition) - PC11904
730FD - Combine, Platform (Cutting)
730FD Cutting Platform (PIN: 1J0730FDXXX125100- )(Argentina Edition) - PC13449
730FD - Combine, Platform (Cutting)
730FD Dual Guide Cutting Platform (South America Edition) - PC13206
730FD - Combine, Platform (Cutting)
730FD Flex Draper Platform (Worldwide Edition) - PC13490
RD30F - Platform
RD30F Rigid Draper Flex Cutter Bar - PC13983
