119-1030-003
Xeriwell or Others
| Type: | Hydraulic Drive Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | 119-1030-003 | Size: | 630 Ml/r |
| Replace: | Char-Lynn 10000 Series | Flange: | 4-hole Flange |
| Shaft: | 57.15mm Key Shaft | Oil Port: | 1.3125-12 UN-2B SAE O-RING |
| Drain : | .5625-18 UNF-2B | Application: | Any Place Need Hydraulic Drive |
| Highlight: | 119-1030-003 Hydraulic Motor,630 Ml/R Hydraulic Motor,Interchange Hydraulic Motor | ||

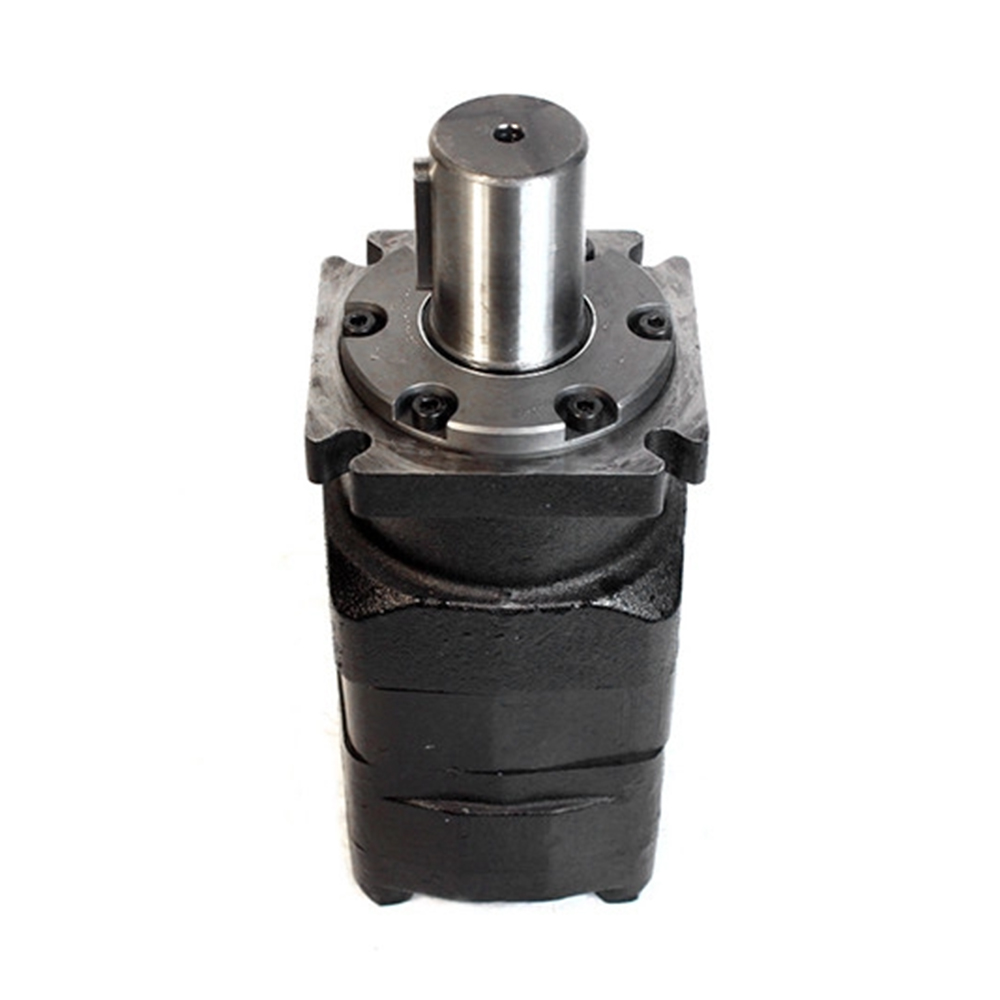

119-1030-003 Char-Lynn 10000 Series Interchange Hydraulic Motor
Quick review:
| 1, | model number | 119-1030-003 |
| 2, | displacement | 665.3 CM3/R |
| 3, | flange | 4 - hole flange |
| 4, | shaft | 57.15mm DIA. STRAIGHT |
| 5, | oil port | 1.3125-12 UN-2B SAE O-RING |
| 6, | drain | .5625-18 UNF-2B |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace |
Xeriwell Hydraulics deliver BMV SERIES orbit motors for replacement. A lot of builds from the US have special engine from Char-lynn 10000 series mounted. We are able to deliver a large number of compatible engines on a short notice.
Xeriwell 10000 series = Char-lynn 10000 series
Xeriwell BMV = Char-lynn 119-
Specifications:
Main Specifications:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
