| Quantity: | |
|---|---|
CBT-E3, CBF, CBG-F3, GPC4, G5
Xeriwell or Others
| Product Name: | Hydraulic Gear Pump | Theory: | Rotary Pump |
|---|---|---|---|
| Pressure: | High Pressure | Displacement: | 3~30ml/r |
| Max.pressure: | 15-20Mpa | Shaft: | Tang Claw Shaft,Tappered Key |
| Highlight: | small gear pump,industrial hydraulic pump | ||

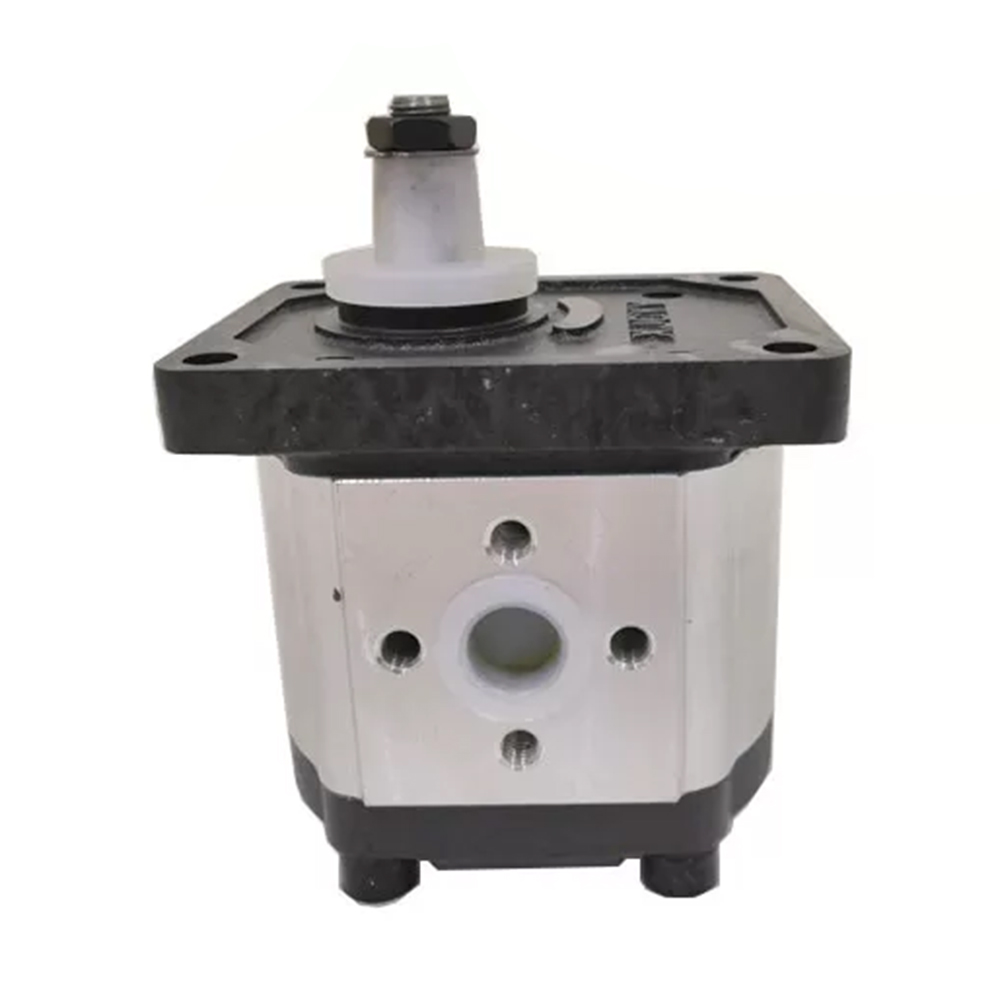

Hydraulic pump Gear pump JC20C12X186 used for Fiat MF CBT OF CBT-20
Introduction and Features:
Xeriwell pumps and motors are high volumetic efficiency and long life achieved by smart design and accurate control of machining tolerances
Fine finished steel gears,Hi-resistant Extruded alluminum body, Hi-resistant Die cast alluminum cover(BAP2) or cast-iron cover(BHP2), Low-friction die casting alluminum bushes,and DU slide bearing,all these keep low pulsation,low noise and long life.
Full option of shafts,flanges and ports as for European,German and America standards
Nitrile seals as standard and viton seals available for high temperature application,high pressure shaft seals are also available.
Motor and bi-direction pump available
Available as multiple pump either of the same or different group
We test 100% of the pumps and motors after assambling to ensure the high standard performance.
Our team have worked in hydraulics for about 20 years. Our technical people are very skilled in producing gear pump.
We have supplied to many world-famous company all over the world.
Specifications:
| Type | Displacement | Max.pressure | Max.speed | Min.speed | ||
| P1 | P2 | P3 | ||||
| cm3/rev | bar | bar | bar | r/min | r/min | |
| CBT | 3 | 270 | 285 | 300 | 4000 | 800 |
| CBT | 4 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 6 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 8 | 270 | 285 | 300 | 3500 | 500 |
| CBT | 10 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 12 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 14 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 16 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 18 | 250 | 265 | 280 | 3600 | 400 |
| CBT | 20 | 220 | 235 | 250 | 3200 | 400 |
| CBT | 22 | 220 | 235 | 250 | 3000 | 400 |
| CBT | 25 | 200 | 215 | 230 | 3000 | 400 |
| CBT | 28 | 180 | 190 | 200 | 2500 | 400 |
| CBT | 30 | 160 | 170 | 180 | 2500 | 400 |
| 性能参数 Specifications and application data | ||||||||
| 型号 Model | 公称排量 Nominal Displacement (ml/r) | 公称转速 Nominal Speed (r/min) | 最高转速 Max Speed (r/min) | 最低转速 Min Speed (r/min) | 额定压力 Rated Pressure (MPa) | 最大压力 Max Pressure (MPa) | A(mm) | B(mm) |
| CBT-F213RS*2 | 1.3 | 2000 | 3000 | 600 | 20 | 23 | 76 | 34.5 |
| CBT-F221RS*2 | 2.1 | 79 | 36 | |||||
| CBT-F223RS*2 | 2.3 | 80 | 36.5 | |||||
| CBT-F225RS*2 | 2.5 | 80.5 | 37 | |||||
| CBT-F232RS*2 | 3.2 | 83 | 38 | |||||
| CBT-F235RS*2 | 3.5 | 85 | 39 | |||||
| CBT-F242RS*2 | 4.2 | 87 | 40 | |||||
Applications:
Hydraulic system:36.9%; Agriculture machine:24.4%;
Constraction machine:19.6%; Automobile:12.3%5.Others:4.1%.
