| Quantity: | |
|---|---|
BMER-2-300WD-G2R
Xeriwell or Others
| Type: | Mowers Spare Parts | Itemt: | Hydraulic Wheel Motor |
|---|---|---|---|
| Replace: | Parker And White | Flange: | 4-hole Wheel Mount |
| Shaft: | 31.75mm | ||
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||

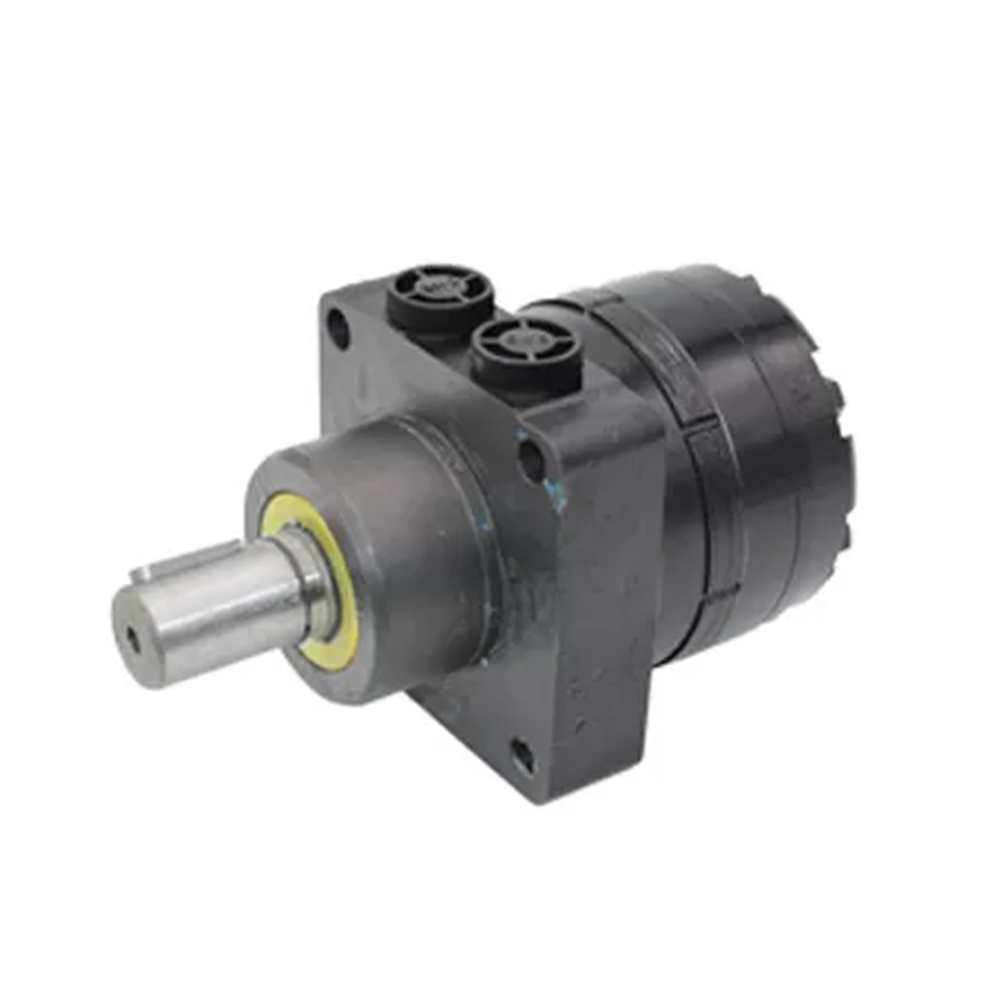

Hydraulic Wheel Motor Lawn Mower Parts & Accessories, Parker and White Wheel Motor Right and Left 31.75mm Shaft
Commercial Mower Wheel Motors: Xeriwell produce Wheel motors for Lawn Mowers. Xeriwell is your place! We have the Commercial Mower Wheel Motors you need, with fast shipping and great prices. For Commercial Mower parts and accessories, contact Xeriwell!
This Hydraulic Wheel Motors is Parker wheel motor replacement, blows its competition away with its high volumetric efficiency, high starting torque, and heavy-duty bearings No gears required - this motor is direct drive Always make sure to replace the wheel motor and lines, flush the tanks, and install a new oil filter when installing a hydro pump - failing to do so may cause the hydro pump to fail
Features and benefits include:
Robust construction for longer life Continuous oil flow across internal splines for longer life Superior side load capacity Smooth, extra low speed operation High pressure shaft seal as standard Innovative design eliminates the need for a drain Roller vanes and sealed commutator maintain high efficiency and provide smooth low speed performance.
Main Specificaion:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
| Eaton/ / White/ Parker |
| 101-1001 |
| 101-1004 |
| 101-1022 |
| 101-1031 |
| 103-1004 |
| 103-1027 |
| 103-1030 |
| 103-1032 |
| 104-1001 |
| 104-1002 |
| 104-1004 |
| 104-1027 |
| 104-1028 |
| 112-1068 |
| 119-1030 |
| 119-1031 |
| 119-1028 |
| 119-1029 |
| TE0065 |
| TE0100 |
| TE0165 |
| TE0195, TF |
| TG0475 |
| TG0530 |

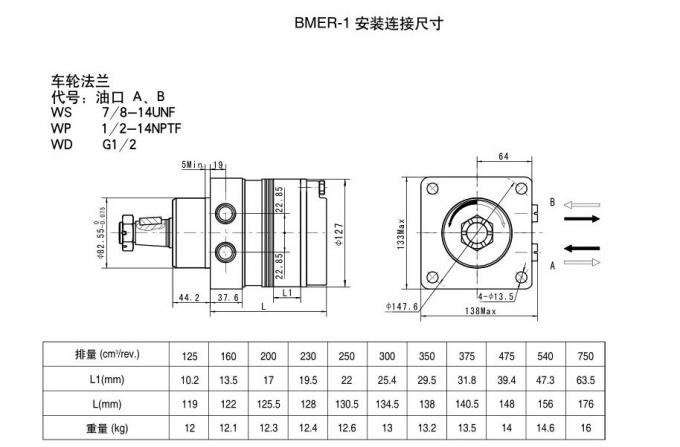

| 排量 (cm3/rev.) | 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 |
| L1(mm) | 10.2 | 13.5 | 17 | 19.5 | 22 | 25.4 | 29.5 | 31.8 | 39.4 | 47.3 | 63.5 |
| L(mm) | 119 | 122 | 125.5 | 128 | 130.5 | 134.5 | 138 | 140.5 | 148 | 156 | 176 |
| 重量 (kg) | 12 | 12.1 | 12.3 | 12.4 | 12.6 | 13 | 13.2 | 13.5 | 14 | 14.6 | 16 |
