| Quantity: | |
|---|---|
OSPC 500 ON
Xeriwell or Others
| Product: | Hydraulic Steering Orbitrol | Application: | Tractors, Forklifts, Excavators, Combine Harvesters And Construction Machinery |
|---|---|---|---|
| Model No.: | OSPC 500 ON | Size: | 500 Ml/r |
| Function: | ON | MOQ: | 100 Pcs |
| Warranty: | 12 Months | Max Inlet Pressure: | 16 MPa |
| Recommended Hydraulic Oil Viscosity: | 17cst ~ 33cst | Allow Normal Oil Temperature: | 20 ℃ - 80 ℃ |
| Permissible Limit Oil Temperature: | -30℃ - 100 ℃ | Steering Wheel Free Turning Angle: | 9.5° |
| Recommended Steering Wheel Diameter: | ≤500mm | Steering Wheel Maximum Speed: | ≤100 Rpm |
| Recommended Oil Supply Line Flow Rate: | ≤1.5 M/s | Suggested Return Line Hydraulic Oil Flow Rate: | ≤4~5 M/s |
| Highlight: | OSPC 500 ON orbitrol steering unit,Sauer Danfoss 150N2158 orbitrol steering unit | ||

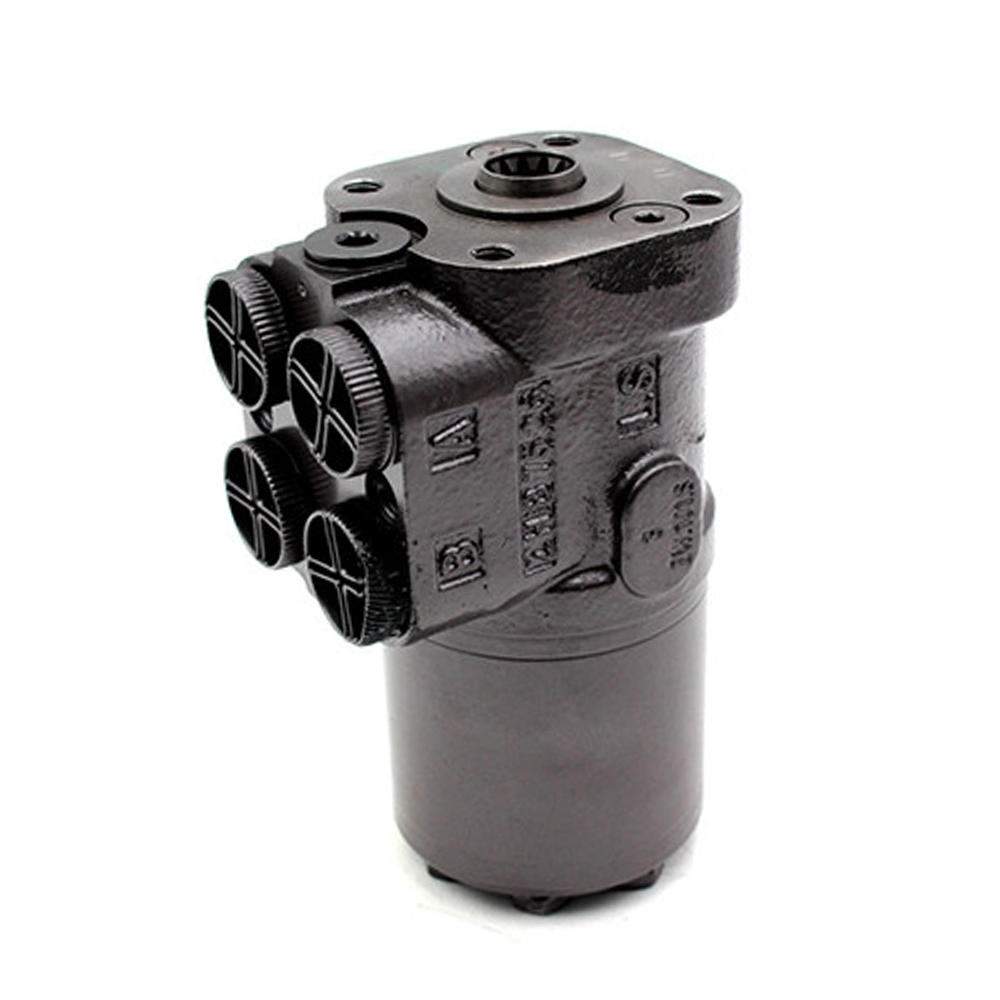

Hydraulic Steering Orbitrol OSPC 500 ON 1/2" to suit Sauer Danfoss 150N2158
 | Application:
|
Technical specifications:
P, T, A, B Internal thread [BSP]: 1/2" |  |
 | Advantages of Xeriwell hydraulic orbitrols: A special, reinforced and precisely manufactured structure ensures perfect function without leaks, without jerking of the steering wheel and, above all, for very light and smooth steering, even with heavily loaded vehicles. Each Orbitrol is sent with instructions on how to connect the hydraulic lines, we also offer full technical support in selecting the right Orbitrol and with assembly.
|
All parts can be delivered Worldwide:
| OSPC 50 | OSPB 50 |
| OSPC 63 | OSPB 63 |
| OSPC 100 | OSPB 100 |
| OSPC 125 | OSPB 125 |
| OSPC 160 | OSPB 160 |
| OSPC 200 | OSPB 200 |
| OSPC 250 | OSPB 250 |
| OSPC 280 | OSPB 280 |
| OSPC 315 | OSPB 315 |
| OSPC 400 | OSPB 400 |
| OSPC 500 | OSPB 500 |
