| Quantity: | |
|---|---|
CBT-E3, CBF, CBG-F3, GPC4, G5
Xeriwell or Others
| Product Name: | Hydraulic Gear Pump | Theory: | Rotary Pump |
|---|---|---|---|
| Pressure: | High Pressure | Displacement: | 3~30ml/r |
| Max.pressure: | 15-20Mpa | Shaft: | Tang Claw Shaft,Tappered Key |
| Highlight: | high pressure gear pump,small gear pump | ||

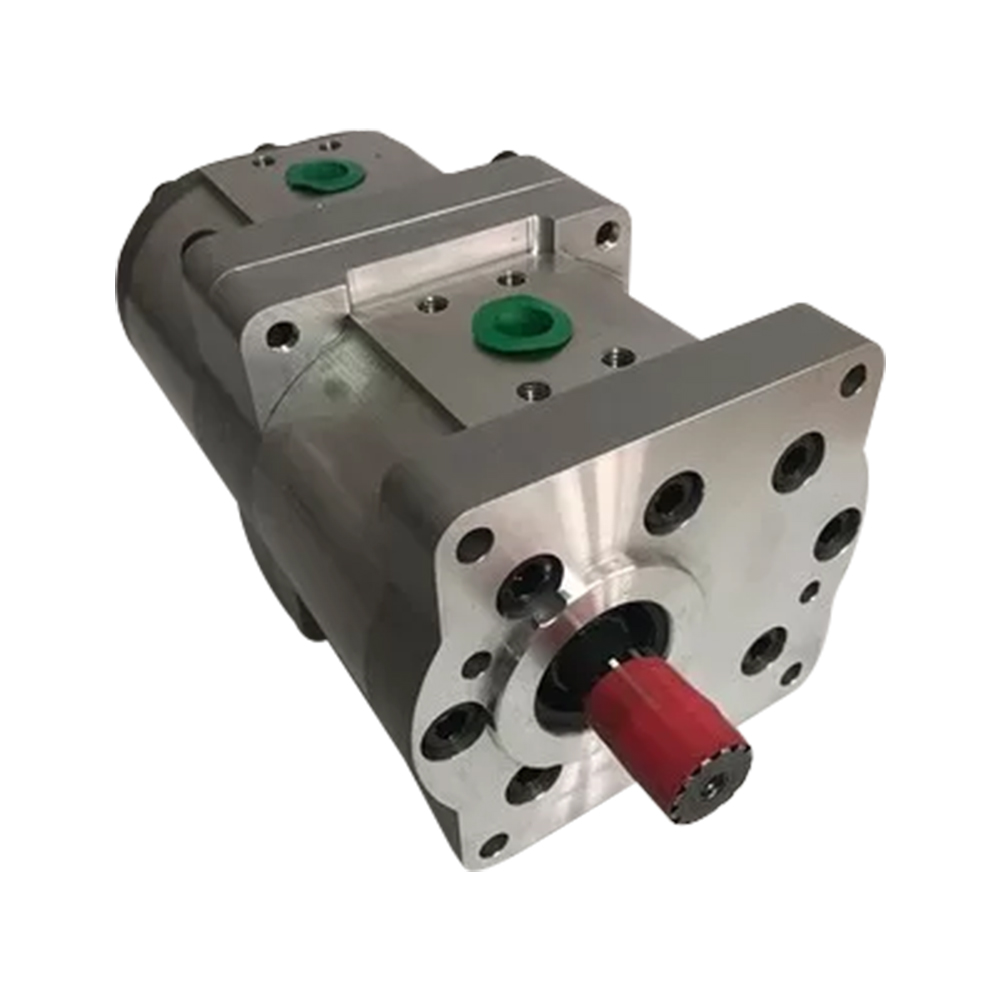

Hydraulic Pump Komatsu for Excavator Komatsu Double Pump 32cc + 32cc
Xeriwell hydraulic factory can provide hydraulic product customization services, such as Komatsu, and other international famous brands of machinery can be customized, quality and cheap
The CBT-F3****** Series double gear pumps are external gear pumps with low noise. The features of the pumps are its axial clearance automatic and radial hydraulic balance.
This series pumps also have the advantages of its simple structure, reliable performance, volume efficiency, shock resistence and long life series.
Features:
1. Low noise and long service life.
2. Application of high strength aluminum alloy materials, light weight, low installation labor intensity.
3. Input shaft types: key,rectangular spline,involute spline and woodruff.
4. Connections types for the inlet and outlet ports: thread or flange etc.
5. Axial gap automatic compensation mechanism keeps high volumetric efficiency.
Specifications:
| Type | Displacement | Max.pressure | Max.speed | Min.speed | ||
| P1 | P2 | P3 | ||||
| cm3/rev | bar | bar | bar | r/min | r/min | |
| CBT | 3 | 270 | 285 | 300 | 4000 | 800 |
| CBT | 4 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 6 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 8 | 270 | 285 | 300 | 3500 | 500 |
| CBT | 10 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 12 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 14 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 16 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 18 | 250 | 265 | 280 | 3600 | 400 |
| CBT | 20 | 220 | 235 | 250 | 3200 | 400 |
| CBT | 22 | 220 | 235 | 250 | 3000 | 400 |
| CBT | 25 | 200 | 215 | 230 | 3000 | 400 |
| CBT | 28 | 180 | 190 | 200 | 2500 | 400 |
| CBT | 30 | 160 | 170 | 180 | 2500 | 400 |
Applications:
Hydraulic Gear Pump can widely use for agricultural machines and construction machines.
Xeriwell mainly products catalogue:
3. Xeriwell Gear pumps: CBT, CBG-F3, GPC4, G5, Quality same as Parker Gear Pumps, also can replace Caproni, Rexroth etc. We also accept OEM.
4. Xeriwell Hydraulic Monoblock Valve: P40, P80, etc.
Xeriwell Hydraulic gear pump for any hydraulic system, our company uses high-end machine tools, excellence, the most humane service, manufacture and service the world, with good products and services to serve the world, welcome advice.
| ■性能参数 Specification | ||||||||
| 型号 | 公称排量 | 压力Pressure(Mpa) | 转速Speed(r/min) | A(mm) | B(mm) | |||
| Model | Disp.(Ml/r) | 额定Rated | 最高Max | 额定Rated | 最高Max | 最低Min | ||
| CBT–F306 | 6 | 20 | 25 | 2000 | 3000 | 600 | 47 | 103 |
| CBT–F308 | 8 | 20 | 25 | 2000 | 3000 | 600 | 49 | 106.5 |
| CBT–F310 | 10 | 20 | 25 | 2000 | 3000 | 600 | 50 | 109 |
| CBT–F312 | 12 | 20 | 25 | 2000 | 3000 | 600 | 52 | 113 |
| CBT–F314 | 14 | 20 | 25 | 2000 | 3000 | 600 | 53 | 115 |
| CBT–F316 | 16 | 20 | 25 | 2000 | 3000 | 600 | 54.5 | 118 |
| CBT–F320 | 20 | 20 | 25 | 2000 | 3000 | 600 | 58 | 125 |
| CBT–F325 | 25 | 20 | 25 | 2000 | 3000 | 600 | 62 | 133 |
