| Quantity: | |
|---|---|
101s Steering Units Opened circuit / Closed circuit
Xeriwell or Others
| Features: | OSPC**ON , OSPC**CN | Product Name: | Hydraulic Steering Unit 101S |
|---|---|---|---|
| Brand: | Xeriwell | Displacement: | 50cc - 800cc |
| Application: | Agriculture And Industrial Tractors | Model Number: | 101s Open Center / Closed Center |
| Highlight: | hydrostatic steering unit,hydraulic steering pump | ||

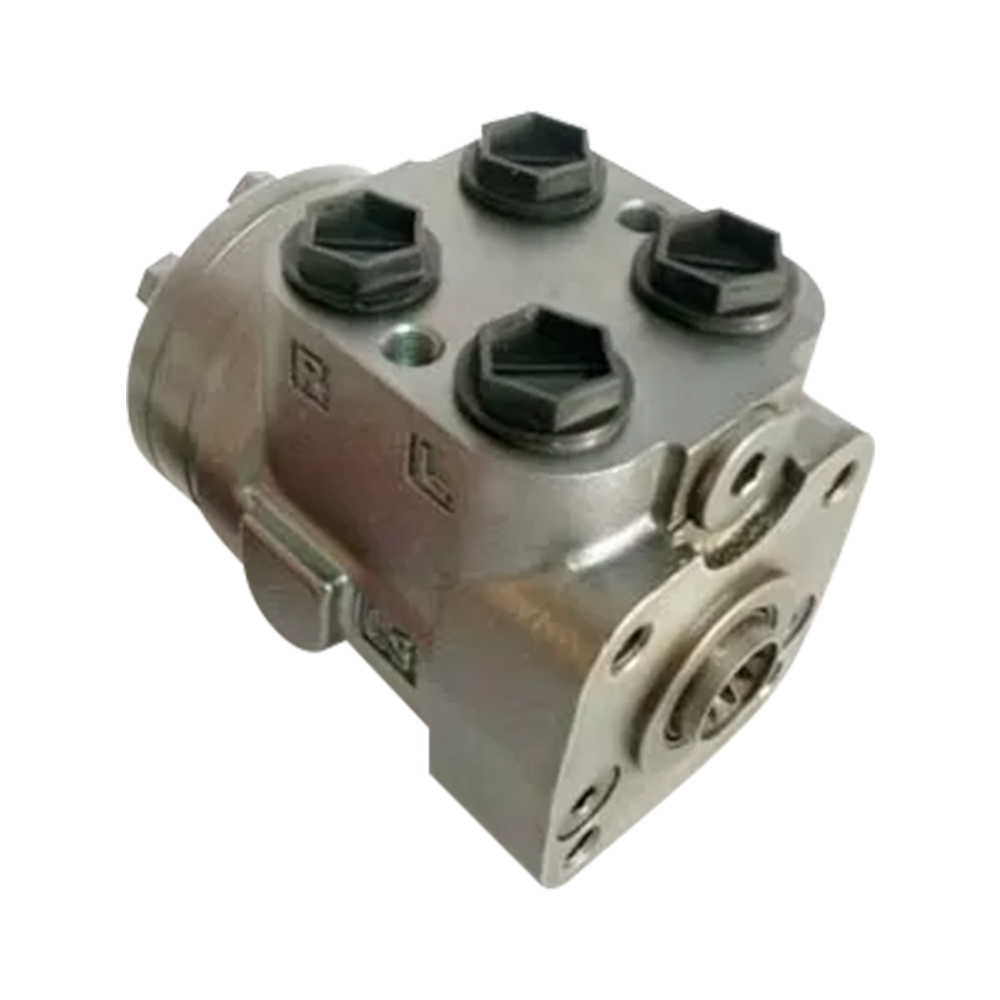

Hydraulic Steering Unit 101S For , FIAT Agriculture / Industrial Tractor Parts
1. Characteristic Features
► 101S Hydraulic Steering Units used for Agriculture and Industrial Tractors, FIAT, , , Kubota, , .
► 101S Hydraulic Steering Units fitting for European and American standards, same than OSPC, M+S HKUS Serirs Tractor steering units.
2. Specification
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| 油口螺纹 Ports Threads | |||
| 代码 Code | P、T、A、B油口 Ports P,T,A,B | 连接螺纹C Column Mounting C | 连接螺纹V Valve Mounting V |
| A | M20×1.5 | M10 | M12 |
| B | M20×1.5 O-ring | ||
| C | M18×1.5 | ||
| D | M18×1.5 O-ring | ||
| E | G1/2 | M10×1 | |
| U | G1/2 O-ring | ||
| M | 3/4-16UNF O-ring | M12 | |
| F | 3/8-16 UNC | 3/8-24 UNF | |
| I | M10 | M10 | |
| N | M10×1.25 | ||
| 注1：油口P、T、A、B的深度15 mm，连接螺纹C、V的深度16 mm。 Note 1:Ports P,T,A,B Depth:15 mm;Column Mounting C &V Depth:16 mm. 注2：其他油口连接方式协议确定代号。 Note 2:The code of other ports dimensions will be listed in an agreement. | |||
3. Application
FIAT Agriculture and Industrial tractors OEM Spare Parts Hydraulic Steering Units
► 101s-80cc, 101s-100cc, 101s-125cc, 101s-160cc
► 101s-5T-80cc, 101s-5T-100cc, 101s-5T-125cc, 101s-5T-160cc
► 101-80cc, 101-100cc, 101-125cc, 101-160cc
Xeriwell Hydraulic Steering Unit match , M+S and Match Tractor OEM Number
► 5164616 / 5143326 / 38717053
► 5165251 / 38702004
► 366441A1 / 88107C93 / 88107C92 / 88107C91 / 38702000
► 38702131 / 1-33-247-001
► IH 5165251 / 38702004
► IH 366441A1 / 88107C93 / 88107C92 / 88107C91 / 38702000
► FIAT 5140381 / 38717671
► FIAT 5164616 / 5143320 / 5140382 / 5143326 / 38717053
► FIAT 5170488 / 5143323 / 38717056
► FIAT 5165251 / 5126023 / 5140383 / 38717054
► FIAT 5164615 / 5146634 / 38717055
► FIAT 5146638 / 38717058
