| Quantity: | |
|---|---|
BMR
Xeriwell or Others
| Products: | Hydraulic Motors | Characteristic: | Gerotor / Gerolor |
|---|---|---|---|
| Packing: | Carton | Warranty: | 18 Months |
| Color: | Black, Gray, Blue | HS Code: | 84122910.00 |
| Highlight: | heavy duty hydraulic motor,hydraulic lift motor | ||

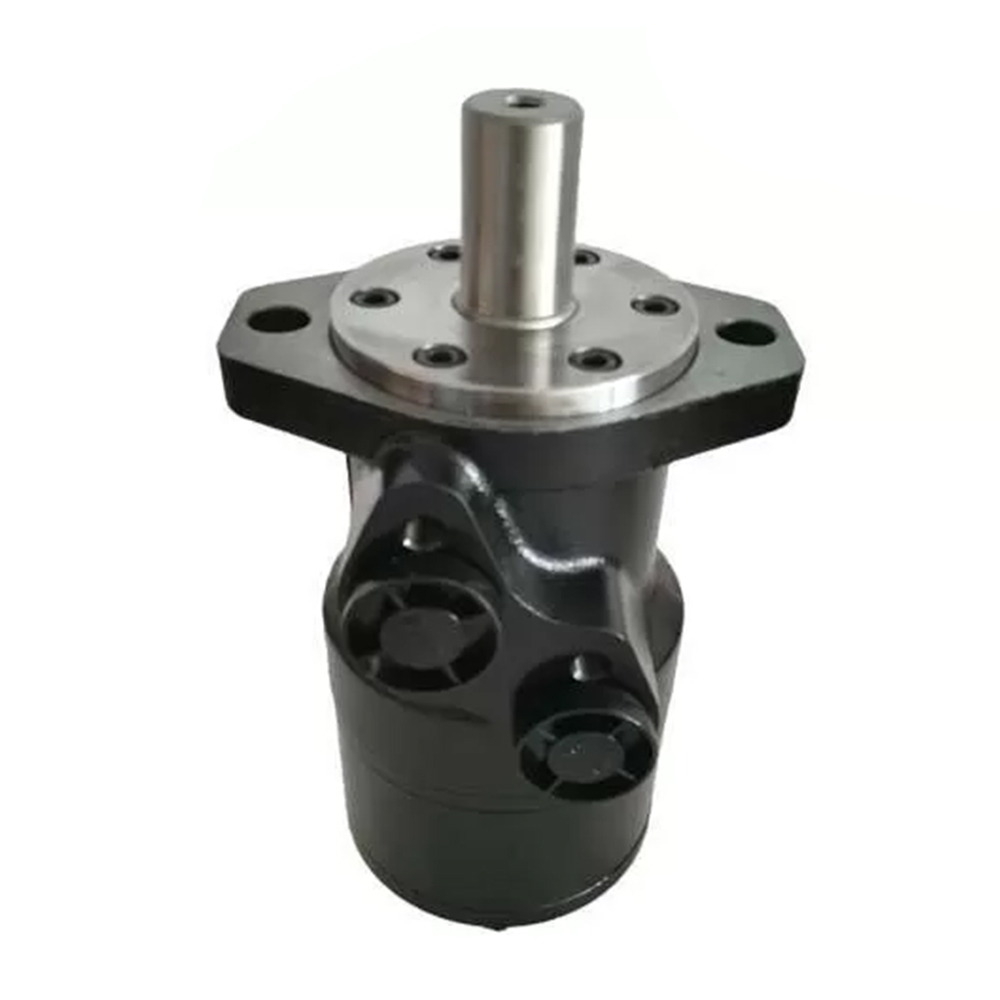

Hydraulic Pneumatic Automation Spare Parts Engineering Geroler Orbital Motor
Description:
Hydraulic orbit Motor is one type of high torque low speed hydraulic motors, with high efficiency and long life. BM motor has a wide speed range, high starting torque and rotating stable at high speed compact and light. It can be connected to working machine directly, adapted to all kinds of low speed heavy load facilities.
Mounting Data:
Flange:
2: 2-Ø13.5Rhomb-flange, pilot Ø82.5×8
4: 4-Ø13.5Rhomb-flange, pilot Ø82.5×8
H4: 4-3/8-16 Square-flange, pilot Ø44.4×2.8
H5: 4-M10 Square-flange, pilot Ø44.4×2.8
Shaft:
A: Shaft Ø25,parallel Key 8x7x32
C: Shaft Ø25.4,parallel Key 6.35x6.35x31.75
E: Shaft Ø25.4,splined tooth SAE 6B
R: Short shaft Ø25.4,parallel key 6.35x6.35x31.75
B: Shaft Ø32,parallel Key 10x8x45
F: Shaft Ø31.75,splined tooth 14-DP12/24
FD: Long shaft Ø31.75,splined tooth 14-DP12/24
G: Shaft Ø31.75,parallel Key 7.96x7.96x31.75
T: Cone-Shaft Ø28.56,parallel Key B5x5x14
Ports and Drain Port:
D: G1/2 Manifold Mount 4-M8, G1/4
M: M22×1.5 Manifold Mount 4-M8, M14×1.5
S: 7/8-14 O-ring manifold 4-5/16-18UNC, 7/16-20UNF
P: 1/2-14 NPTF Manifold 4-5/16-18UNC, 7/16-20UNF
R: PT(Rc)1/2 Manifold 4-M8, PT(Rc)1/4
Main Specifications:
| Technical data for BMR with 25 and 1 in and 1 in splined tapered shaft: |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
