BMP
Xeriwell or Others
| Product: | Hydraulic Motor | Feature: | Gerotor / Gerolor |
|---|---|---|---|
| Type: | BMP/OMP | Shaft: | 25mm,25.4mm,32mm |
| Warranty: | 12 Months | HS Code: | 84122910.00 |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||

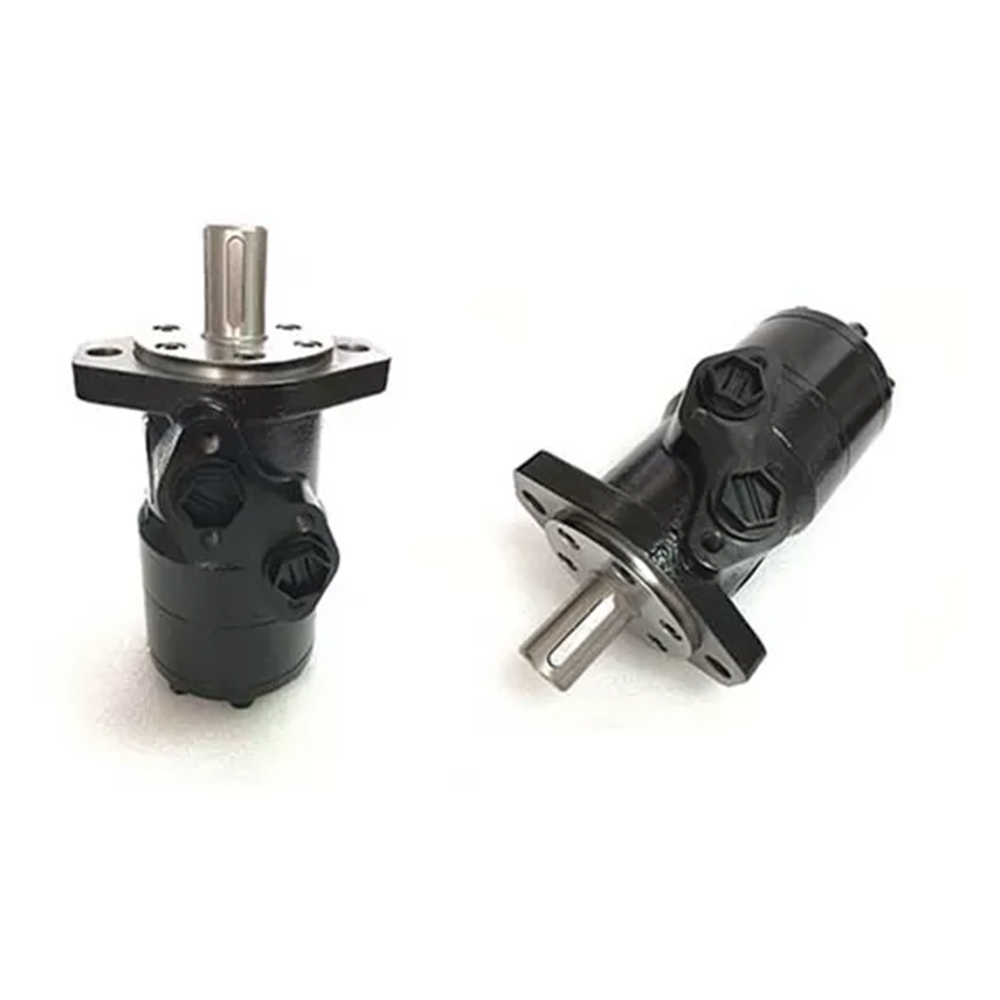

Hydraulic Part LSHT Oil Motor BMP/OMP Series for Forestry Equipment
Introduction:
Xeriwell Hydraulic, as a professional manufacturer of hydraulic products, mainly produce and export hydraulic orbital motors, gear motor and steering units. We service the walking, steering, power transmission and lifting systems. From big to small, our motors displacement from 50ml/r to 1000ml/r. All interchangeable with , Char lynn, M+S series.
Features:
1. Shaft groove distributes flow, simple and compact structure, high accuracy of flow distributing
2. Stator-rotor of toothed shape, high mechanical efficiency, longer working lifetime under high pressure
3. Touching-ball bearing of coupled-angle, bear higher loading in both radial and axial directions, small friction force, high mechanical efficiency
Main Specifications:
| Technical data for BMP with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMP BMPH BMPW 36 | BMP BMPH BMPW 50 | BMP BMPH BMPW 80 | BMP BMPH BMPW 100 | BMP BMPH BMPW 125 | BMP BMPH BMPW 160 | BMP BMPH BMPW 200 | BMP BMPH BMPW 250 | BMP BMPH BMPW 315 | BMP BMPH BMPW 400 | BMP BMPH BMPW 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
Technical data for BMP with 31.75 and 32 shaftt:
| Type | BMP BMPH 36 | BMP BMPH 50 | BMP BMPH 80 | BMP BMPH 100 | BMP BMPH 125 | BMP BMPH 160 | BMP BMPH 200 | BMP BMPH 250 | BMP BMPH 315 | BMP BMPH 400 | BMP BMPH 500 | |
Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
Flange:
2: 2-Ø13.5Rhomb-flange, pilot Ø82.5×8
4: 4-Ø13.5Rhomb-flange, pilot Ø82.5×8
H4: 4-3/8-16 Square-flange, pilot Ø44.4×2.8
H5: 4-M10 Square-flange, pilot Ø44.4×2.8
Shaft:
A: Shaft Ø25,parallel Key 8x7x32
C: Shaft Ø25.4,parallel Key 6.35x6.35x31.75
E: Shaft Ø25.4,splined tooth SAE 6B
R: Short shaft Ø25.4,parallel key 6.35x6.35x31.75
B: Shaft Ø32,parallel Key 10x8x45
F: Shaft Ø31.75,splined tooth 14-DP12/24
FD: Long shaft Ø31.75,splined tooth 14-DP12/24
G: Shaft Ø31.75,parallel Key 7.96x7.96x31.75
T: Cone-Shaft Ø28.56,parallel Key B5x5x14
Ports and Drain Port:
D: G1/2 Manifold Mount 4-M8, G1/4
M: M22×1.5 Manifold Mount 4-M8, M14×1.5
S: 7/8-14 O-ring manifold 4-5/16-18UNC, 7/16-20UNF
P: 1/2-14 NPTF Manifold 4-5/16-18UNC, 7/16-20UNF
R: PT(Rc)1/2 Manifold 4-M8, PT(Rc)1/4
Applications:
BMP hydraulic motors are widely applied in Agriculture machinery and Light Industry.
1. Agriculture machinery: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.
2. Light industry: winding machines, textile machines, printing presses, operating with a washing machine.

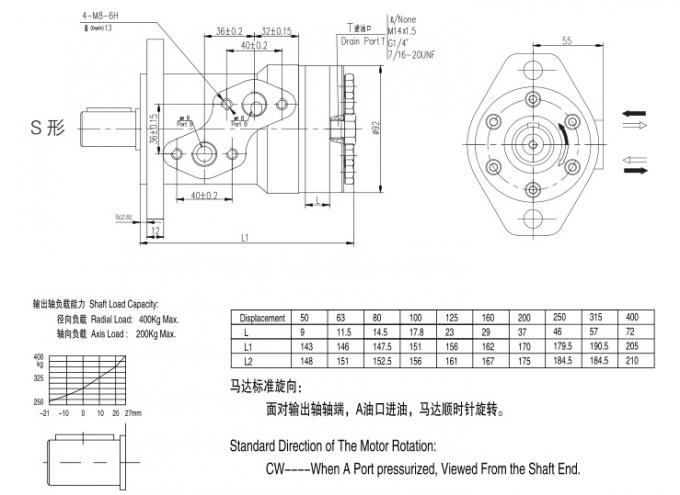

| Displacement | 50 | 63 | 80 | 100 | 125 | 150 | 200 | 250 | 315 | 400 |
| L | 9 | 11.5 | 14.5 | 17.8 | 23 | 29 | 37 | 46 | 57 | 72 |
| L1 | 143 | 146 | 147.5 | 151 | 155 | 152 | 170 | 179.5 | 190.5 | 205 |
| L2 | 148 | 151 | 152.5 | 156 | 151 | 157 | 175 | 184.5 | 184.5 | 210 |
