BMP 400
Xeriwell or Others
| Product Name: | Hydraulic Gear Motors | Max Working Temperature: | 80° |
|---|---|---|---|
| Displacement: | 50cc,80cc, 100cc,125cc,160cc......500cc | Applications: | Agricultural Machine, Transportation, Construction Equipment, Metallurgical, Marine, Etc. |
| Replacement: | OMP, Eaton H, M+S MP Etc | Max Allowable Back Pressure: | 10Mpa |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

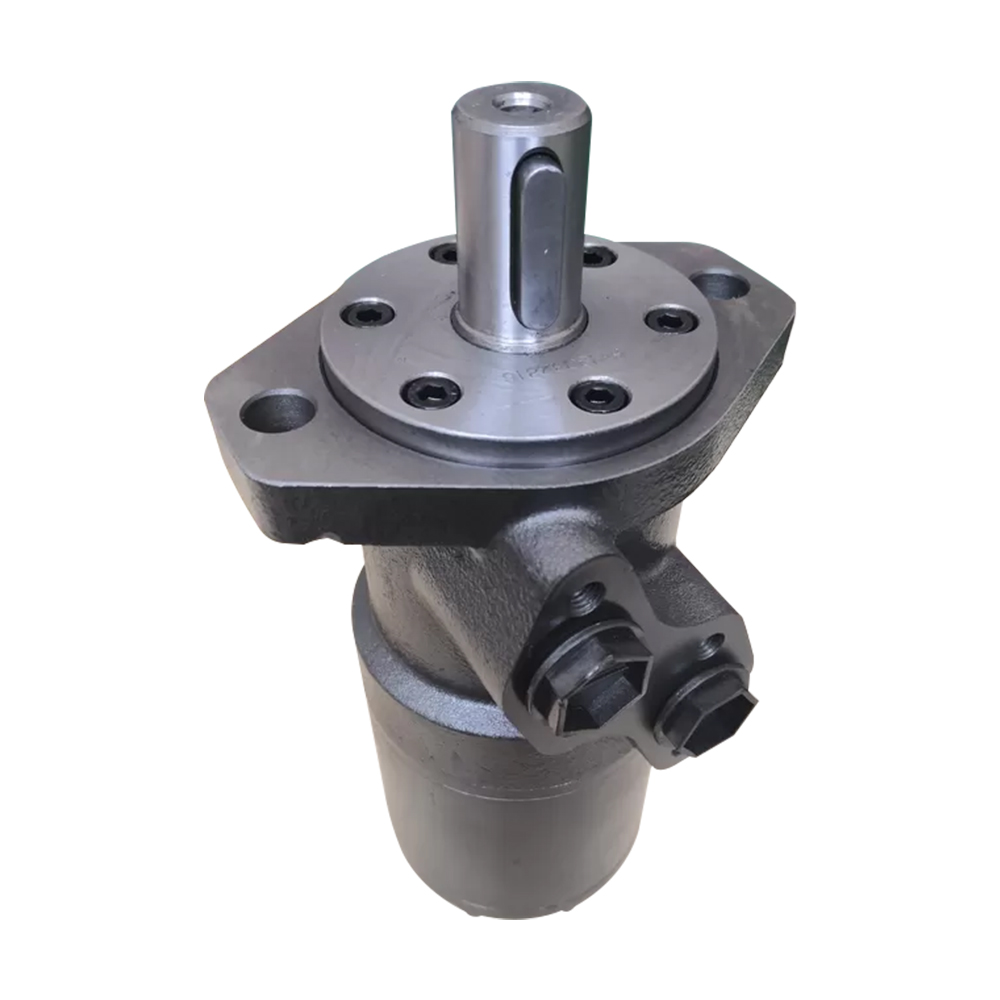

Hydraulic Orbital Gerotor Motor OMP400 , MP400 , BMP400 Hydraulic
BMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.
Characteristic Features:
* Orbital hydraulic motors BMP are medium size motors which have compact and light construction.
* Shaft seal can bear high pressure of motor of which can be used in parallel or series.
* Advanced construction design, high power and low weight.
Main Specifications:
Technical data for BMP with 31.75 and 32 shaftt:
| Type | BMP BMPH 36 | BMP BMPH 50 | BMP BMPH 80 | BMP BMPH 100 | BMP BMPH 125 | BMP BMPH 160 | BMP BMPH 200 | BMP BMPH 250 | BMP BMPH 315 | BMP BMPH 400 | BMP BMPH 500 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. speed (rpm) | cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. torque (N·m) | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 460 | 475 | 490 | 430 |
| int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 570 | 555 | 580 | 560 | |
| peak | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 670 | 840 | 840 | 780 | |
| Max. output (kW) | cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 6 |
| int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 7 | |
| Max. pressure drop (MPa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 9.5 | 7 |
| int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 11.5 | 9 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 13 | |
| Max. flow (L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 5.6 | 6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

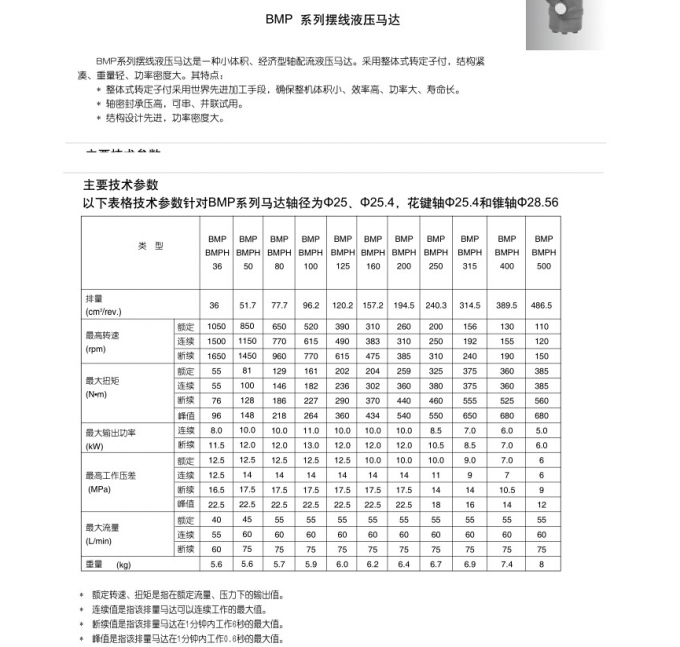

| 类 型 | BMP BMPH 36 | BMP BMPH 50 | BMP BMPH 80 | BMP BMPH 100 | BMP BMPH 125 | BMP BMPH 160 | BMP BMPH 200 | BMP BMPH 250 | BMP BMPH 315 | BMP BMPH 400 | BMP BMPH 500 | |
| 排量 (cm3/rev.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| 最高转速 (rpm) | 额定 | 1050 | 850 | 650 | 520 | 390 | 310 | 260 | 200 | 156 | 130 | 110 |
| 连续 | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 | |
| 断续 | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| 最大扭矩 (N·m) | 额定 | 55 | 81 | 129 | 161 | 202 | 204 | 259 | 325 | 375 | 360 | 385 |
| 连续 | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 | |
| 断续 | 76 | 126 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| 峰值 | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| 最大输出功率 (kW) | 连续 | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| 断续 | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| 最高工作压差 (MPa) | 额定 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 10 | 10 | 10 | 9 | 7 | 6 |
| 连续 | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 | |
| 断续 | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| 峰值 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| 最大流量 | 额定 | 40 | 45 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| (L/min) | 连续 | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| 断续 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| 重量 (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.7 | 6.9 | 7.4 | 8 | |

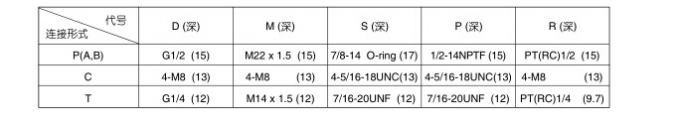

| 连接形式 代号 | D (深) | M (深) | S (深) | P (深) | R (深) |
| P(A,B) | G1/2（15） | M22 x 1.5（15） | 7/8-14 O-ring (17) | 1/2-14NPTF (15) | PT(RC)1/2（15） |
| C | 4-M8（13） | 4-M8 （13） | 4-5/16-18UNC(13) | 4-5/16-18UNC(13) | 4-M8 （13） |
| T | G1/4（12） | M14 x 1.5 (12) | 7/16-20UNF (12) | 7/16-20UNF (12) | PT(RC)1/4 （9.7） |

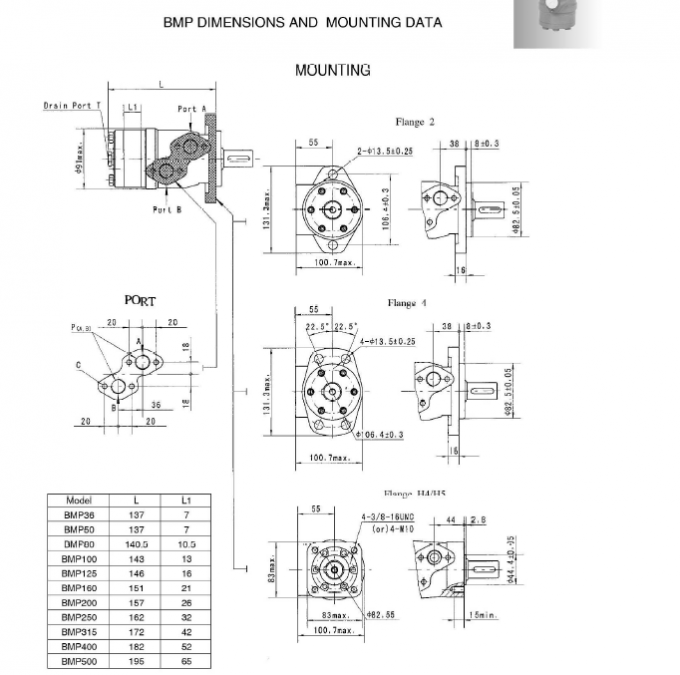

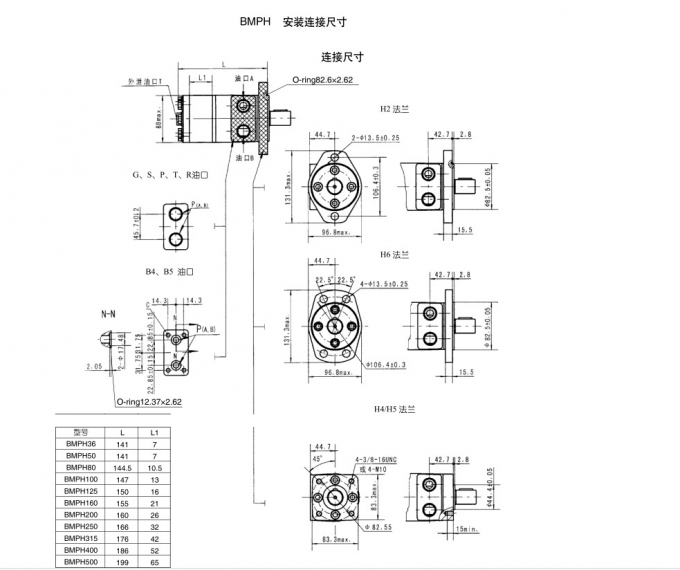

| 型号 | L | L1 |
| BMPH36 | 141 | 7 |
| BMPH50 | 141 | 7 |
| BMPH80 | 144.5 | 10.5 |
| BMPH100 | 147 | 13 |
| BMPH125 | 150 | 16 |
| BMPH160 | 155 | 21 |
| BMPH200 | 160 | 26 |
| BMPH250 | 166 | 32 |
| BMPH315 | 176 | 42 |
| BMPH400 | 186 | 52 |
| BMPH500 | 199 | 65 |
