| Quantity: | |
|---|---|
OK-50
Xeriwell or Others
| Product Name: | Hydraulic Orbital Motors | Displacement: | 36cc,50cc,80cc,100cc,125cc,160cc......500cc |
|---|---|---|---|
| Max.speed: | 780rpm | Max.torque: | Peak 270 N.M |
| Max.flow: | Cont 60/int.75 L/min | Warranty: | 12months |
| Highlight: | 50cc Hydraulic Orbit Motors,25.4mm Key Shaft Orbit Motor,Orbit Motor With BSPP Ports G1/2 | ||

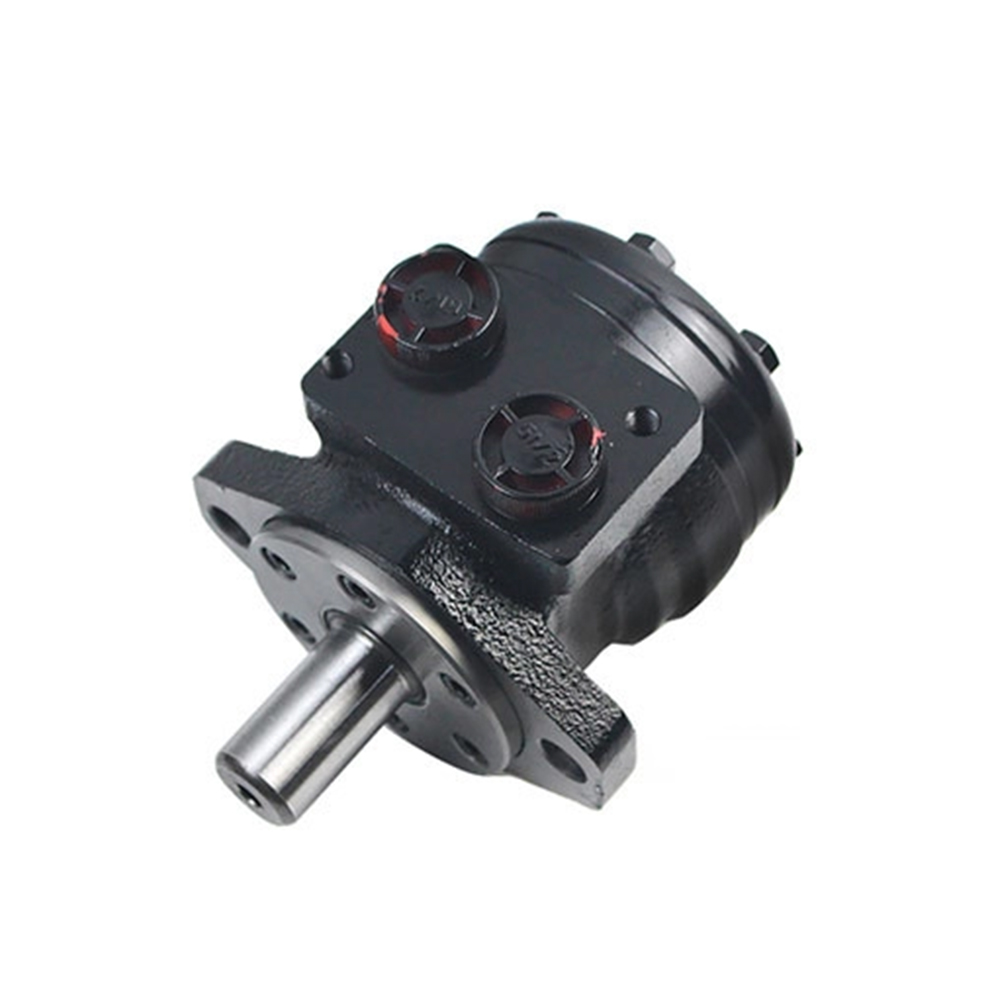

hydraulic orbit motors OK Series motor, 50cc, 25.4mm key shaft, with BSPP ports G1/2
OK series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
Product details:
| product type | OK motors |
| displacement | 50cc |
| flange | 2-φ13.5 Rhomb-flange pilot φ82.5x6.2 |
| shaft | 25mm key shaft |
| oil ports | G1/2 manifold mount 4-M8,G1/4 |
Main Specifications:
Technical data for OK with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Code | Displacement/ [cm/rev] | Max.Speed/ [rpm] | Max.Torque/[Nm] | Max.output/[kW] | Max.pressure/[MPa] | Max.Oil Flow[L/min] | |||
| cont. | cont. | int. | cont. | int. | cont. | int. | cont. | ||
| OK 36 | 36 | 1111 | 66 | 83 | 9 | 10.4 | 14 | 17.5 | 40 |
| OK 50 | 51.7 | 780 | 100 | 129 | 9 | 10.4 | 14 | 17.5 | 40 |
| OK 80 | 81.5 | 744 | 158 | 196 | 10.4 | 12.6 | 14 | 17.5 | 60 |
| OK 100 | 102 | 595 | 200 | 242 | 10.8 | 12.8 | 14 | 17.5 | 60 |
| OK 125 | 127.2 | 480 | 248 | 298 | 10.8 | 12.5 | 14 | 17.5 | 60 |
| OK 160 | 157.2 | 382 | 315 | 384 | 10.4 | 11.5 | 14 | 17.5 | 60 |
| OK 200 | 194.5 | 301 | 339 | 419 | 8.8 | 10.2 | 12.5 | 15.5 | 60 |
| OK 250 | 253.3 | 238 | 403 | 474 | 8.1 | 9.4 | 11 | 14 | 60 |
| OK 315 | 317.5 | 191 | 398 | 498 | 7.4 | 7.8 | 9 | 12.5 | 60 |
| OK 375 | 381.4 | 162 | 373 | 466 | 6.2 | 7.1 | 7.5 | 9 | 60 |
| Product Name: | Hydraulic Orbital Motors | Displacement: | 36cc,50cc,80cc,100cc,125cc,160cc......500cc |
|---|---|---|---|
| Max.speed: | 780rpm | Max.torque: | Peak 270 N.M |
| Max.flow: | Cont 60/int.75 L/min | Warranty: | 12months |
| Highlight: | 50cc Hydraulic Orbit Motors,25.4mm Key Shaft Orbit Motor,Orbit Motor With BSPP Ports G1/2 | ||
hydraulic orbit motors OK Series motor, 50cc, 25.4mm key shaft, with BSPP ports G1/2
OK series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
Product details:
| product type | OK motors |
| displacement | 50cc |
| flange | 2-φ13.5 Rhomb-flange pilot φ82.5x6.2 |
| shaft | 25mm key shaft |
| oil ports | G1/2 manifold mount 4-M8,G1/4 |
Main Specifications:
Technical data for OK with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Code | Displacement/ [cm/rev] | Max.Speed/ [rpm] | Max.Torque/[Nm] | Max.output/[kW] | Max.pressure/[MPa] | Max.Oil Flow[L/min] | |||
| cont. | cont. | int. | cont. | int. | cont. | int. | cont. | ||
| OK 36 | 36 | 1111 | 66 | 83 | 9 | 10.4 | 14 | 17.5 | 40 |
| OK 50 | 51.7 | 780 | 100 | 129 | 9 | 10.4 | 14 | 17.5 | 40 |
| OK 80 | 81.5 | 744 | 158 | 196 | 10.4 | 12.6 | 14 | 17.5 | 60 |
| OK 100 | 102 | 595 | 200 | 242 | 10.8 | 12.8 | 14 | 17.5 | 60 |
| OK 125 | 127.2 | 480 | 248 | 298 | 10.8 | 12.5 | 14 | 17.5 | 60 |
| OK 160 | 157.2 | 382 | 315 | 384 | 10.4 | 11.5 | 14 | 17.5 | 60 |
| OK 200 | 194.5 | 301 | 339 | 419 | 8.8 | 10.2 | 12.5 | 15.5 | 60 |
| OK 250 | 253.3 | 238 | 403 | 474 | 8.1 | 9.4 | 11 | 14 | 60 |
| OK 315 | 317.5 | 191 | 398 | 498 | 7.4 | 7.8 | 9 | 12.5 | 60 |
| OK 375 | 381.4 | 162 | 373 | 466 | 6.2 | 7.1 | 7.5 | 9 | 60 |
